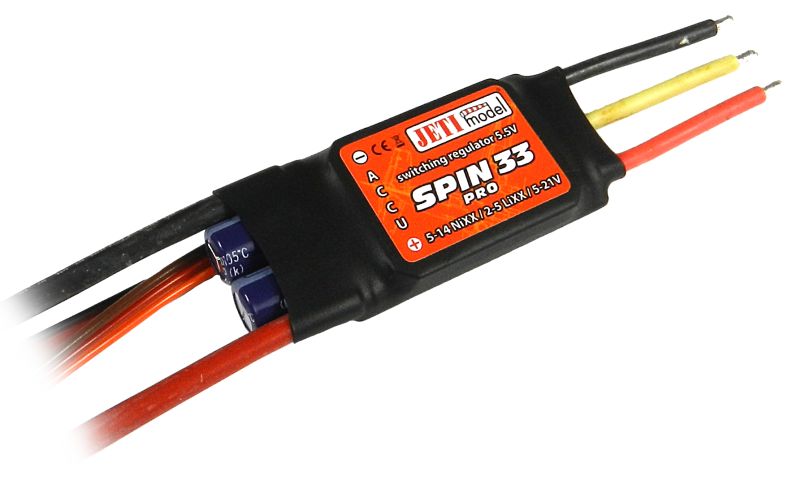

Jeti JSP-33 SPIN 33 PRO
828 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: JSP-33
Description
SPIN pro controller include a new type of voltage stabilizer for receiver and servos, the so called switching BEC with an output voltage of 5.5 V. The use of this feature opens the way to the use of BEC for models operating at higher voltages. A significant factor is that the BEC circuit maintains its full current capability right up to the maximum voltage.
Parameters
| Weight [g] | 32 |
|---|---|
| Dimensions [mm] | 42 x 23 x 7 |
| Sustained current [A] | 33 |
| Supply Voltage [V] | 5 to 21 |
| Batteries LiXX | 2 to 5 |
| Max. Current BEC [A] | 3 |
| OPTO (optically separated radio signal from the power management) | No |
| Voltage BEC [V] | 5.5 |
| Telemetry | No |
| Operational temperature [°C] | -10 to 85 |
| Max. number of servos | 7 |
| Resistance in conducting state [mΩ] | 2 x 2.60 |
| Number of power transistors | 18 |
| Cable crossection (input/output) [mm²] | 2.5 / 1.5 |
| Input capacitance [µF] | 2 x 220 |
| Batteries NiXX | 5 ... 14 |
- VarumärkeJeti
