Jeti JEX-MF2T-800 MFlow2 Turbine 800
2 395 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: JEX-MF2T-800
Description
The MFlow2 Turbine 800 is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. The MFlow2-Turbine is a variant designed for the models powered by a jet engine, with consumption up to 800ml/min.
Main features
- The sensor is compatible with Duplex EX system.
- EX telemetry values: actual flow and the amount of the fuel in the tank.
- User adjustable parameters, such as tank capacity, depleted fuel alarm, etc.
- Firmware updates.

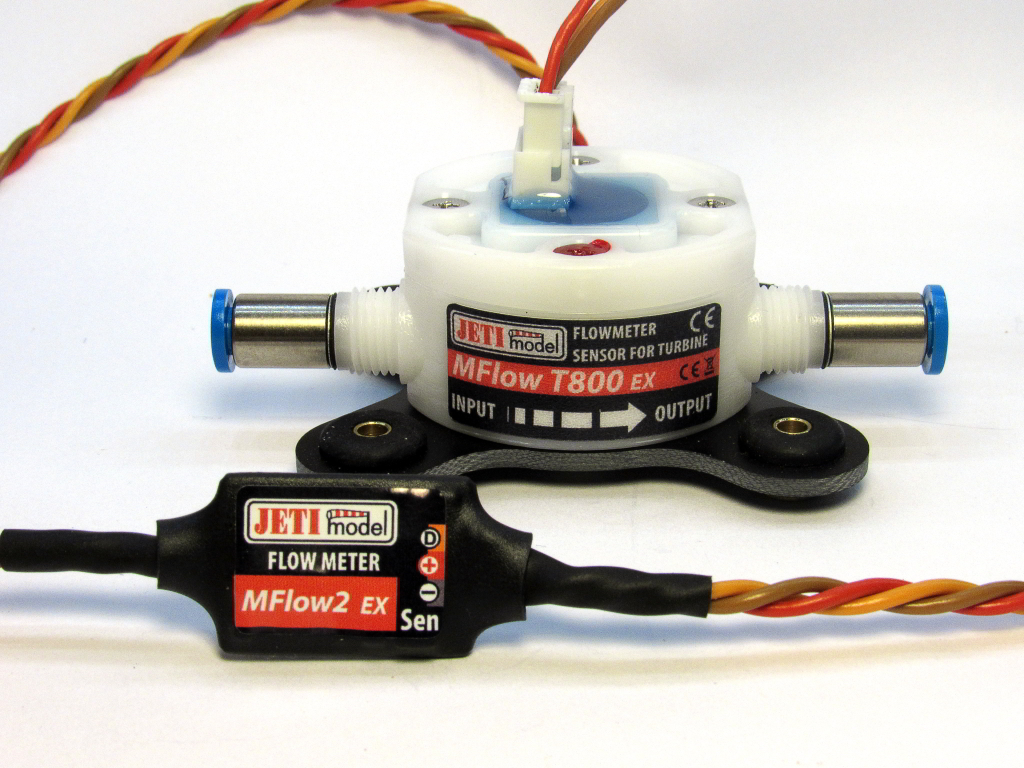

MFlow2 consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type:
MFlow2 T800: 2x FESTO for tubes with the external diameter of 4mm
Parameters
| Weight [g] | 40 |
|---|---|
| Dimensions [mm] | 77 x 41 x 30 |
| Operational temperature [°C] | -20 to 80 |
| Supply Voltage [V] | 5 to 8.4 |
| Average Current [mA] | 20 |
| Measurement range | 20-800 ml/min |
| Measurement accuracy | ±2% |
| Tubing connection | 2xFesto Ø4mm |
