Beskrivning
Art.nr: J-MB2
Description

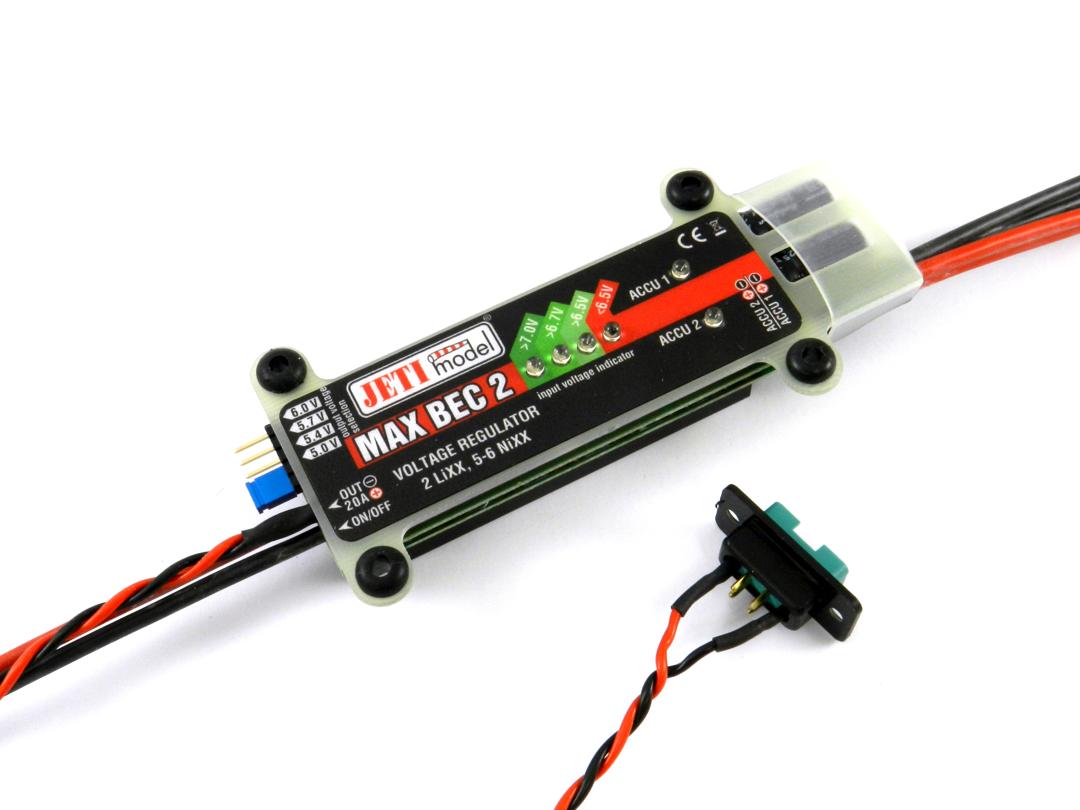

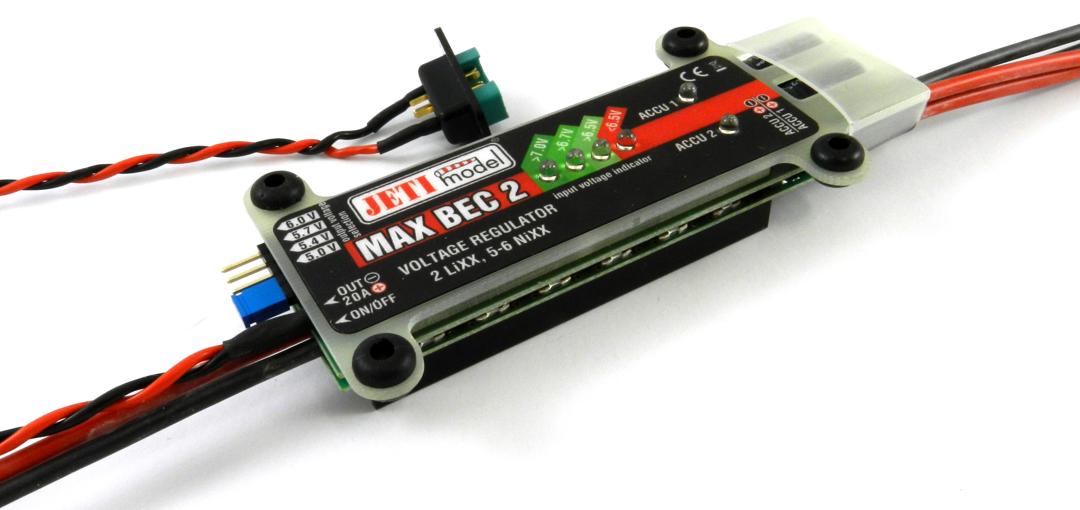

MAX BEC 2 is designed to power the receiver and servos in the model. MAX BEC 2 is a linear voltage stabilizer with an adjustable output voltage. The output voltage is set using a jumper and in one of four positions: 5.0V, 5.4V, 5.7V or 6.0V. MAX BEC 2 can be powered using NiXX and Li–XX cells. MAX BEC also gives an indication of used capacity of the battery with four LED´s.
An integral part of the MAX BEC 2 is an electronic switch that uses a highly efficient type of MOSFET transistor. The main benefits of the MAX BEC 2 include a high voltage rating (to 12 cells NiXX) and low current in the off state (170 μA). The analog voltage stabilization does not contribute to radio interference.
Parameters
| Weight [g] | 85 |
|---|---|
| Dimensions [mm] | 100 x 29 x 16 |
| Sustained current [A] | 12 |
| Peak current (max 30s) [A] | 20 |
| Telemetry | No |
| Operational temperature [°C] | -10 to 130 |
| Recommended input voltage [V] | 5.5 to 8.4 |
| Output voltage [V] | 5.0 / 5.4 / 5.7 / 6.0 |
| Idle current [µA] | 170 |
| Max. power loss [W] | 20 |
| Number of battery inputs | 2 |
| Input voltage max. [V] | 16 |
