Beskrivning
Art.nr: J-CB-210-RS
Description

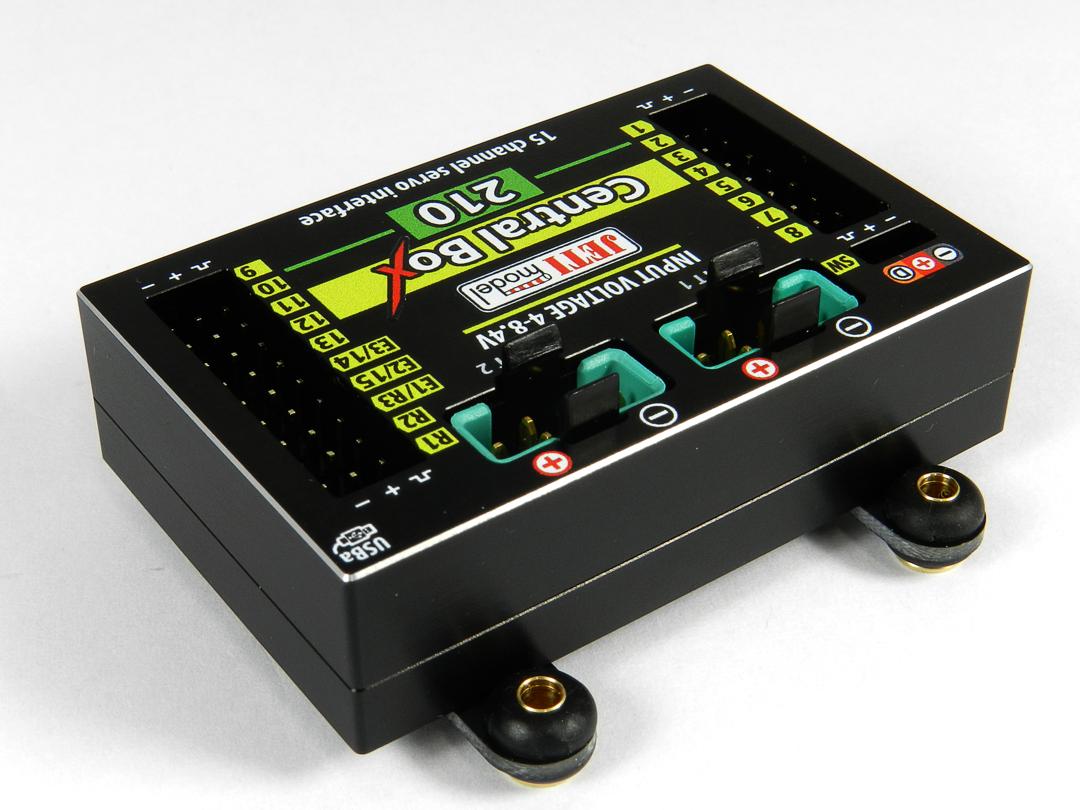

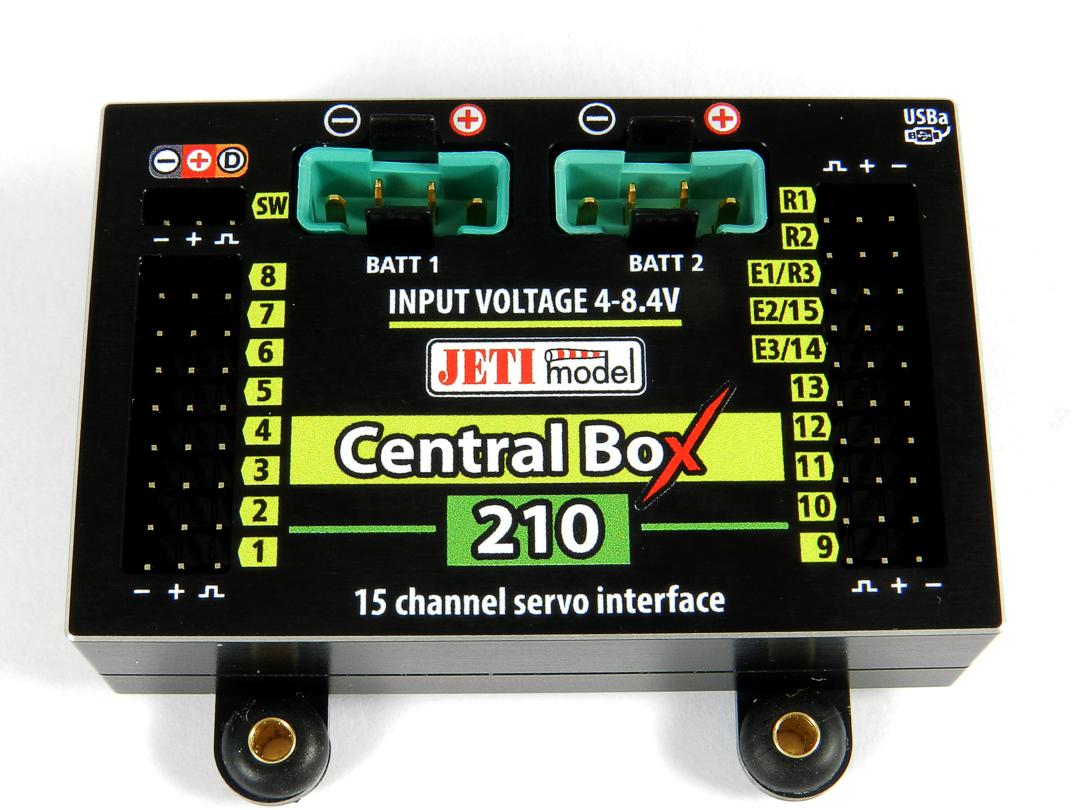

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.
The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box 210 offers maximal unreduced power for each servo (servo outputs do not have overload protection). The Central Box can manage up to two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial (PPM, EX Bus, S.BUS, UDI) output can be connected to the Central Box 210. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
Attributes
- Central Box 210 has unreduced power for each servo (without fuses)
- Support of DITEX telemetry servos
- Possibility to connect up to 3 receivers with serial interface
- Built-in Expander function for up to 3 sensors
- Input for magnetic switch or RC switch
- 2x MPX battery input connectors
- 100Hz mode of servo outputs (10ms period)
- Supports EX telemetry (voltage, current, capacity, temperature measurement, …)
Parameters
| Weight [g] | 65 |
|---|---|
| Dimensions [mm] | 66 x 42 x 18 |
| Sustained current [A] | 20 |
| Number of channels | 15 |
| Telemetry | Yes |
| Operational temperature [°C] | -20 to 85 |
| Compatible protocols | EX Bus, PPM, S.Bus, UDI |
| Supply Voltage [V] | 4 to 8.4 |
| Satellite receiver support | Yes |
| Batteries LiXX | 2 |
| Idle current [µA] | 240 |
| Number of battery inputs | 2 |
| Voltage stabilization | No |

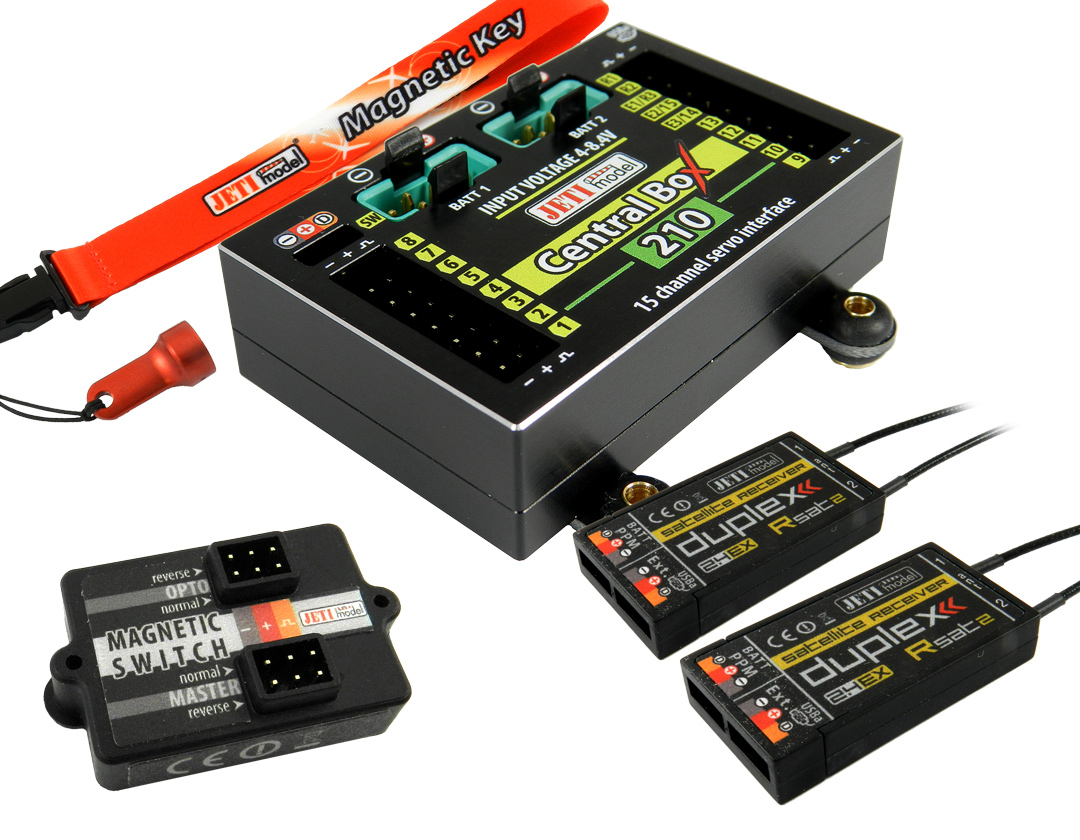

| Packaging | Magnetic switch, Magnetic key, 2x Rsat2 |
| Protected servo output | No |
