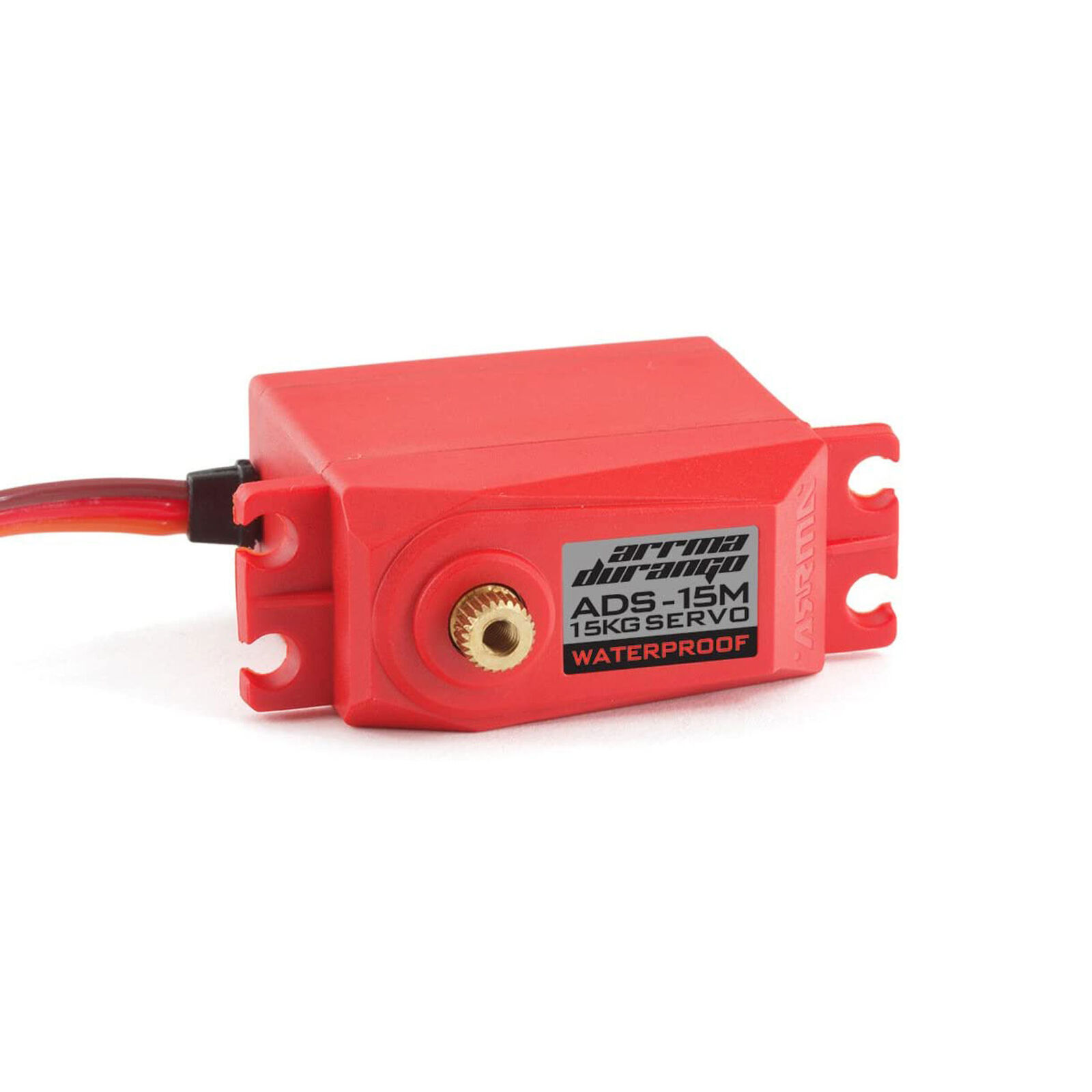

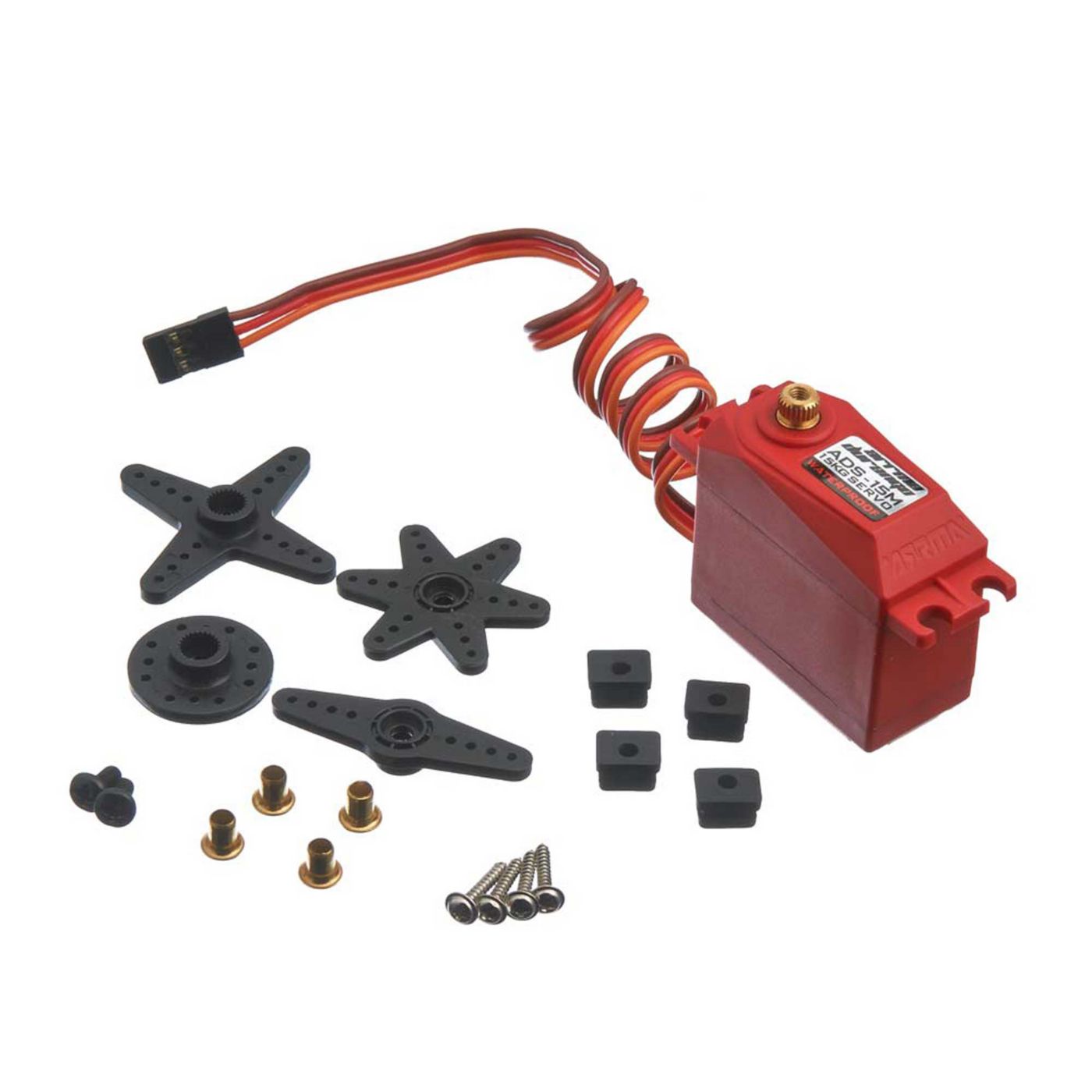

Arrma AR390139 ADS-15M V2 15kg Waterproof Servo Red
718 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: ARAM1025
The ADS-15M V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.
Specification:
Case – Red, Water-proof & dust-proof
Bearing – Dual ball bearing
Connector – ‘Futaba style’ 3 pin connector
Gears – Metal
Spline – 25 Tooth
Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size
Wire length: 300mm
Torque – ADS-15M: 15kg-cm (208oz-inch) at 7.2V, 14kg-cm (195oz-in) at 6.0V
Speed – 0.14 sec/60 deg at 7.2V, 0.16 sec/60 deg at 6.0V
Signal – Analogue
Product Specifications
| Manufacturer # | AR390139 |
| Servo Operating Voltage | 6.0 - 7.4V (HV) |
| Connector Wire Length | 11.8" (300 mm) |
| Product Width | 0.78" (20 mm) |
| Connector Type | Universal |
| Maximum Servo Speed | 0.16 sec/60 deg @ 6.0V, 0.14 sec/60 deg @ 7.2V |
| Product Length | 1.57" (40 mm) |
| Input Voltage | 6.0V ~ 7.2V |
| Product Height | 1.48" (38 mm) |
| Servo Type | Analog |
| Bearing | Dual Ball Dearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Programmable | No |
| Servo Size Category | Standard |
| Maximum Servo Torque | 195 oz/in (14 kg/cm) @ 6.0V, 208 oz/in (15 kg/cm) @ 7.2V |
| Application | Cars, Trucks |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
