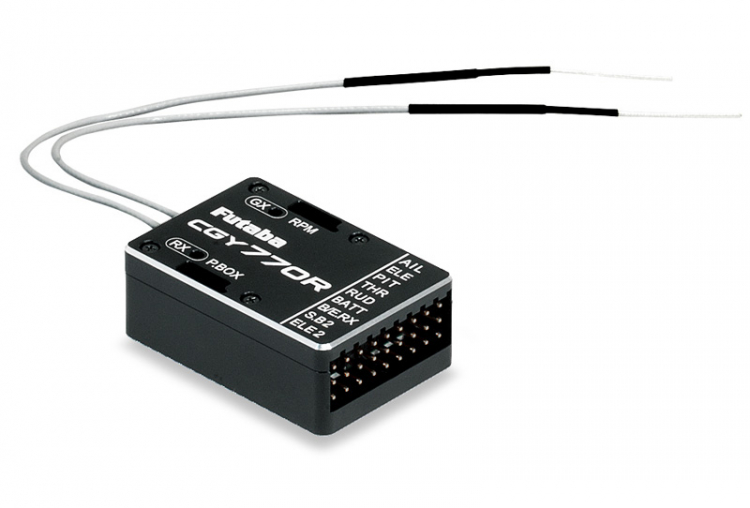

Futaba FPCGY770R CGY770R Gyro FASSTest/T-FHSS Air Mottagare

Futaba CGY770R -  Equipped with new system [UR mode]! Receiver, built-in governor, 3-axis gyro for helicopters

CGY770R is a 3-axis gyro for helicopters that is equipped with a new system [UR mode] and has a receiver and governor integrated with a wireless tuning function.

System that integrates receiver, 3-axis gyro function, and governor function.

• The CGY770R replaces the CGY760R.

Features:

• Gyro can also be operated independently
• Gyro and governor both use the fastest control method
• Small, low profile, lightweight
• Can be set using GPB-1 (gyro program box) *When using GPB-1 with CGY770R, it is necessary to update to Ver.5.0 or later.
• S.BUS2 system compatible
• Receiver/gyro/governor integrated
• Equipped with Dual Rx Link system
• Equipped with sensor response adjustment function
• Addition of wireless setting items
• Gyro adjustment menu P, I, and D gains can be adjusted on one screen
• *GPB-1 setting screen
• Compatible with new system UR (Ultra Response) mode
• In combination with a servo compatible with helicopter UR mode, faster response can be obtained.
• Also, servo update of HPS-HC701 and HPS-HT700 is required. Compatible with Ver.2.0 or later.

*To use UR mode, please use HPS-HC701 or HPS-HT700. *As of 2024/3/15

Setting items are divided into basic and expert menus

• Basic settings can be made in the basic menu
• Detailed settings can be made in the expert menu

What is UR mode?

• UR mode is a system installed in the high-end car transmitter [T10PX].
• This is Futaba's fastest system, recognized by many top drivers.
• You can experience the proven fastest system, UR mode, in a helicopter.
• *UR servos for cars cannot be used.

Specs:

• 3-axis gyro for helicopters with integrated receiver and governor
• Control method: Digital advance control
• Angular velocity detection method: Vibration gyro sensor
• Angle range: ±1,000°/sec
• Rotation speed detection method: Engine rotation direct detection by magnetic sensor
• Control resolution: 0.1 Hz (± 6 rpm: engine rotation speed)
• Rotation speed stability accuracy: within ± 1%
• Control rotation speed range: 700 to 4,000 rpm (rotor rotation speed)
• Antenna: Diversity method
• Rated power supply voltage range: DC 3.7 V to 7.4 V *(Usable voltage range: 3.5 V to 8.4 V)
• Current consumption: 85 mA (when receiving, no servo, no RPM sensor)
• Operating temperature range: -10 to +45℃
• Operating humidity range: 10 to 90%RH (no condensation)
• Dimensions: 39.2x27.0x15.0mm
• Weight: 22.3g

Reception system:

• FASSTest-2.4 GHz (18 CH/12 CH mode)
• T-FHSS-Air-2.4 GHz method, S.BUS2 input/output + output for conventional system (CH1-6)
