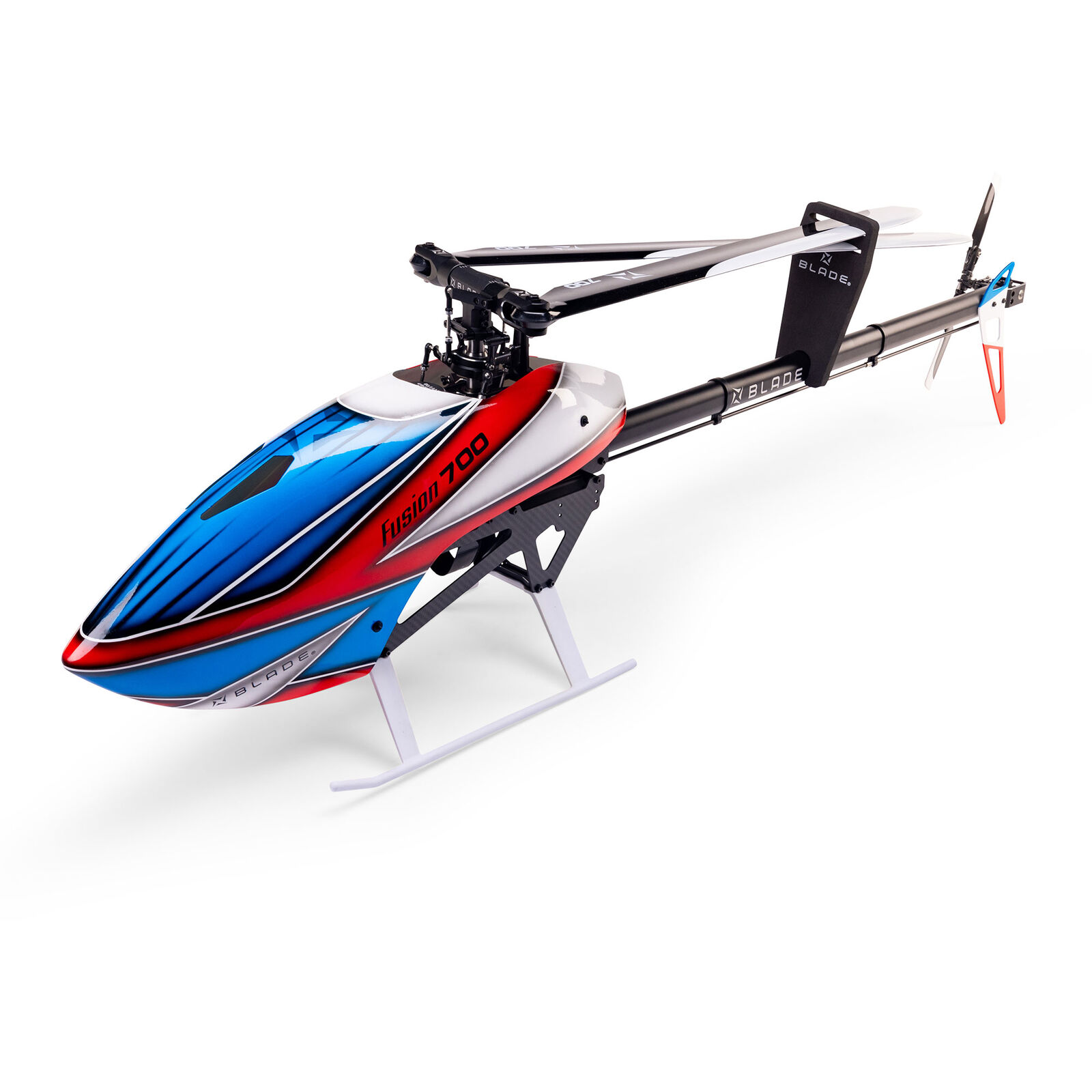

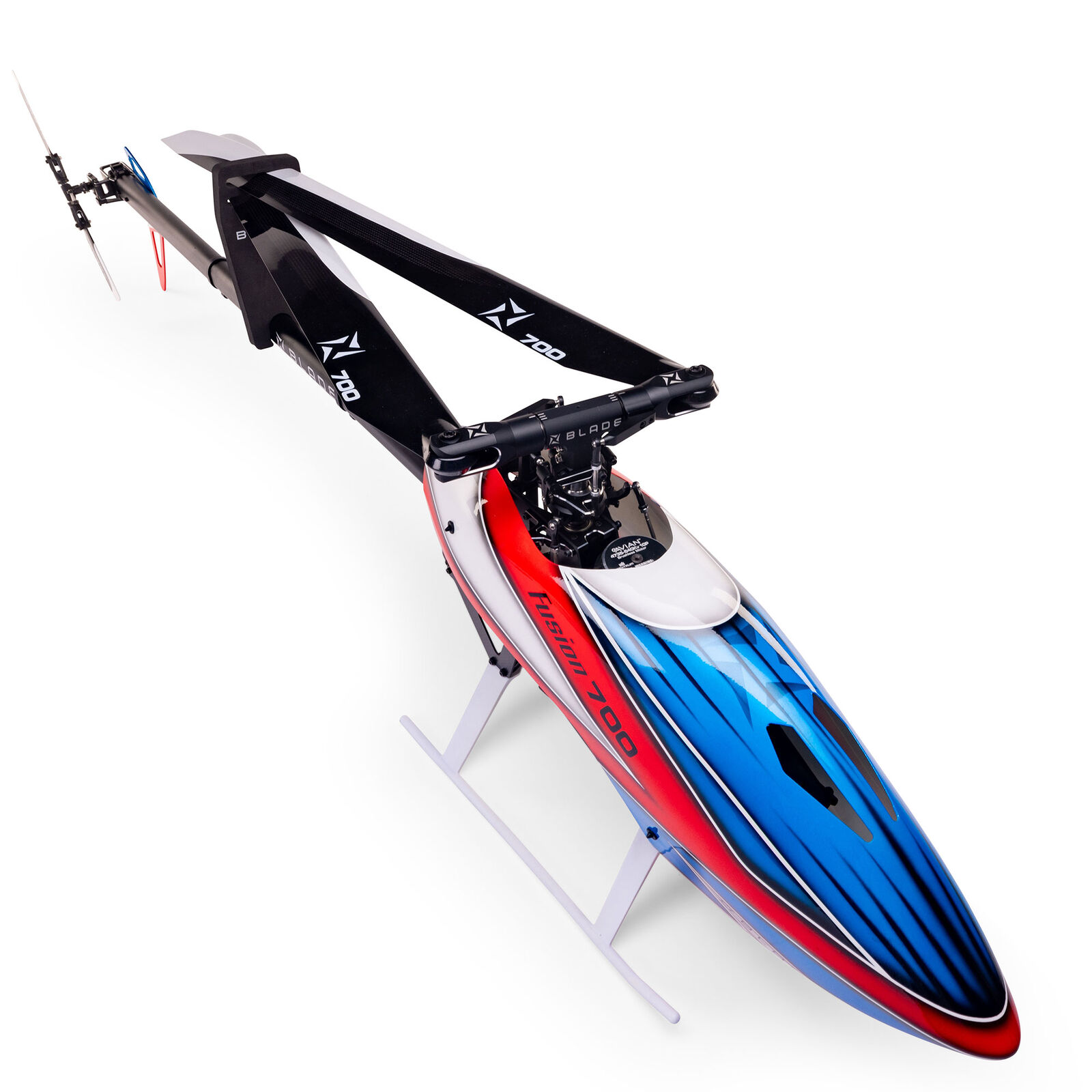

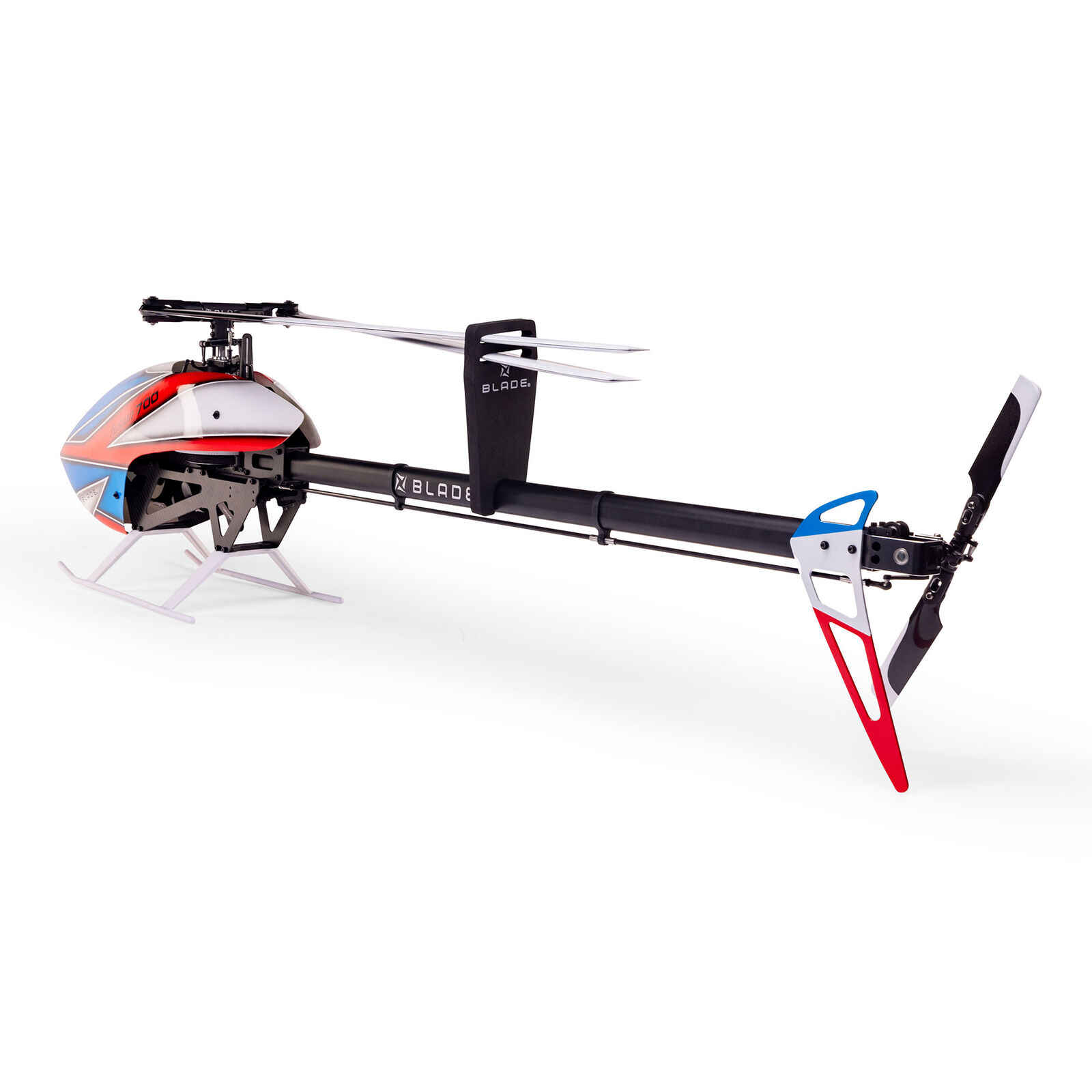

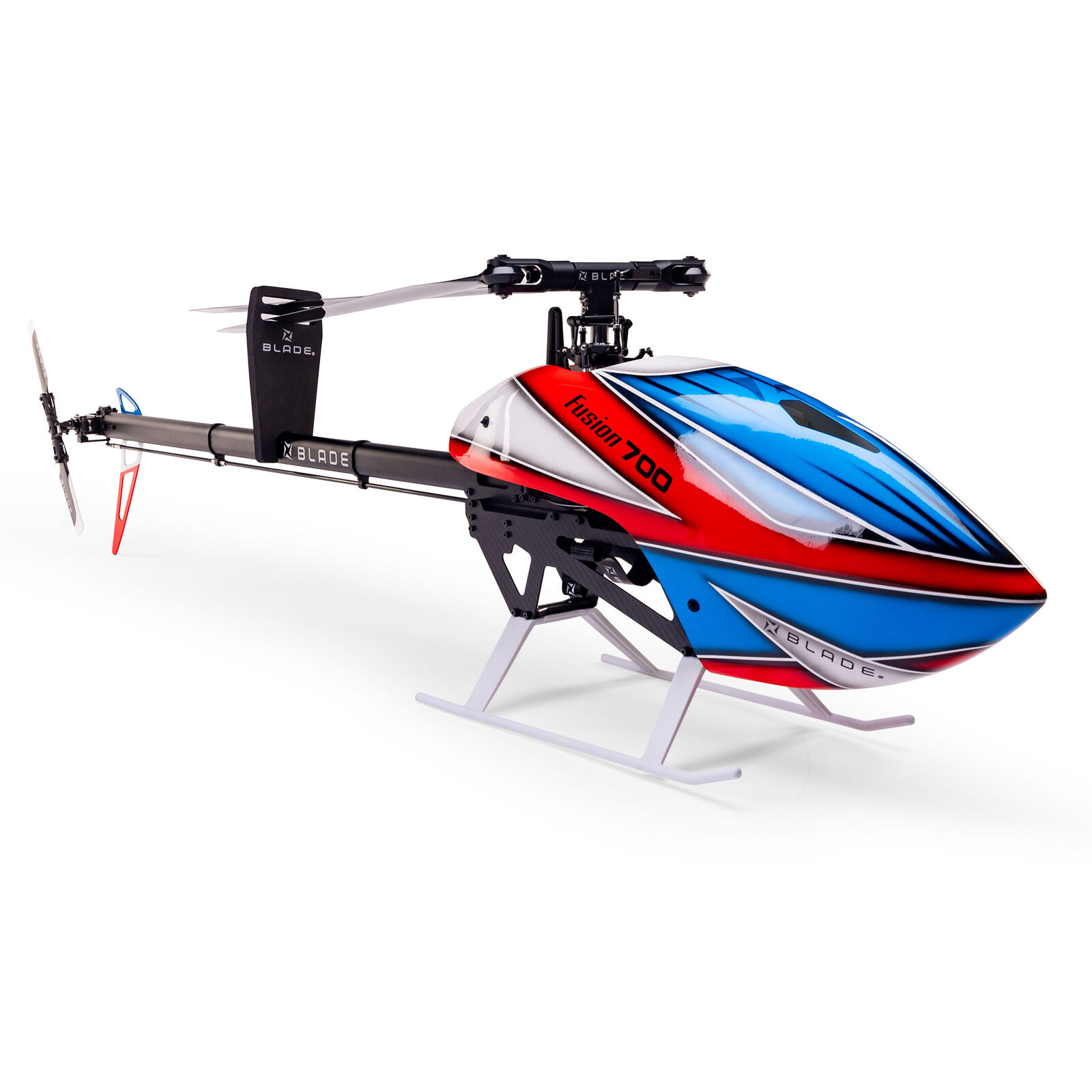

Blade Fusion 700 Kit High Performance Super Combo
Blade Fusion 700 Kit High Performance Super Combo
Blade Fusion 700 Kit High Performance Super Combo - 2
Blade Fusion 700 Kit High Performance Super Combo - 3

Blade Fusion 700 Kit High Performance Super Combo

23 995 SEK/styck
Lägg till i favoritlistan
Läs mer...

  • Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
  • Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303

* Vi kan vara upptagna, ring igen om vi inte svarar!

Beskrivning

Art.nr: BLH13075HPC

Product Details


The Fusion 700 delivers the pinnacle of Blade helicopter performance along with a perfect fusion of convenience and value with the included blades and motor.
Key Features
  • An all-new design to offer the perfect fusion of convenience, performance, and value
  • Includes carbon fiber 700mm main rotor and 105mm tail rotor blades
  • Includes a 4735-540Kv brushless outrunner motor that delivers incredible torque and power
  • Compatible with popular and common 12S 4000–5000mAh LiPo battery setups
  • This High Power Super Combo also includes top-of-the-line Spektrum components

In The Box

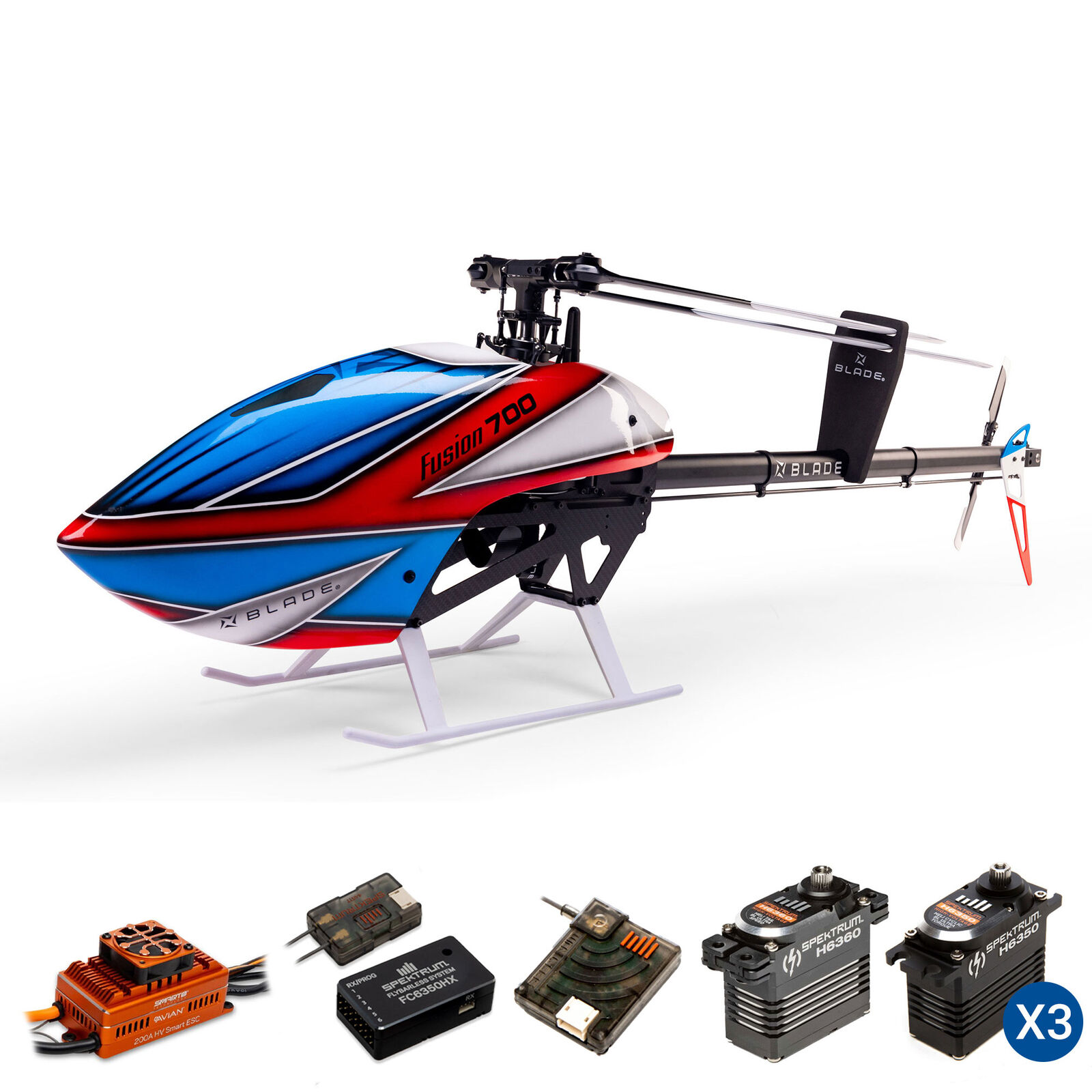

  • (1) Blade Fusion 700 Helicopter Kit

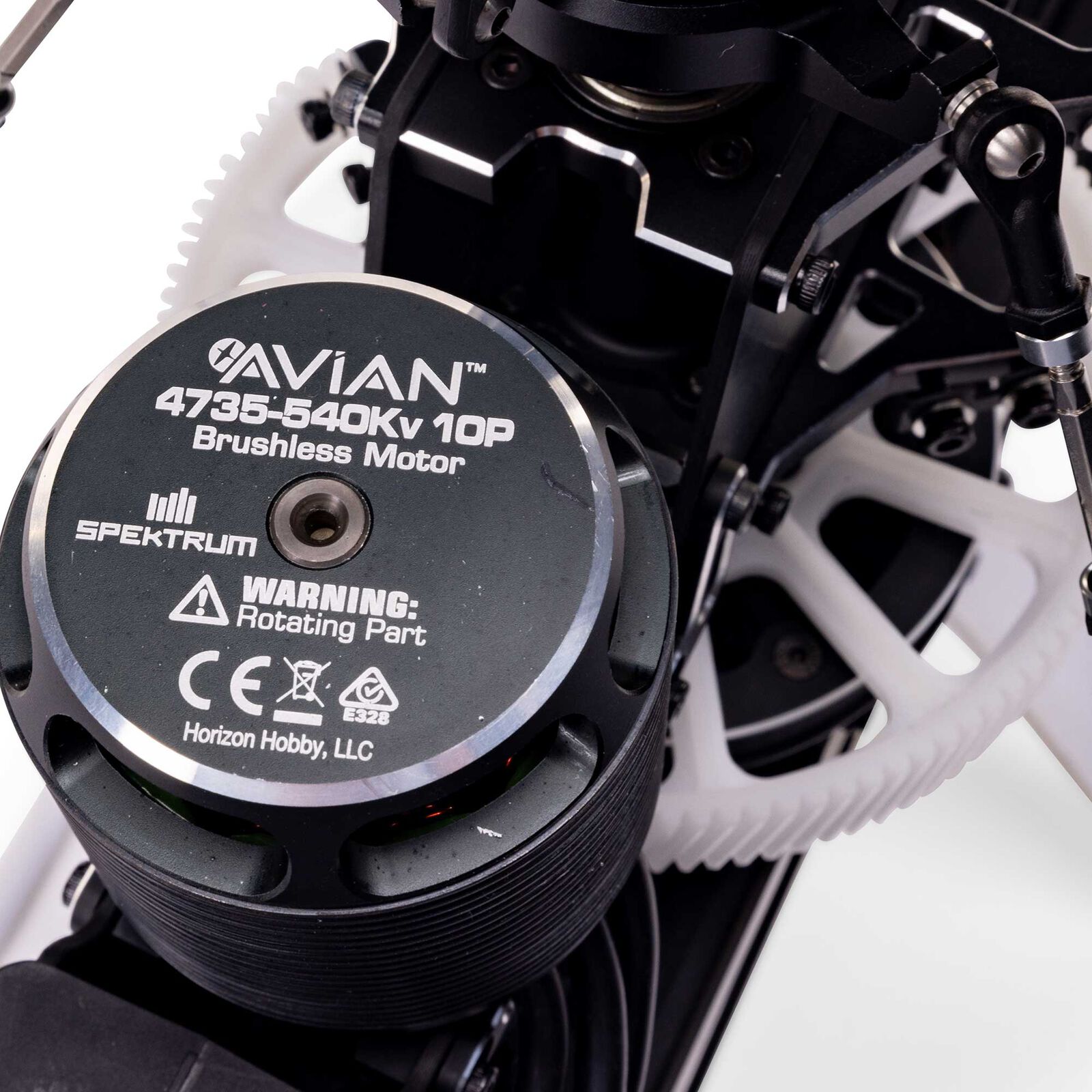

  • (1) Spektrum Avian 4735-540Kv 10-Pole Brushless Outrunner Motor (included)
  • (1) Blade 700mm Carbon Fiber Main Rotor Blade Set (included)
  • (1) Blade 105mm Carbon Fiber Tail Rotor Blade Set (included)
  • (1) Foam Blade Holder (included)
  • (1) Blade Fusion 700 Kit Manual
  • (3) Spektrum H6350 Ultra Torque High Speed Heli Cyclic HV Servos (SPMSH6350)
  • (1) Spektrum H6360 Mid Torque Ultra Speed Heli Tail HV Servo (SPMSH6360)
  • (1) Spektrum Avian 200A HV Smart Brushless ESC 6S-14S (SPMXAE1200HV)
  • (1) Spektrum FC6350HX Helicopter Flybarless Control System (SPMFC6350HX)
  • (1) Spektrum DSMX Remote Receiver (SPM9745)

Needed to Complete
  • (1) Full-range 6+ channel Spektrum DSMX®/DSM2® compatible computer transmitter
  • (2) 6S 22.2V or (1) 12S 44.4V 4000–5000mAh LiPo battery with EC5 or IC5 Connector
  • (1) Compatible Lipo Charger
Fusion 700 Kit High Performance Super Combo

TAKE IT TO THE TOP

Like the Fusion series models that came before it and are still available with spare parts support since 2018, the top-of-the-line Blade® Fusion 700 blends the lines between convenience and capabilities, plus quality and value. The extremely strong carbon fiber and aluminum airframe is ready to pair with the included blades and motor, and popular 12S battery setups, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a 700-sized helicopter with cutting-edge capabilities – along with incredible durability and reliability – a reality!

THE PINNACLE OF PERFORMANCE

Designed with nearly two decades of engineering and development experience, the Fusion 700 offers the pinnacle of Blade helicopter performance. It packs modern-day high-performance features into a high-quality, rugged, and reliable airframe that’s ready to deliver pro-level flight performance for sport, precision, and aggressive 3D flying. The extremely durable carbon fiber and aluminum airframe design assembles quickly, plus it’s easy to maintain and repair. The Delrin® helical main gear is driven by the included 4735-540Kv brushless outrunner motor that delivers incredible torque and performance with popular 12S or two pieces of 6S 4000-5000mAh LiPo battery setups. A belt-driven tail assembly featuring machined aluminum construction ensures locked-in tail performance on every flight. So whether you’re an intermediate pilot moving up to your first-ever 700-sized model, or you’re already a world-class 3D pilot, the Fusion 700 delivers an unmatched combination of convenience, capabilities, quality, and value!

The Fusion 700 is available as a kit that includes the motor plus carbon fiber 700mm main rotor and 105mm tail rotor blades that you can complete with the ESC, servos, flight controller, and receiver you choose. It’s also available in two money-saving Super Combos that include top-of-the-line Spektrum components including H6350 and H6360 brushless servos, an updated and upgraded FC6350HX flybarless control system, a DSMX compatible receiver, and your choice of a 120-amp or 200-amp high voltage Smart ESC. Both combos are compatible with 12S 4000-5000mAh battery setups, and the 120A ESC version is a great choice for almost everyone including those who will be performing 3D aerobatics. And the 200A ESC version offers plenty of headroom for world-class pilots who perform the most aggressive 3D maneuvers possible!

An optional 4730-350Kv motor, along with different tooth count tail drive pulleys and longer 115mm tail rotor blades, are available separately for those who prefer scale, sport, and low head speed 3D (LH3D) style flying with longer flight times. There’s also an optional orange-painted canopy plus carbon fiber tail fin and black landing gear available for those who prefer a different look.

In addition to offering combos and optional parts that allow you to equip and customize the Fusion 700 the way you like, we also know how important spare parts support and long-term availability are. The full line of spare parts for the Fusion 700 are competitively priced and, along with the helicopter itself, will be available for many years to come – just like the Fusion 360, 480, and 550 helicopters and parts have been since as far back as 2018.

Blade Fusion 700 RC Helicopter Kit Video

Blade Fusion 700 RC Helicopter Kit Features

  • Extremely strong and durable carbon fiber and aluminum airframe design
  • High-strength steel 15mm main shaft and 10mm spindle with metal head components

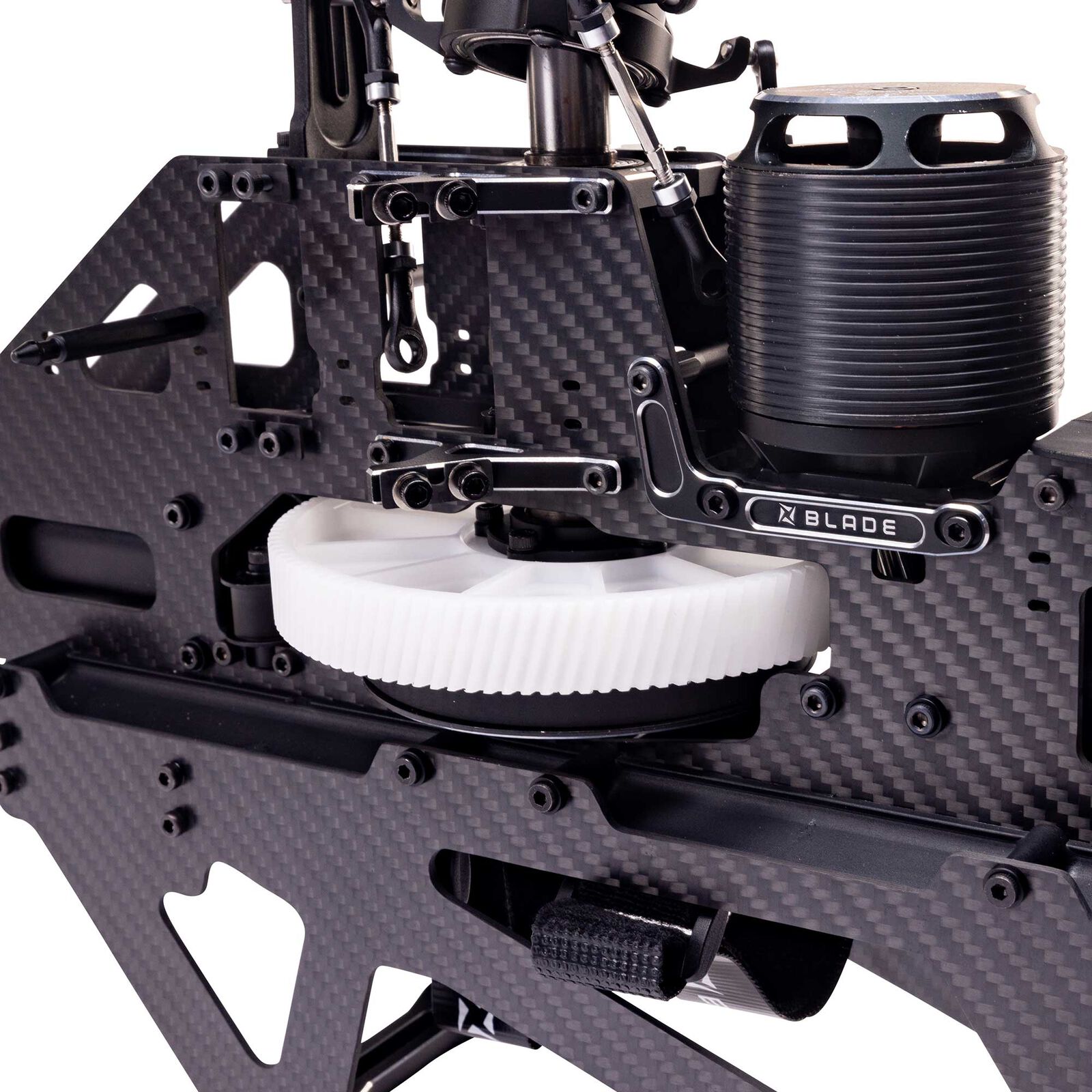

  • Efficient Delrin® helical main gear paired with a steel pinion for quiet and reliable performance
  • Ovalized aluminum tail boom eliminates the need for boom supports
  • 8mm wide belt for the driven tail featuring adjustable tension
  • High-strength steel 6mm tail shaft paired with a metal bell crank and grips
  • Aluminum tail case with a metal tail drive pulley
  • Optional lower Kv motor, different tooth count tail pulleys and longer tail blades for low head speed 3D (LH3D) and other styles of flying
  • 5mm diameter carbon fiber tail pushrod for precise tail control
  • Orange-painted canopy, carbon fiber tail fin and black landing gear available separately to customize and personalize the look
  • This High Power Super Combo also includes the following top-of-the-line Spektrum components:
    • (3) Spektrum H6350 Ultra-Torque High-Speed Heli Cyclic HV Brushless Servos (SPMSH6350)
    • (1) Spektrum H6360 Mid-Torque Ultra-Speed Heli Tail HV Brushless Servo (SPMSH6360)
    • (1) Spektrum Avian 200-Amp Brushless Smart ESC for 6S–14S with IC5 (SPMXAE1200HV)
    • (1) Spektrum FC6350HX Helicopter Flybarless Control System (SPMFC6350HX)
    • (1) Spektrum DSMX Remote Receiver (SPM9745)
Skill Level 4 – Advanced Experience Required image for the Blade Fusion 700 RC Helicopter Kit
Skill Level 4 – Advanced Experience Required

Skill Level 4 aircraft, like this one, are suitable for RC pilots who already have experience with and the skills to assemble, set up, and fly similar class models. And although this is a perfect first-ever 700-sized model for intermediate pilots, you should have the experience and skills necessary to successfully assemble, set up, and fly other helicopter models like the Blade Fusion 480 and 550 before attempting to fly the Fusion 700.

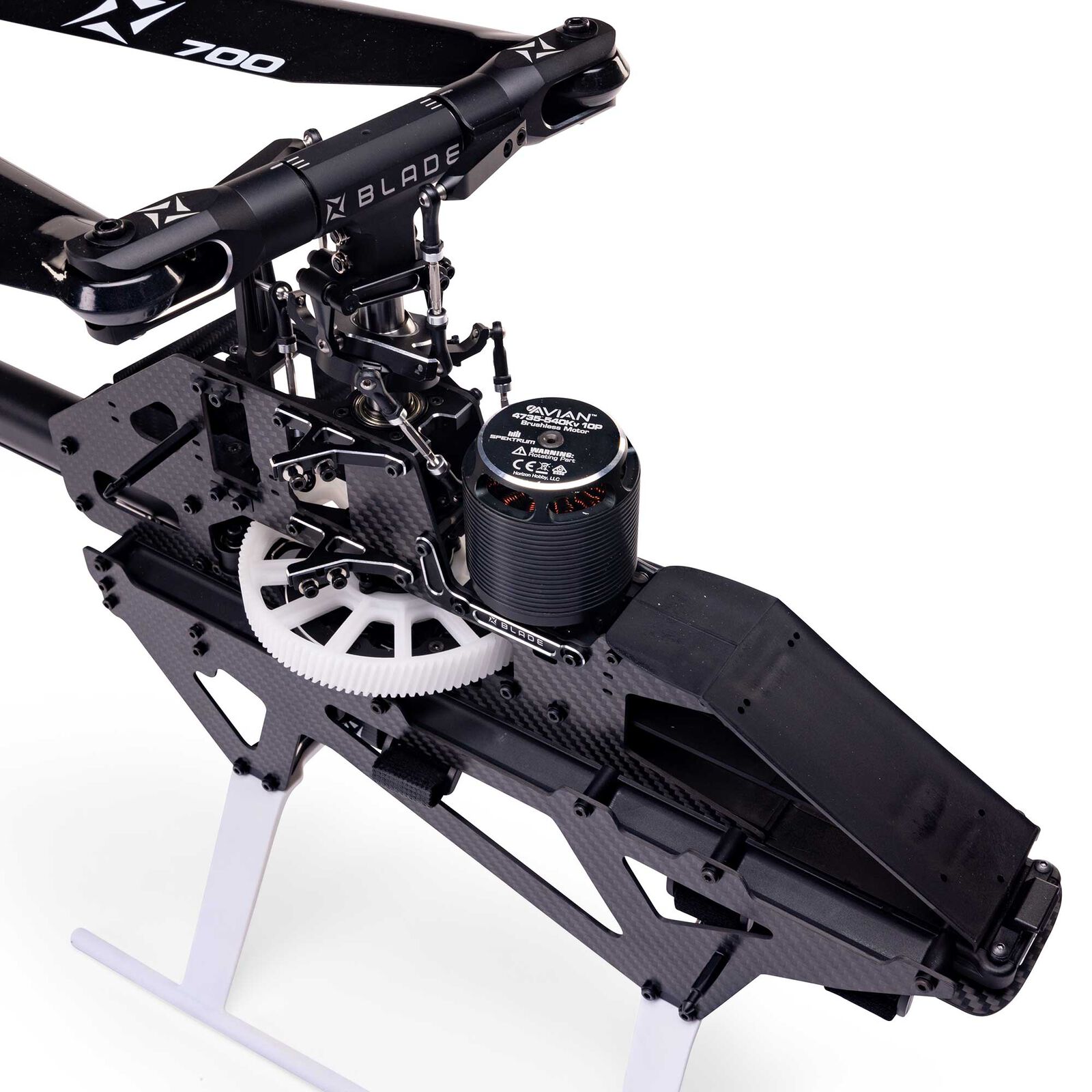

Mechanics Features
  • Includes a 4735-540Kv outrunner motor compatible with popular 12S battery setups
  • Precision machined Delrin® helical main gear with 11- and 12-tooth pinion gears

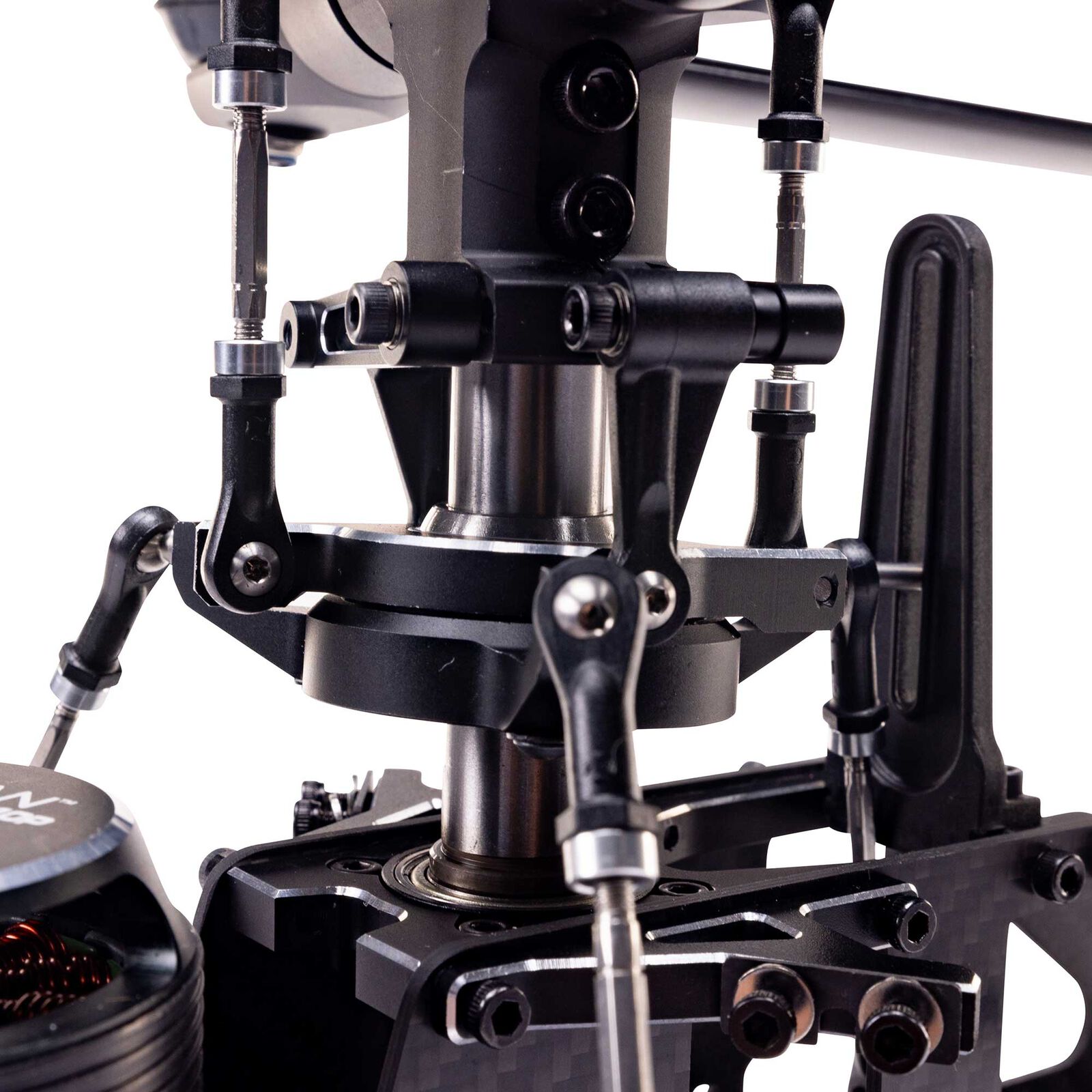

  • Black anodized aluminum swashplate and other components

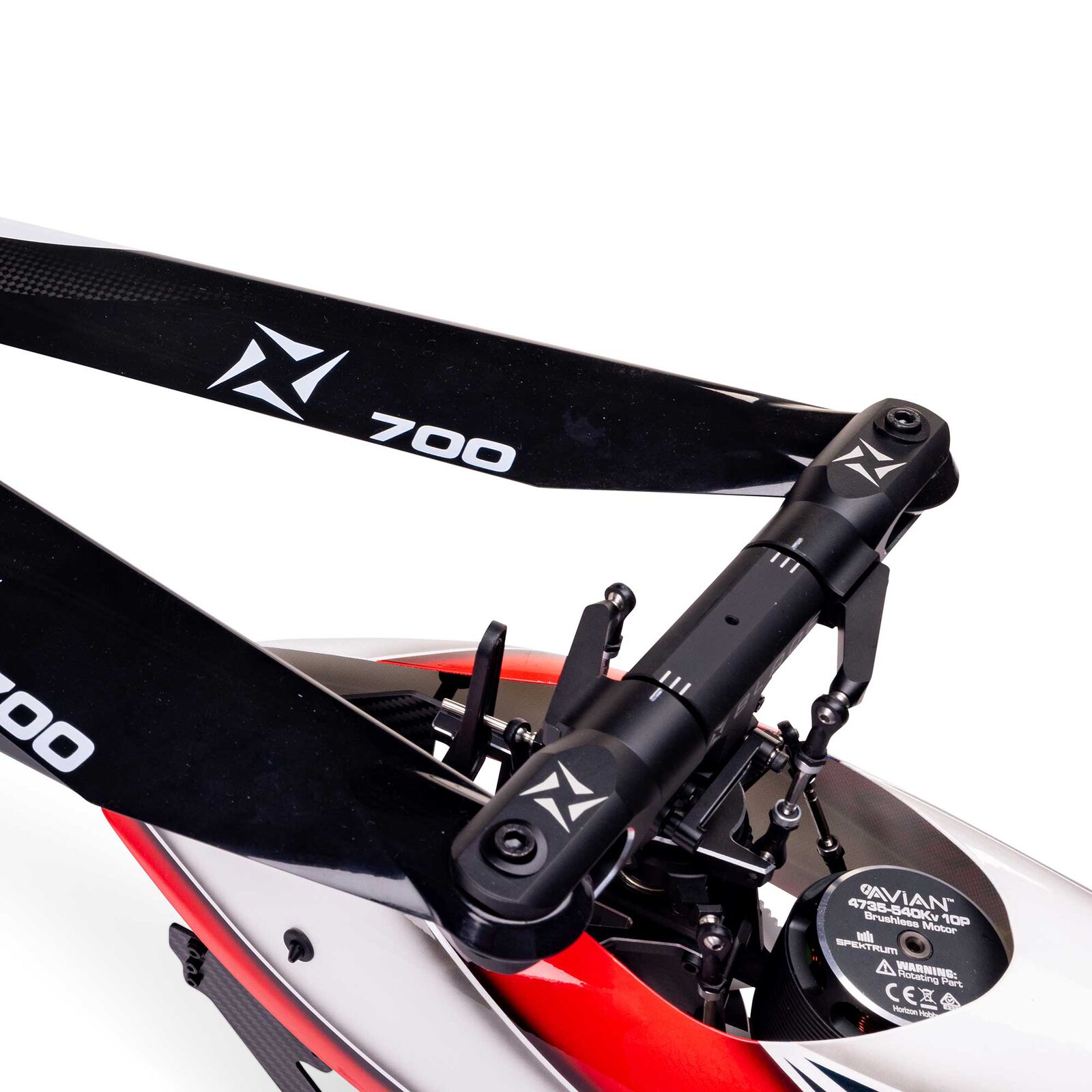

  • Includes 700mm carbon fiber main rotor blades
  • Sprag autorotation clutch and machined rotor head dampers with o-rings
  • High-strength steel 15mm main shaft and 10mm spindle/feathering shaft
  • Aluminum blade grips with zero pitch indicator marks

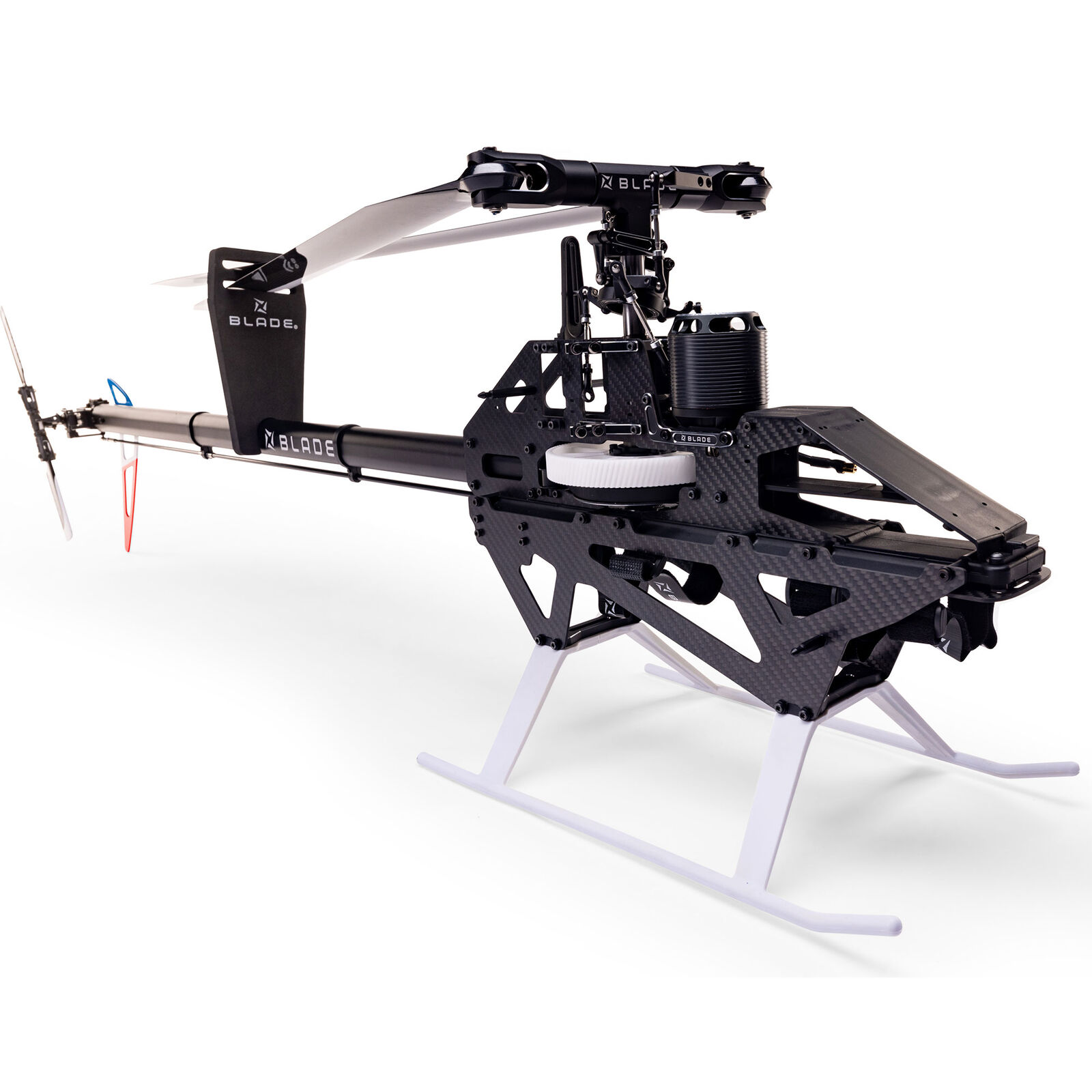

Frame Features
  • All-metal and 2mm thick carbon fiber construction
  • 2-piece white molded landing gear plus a painted fiberglass canopy for excellent visibility
  • Reinforced machined aluminum main shaft bearing block assembly
  • Sliding carbon fiber battery tray with positive locking mechanism

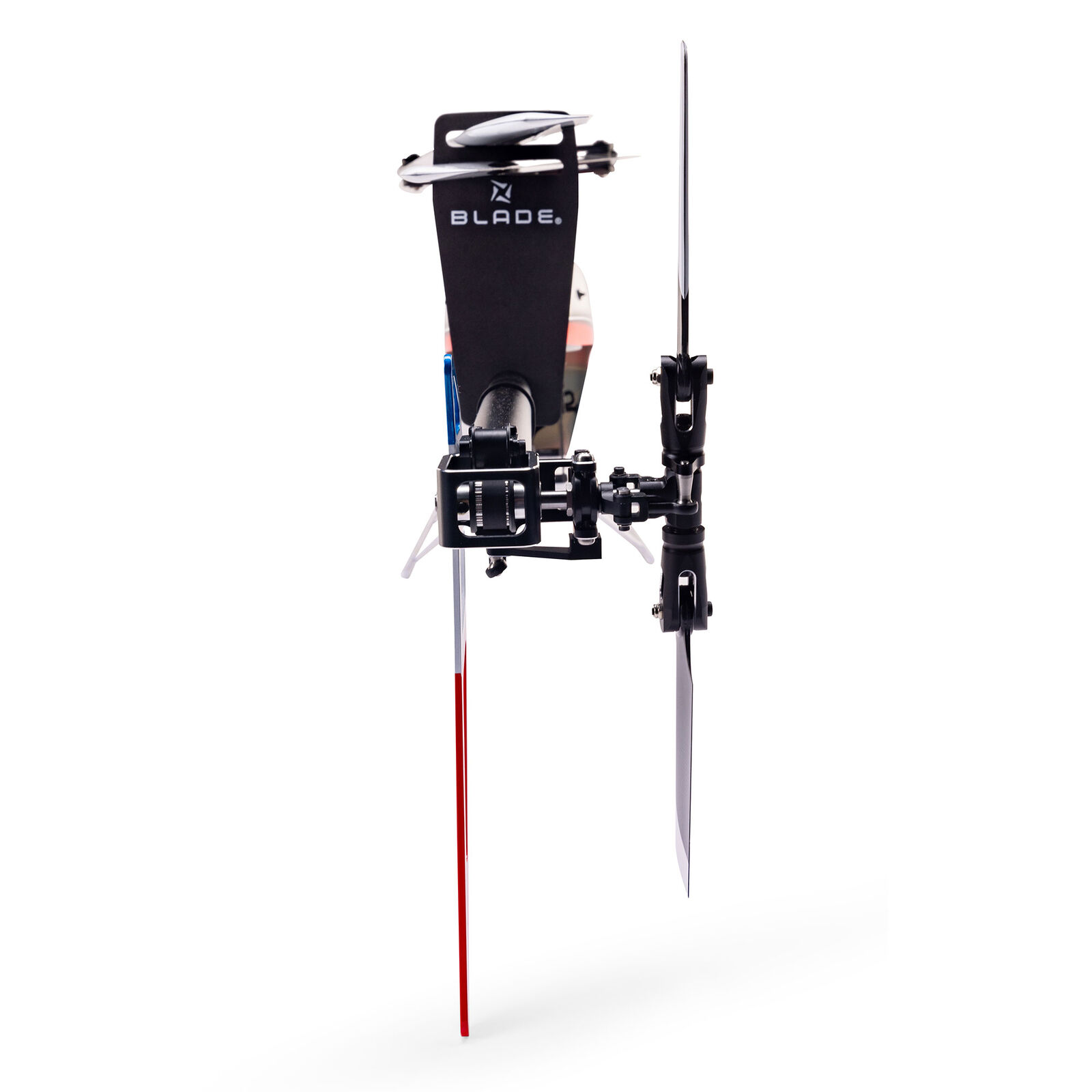

Tail Features
  • Ovalized aluminum tail boom for added strength and rigidity without boom supports
  • Machined aluminum tail case and separate painted vertical fin for improved visibility
  • 8mm wide drive belt with adjustable tension drives a large aluminum pulley
  • Belt-driven tail rotor for lower weight, less parts, and easier maintenance
  • 6mm high-strength steel tail shaft with metal bell crank, hub, and grips
  • Hidden tail servo for added protection and a sleek look
  • Includes 105mm carbon fiber tail rotor blades

Product Specifications

Approximate Assembly Time5-7 Hours
BatterySold Separately
Canopy/Body MaterialFiberglass
ChargerSold Separately
Completion LevelKit
Gear Ratio9.33-10.18
Main Blade MaterialCarbon Fiber
Main Frame MaterialCarbon Fiber
Main Motor TypeBrushless
Main Rotor Blade Length27.56" (700 mm)
Main Rotor Diameter62" (1575 mm)
Main Rotor Head TypeCollective Pitch Flybarless
Motor Size4735-540Kv 10-Pole
Power TypeElectric
Product Height14.88" (378 mm)
Product Length54.5" (1384 mm)
Product WeightWith recommended battery: 12.5lb (5670g)
Product Width8.5" (216 mm)
ReceiverIncluded
Recommended Motor BatterySPMX-1091
ServosIncluded
Skill LevelLevel 4
Speed ControlIncluded
Swashplate Type120 Degree CCPM
Tail Blade MaterialCarbon Fiber
Tail DriveBelt Drive
Tail Rotor Blade Length4.13" (105 mm)
Tail Rotor Diameter11.5" (292 mm)
  • VarumärkeBlade
