The POWER-MULTIlight is suitable for power models of around 1300 mm wingspan or larger, 500-size helicopters and larger, and model jets.
Functions:
The following functions can be switched from the RC system transmitter.
1. Everything OFF
2. Navigation lights and anti-collision light ON
3. Navigation lights, anti-collision light and landing light ON
All functions are permanently ON if the system is connected directly to a power source.
If you wish to control the lighting system from the transmitter, a three-position switch and one free channel are required. Compatible with all RC systems.

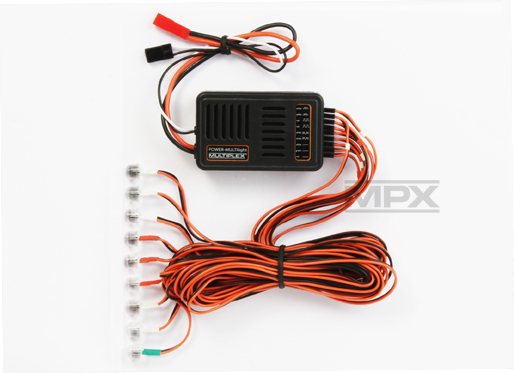

- Nine LEDs, completely pre-wired: 2 x white double-flash, 2 x flashing red, 2 x white landing light, 1 x constant red, 1 x constant green, 1 x constant white
- Landing light and position lights can be switched on and off from the transmitter
- Low weight
- Ultra-bright LEDs
| Current drain: | 1.45 A |
| Input voltage range: | 7.4 ~ 12.6 V |
| LED outputs: | 9 |
| LED output voltages: | Red LEDs: 2.3 V, white LEDs: 3.2 V, green LED: 3.2 V |
| Total output power: | 4.5 W |
| Power of single LED: | 500 mW |
| Case dimensions: | 67 x 41 x 19.2 mm |
| Size of LEDs: | 8 mm Ø, 8 mm high |
| Socket: | JST (red BEC socket) |
| Switched functions: | Everything OFF / Navigation lights and anti-collision light ON / Navigation lights, anti-collision light and landing light ON. If connected directly to the power source / battery all functions are permanently ON |
| Weight of control unit: | 35 g |
| Total weight incl. all LEDs and leads: | 55 ~ 60 g |
