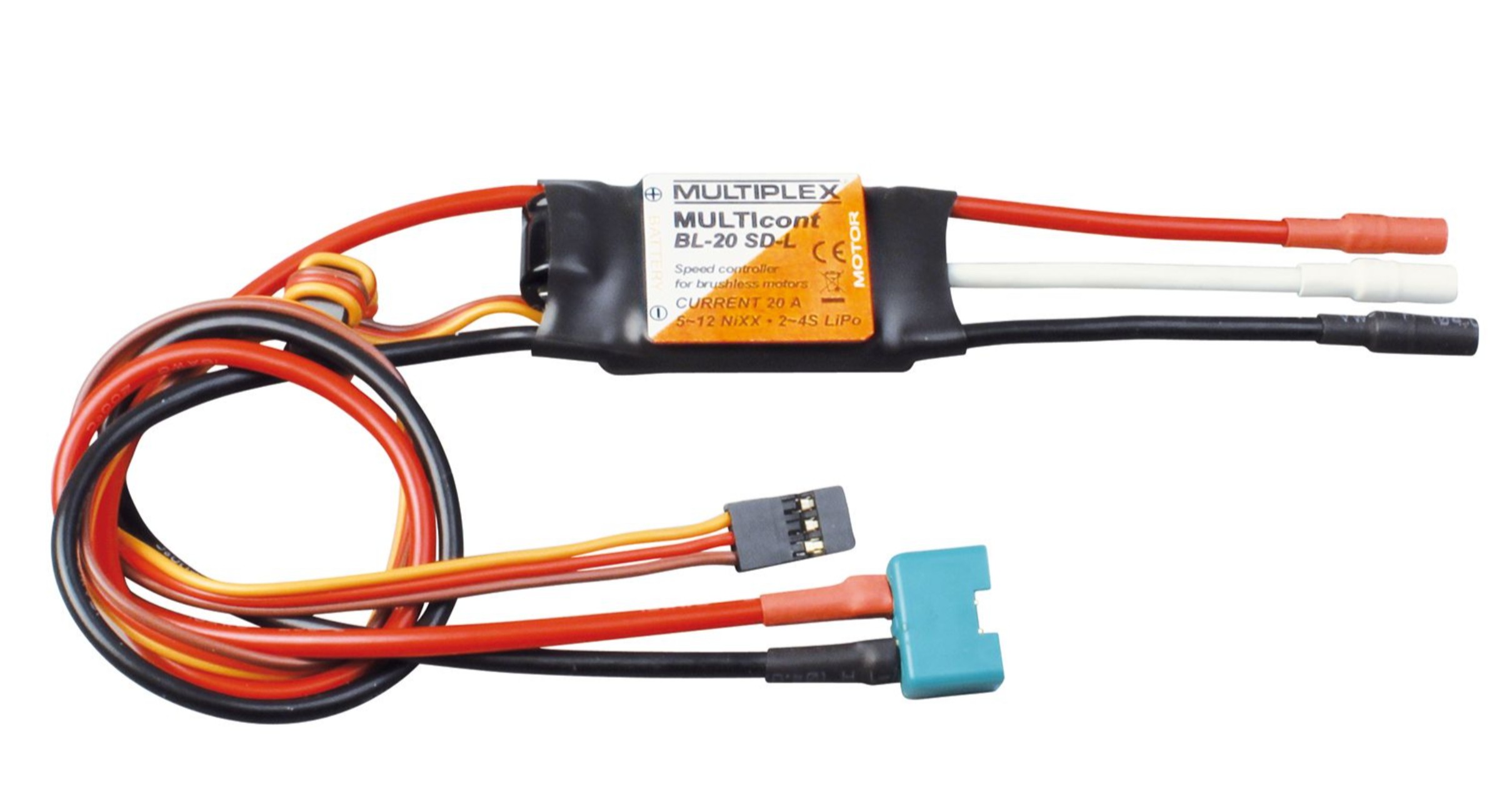

Multiplex Regler MULTIcont BL-20 SD-L EasyStar II

Powerful brushless ESC - 20A

MULTIPLEX MULTIcont SD/SD-L controllers are characterized by a number of interesting features:


• numerous programmable parameters
• Undervoltage shutdown for: LiPo or NiXX batteries
• Brake: ON or OFF
• Engine shutdown type: engine power reduction or engine shutdown
• Motor start-up behavior: standard, soft and super soft.
• Timing: Low, Medium, High
• Start safety system prevents unintentional engine start when plugging in the battery
• Engine shutdown in the event of massive radio interference or no transmitter signal: Reduced in the event of radio interference from 1 second, in the event of interference longer than 3 seconds, the engine is switched off completely.
• Start-up protection: If the motor cannot start within 2 seconds, the controller switches the motor off. In order to start the engine, the throttle stick must first be moved to the "idle" position.

BEC Voltage (V): 5,00
BEC Current (A): 2,00
Permanent Current (A): 20
Power Supply for Receiver: Yes
Clock Frequency (kHz): 0
Control Mode(s): Forward
S-BEC: No
Telemetry: No
Number of cells (LiPo): 2-4
Number of cells (NiMH): 5-12
