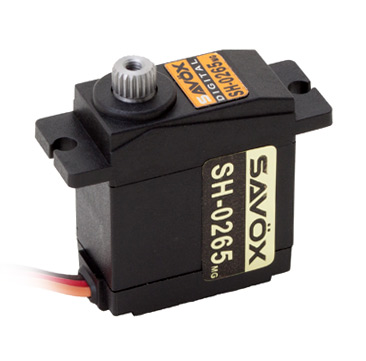

Savöx SH-0265MG Servo 2,4Kg 0,075s Metalldrev Mikro
301 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: SAV-SH0265MG
SAVÖX SH-0265MG - Metal-Geared Micro Servo
The Savox SH-0265MG metal-gear, digital, micro servo has a nice balance of torque and speed to fit many applications.Features:

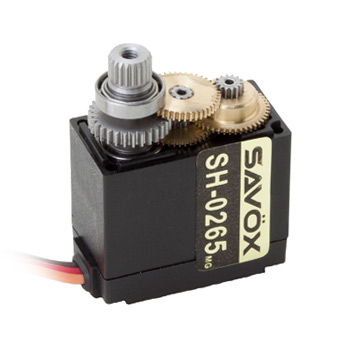

- Metal gear train ensures durability and longevity
- Ideal for small planes, and 450 size helicopters
Specifications:
- Torque @4.8V: 1.8kg/cm
- Torque @6V: 2.4kg/cm
- Speed @4.8V: 0.09 sec/60 deg
- Speed @6V: 0.075 sec/60 deg

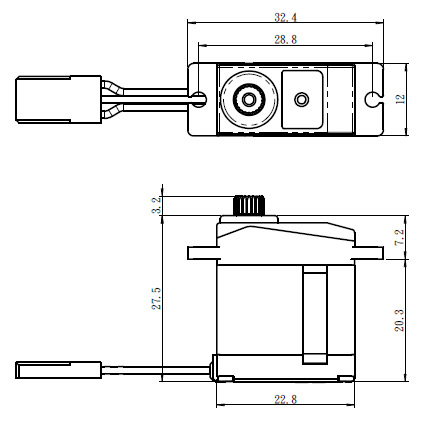

- Dimensions L x W x H: 22.8 x 12.0 x 27.5mm
- Weight: 15g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 150mA @4.8V, 180mA @6.0V
- Stall Current (at locked): 1100mA @4.8V, 1500mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 21 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 700 2300 µ second
- Maximum Travel: Appx 150° (700 2300 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
- VarumärkeSavöx
