Savöx SH-0263MG Servo 2,2Kg 0,10s Alu Metalldrev Mikro
308 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: SAV-SH0263MG

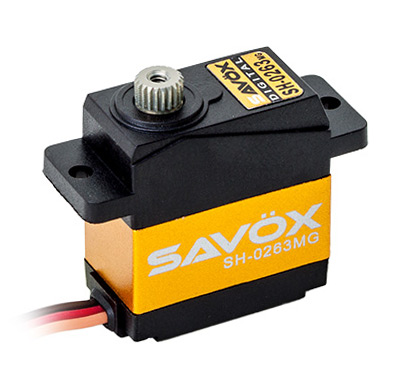

SAVÖX SH-0263MG - Metal-Geared Micro Servo
The Savox SH-0263MG metal-gear, digital, micro servo is quick and built tough.
Features:

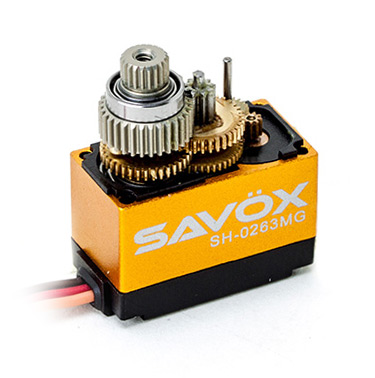

- Metal gear train ensures durability and longevity
- Aluminum middle case allows for cooler operating temperatures
- Ideal for small planes and 450 size helicopters
- Dual ball bearing support
Specifications:
- Torque @4.8V: 1.8kg/cm
- Torque @6V: 2.2kg/cm
- Speed @4.8V: 0.13 sec/60 deg
- Speed @6V: 0.10 sec/60 deg

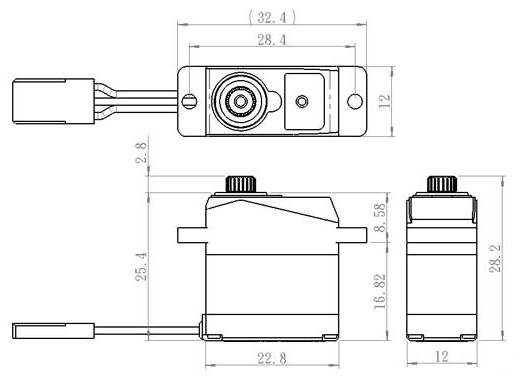

- Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
- Weight: 15g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 60mA @4.8V, 80mA @6.0V
- Stall Current (at locked): 550mA @4.8V, 700mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 21 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 700 2300 µ second
- Maximum Travel: Appx 150° (700 2300 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
- VarumärkeSavöx
