Savöx SC-1257TG Servo 10Kg 0,07s Coreless Black Edition
918 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: SAV-SC1257TGBE

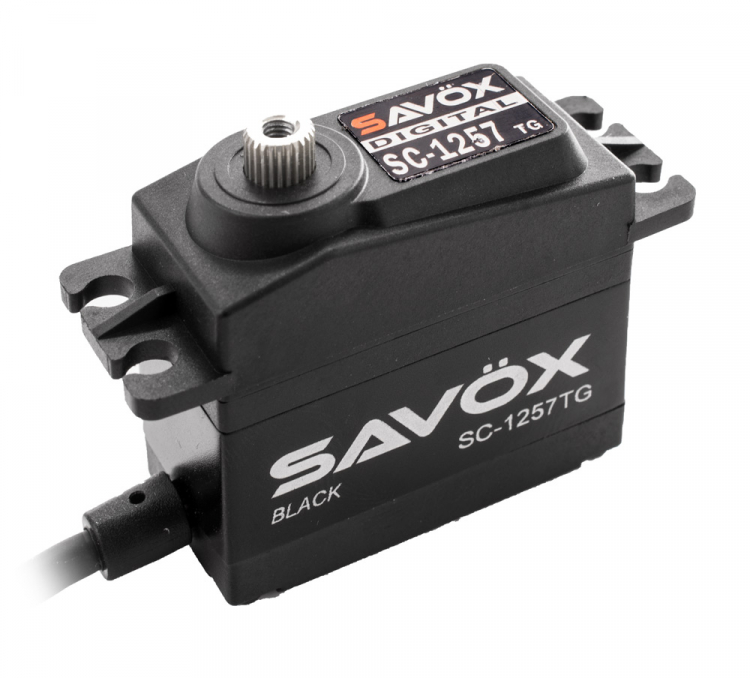

SAVÖX SC-1257TGBE - Titanium-Geared High-Speed Digital Standard-Sized Servo
The SC-1257TG-BE is a high speed standard servo that provides a fast transit for those looking to get the ultimate in speed. With an all black color design, the SC-1257TG-BE provides a stealth look in RC cars.
Features:
- Extremely strong titanium gears ensure long-life, durability, and light weight
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies
- Sleek black design with laser etching and a shorter 200mm black lead wire
- Aluminum middle case allows for cooler operating temperatures
Specifications:
- Torque @ 4.8V: 8kg/cm
- Torque @ 6V: 10kg/cm
- Speed @ 4.8V: 0.09 sec/60 deg
- Speed @ 6V: 0.07 sec/60 deg

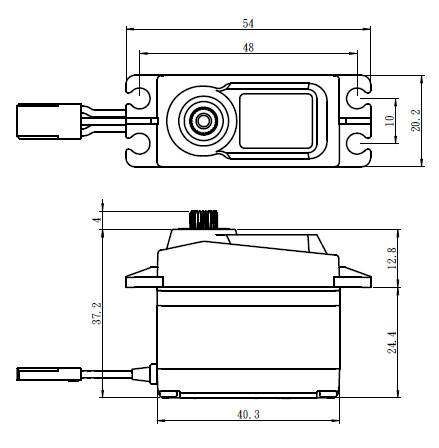

- Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
- Weight: 52.4g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 100mA @4.8V, 120mA @6.0V
- Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 2200 µ second
- Maximum Travel: Appx 130° (900 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
- VarumärkeSavöx
