Savöx SB-2272MG Servo 7Kg 0,032s HV Alu Brushless Metalldrev
1 195 SEK/styck895 SEK/styck
Lägsta pris de senaste 30 dagarna1 195 SEK/styck- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: SAV-SB2272MG

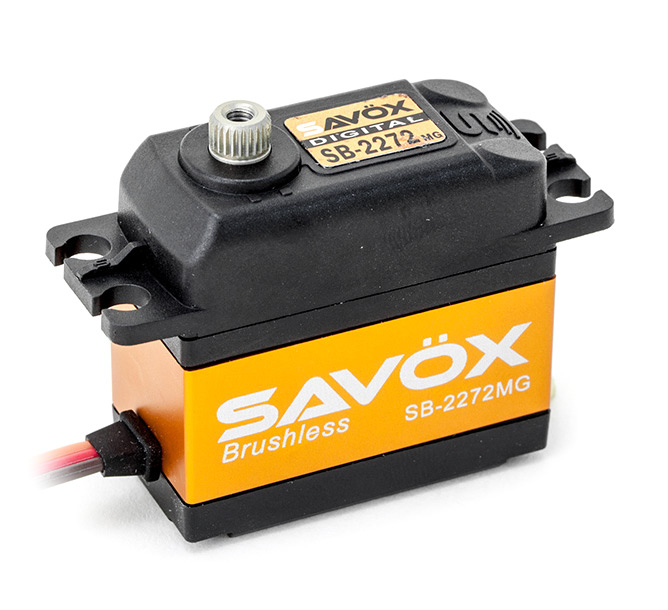

SAVÖX SB-2272MG - High Voltage Brushless Metal-Geared High Speed/Torque Servo
The Savox SB-2272MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.Features:
- High Voltage

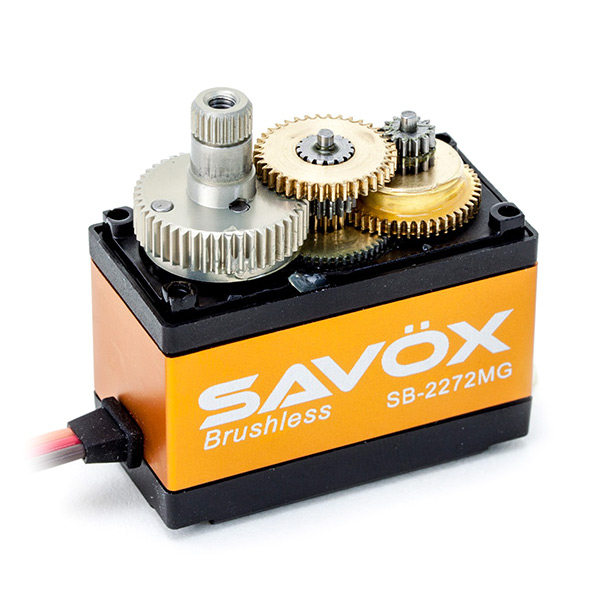

- Metal Gear train for extended life and durability
- Brushless motor for smooth operation and efficiency
- Ideal for helicopter use due to it's amazing speed
Specifications:
- Torque @ 6V: 5kg/cm
- Torque @ 7.4V: 7kg/cm
- Speed @ 6V: 0.045 sec/60 deg
- Speed @ 7.4V: 0.032 sec/60 deg

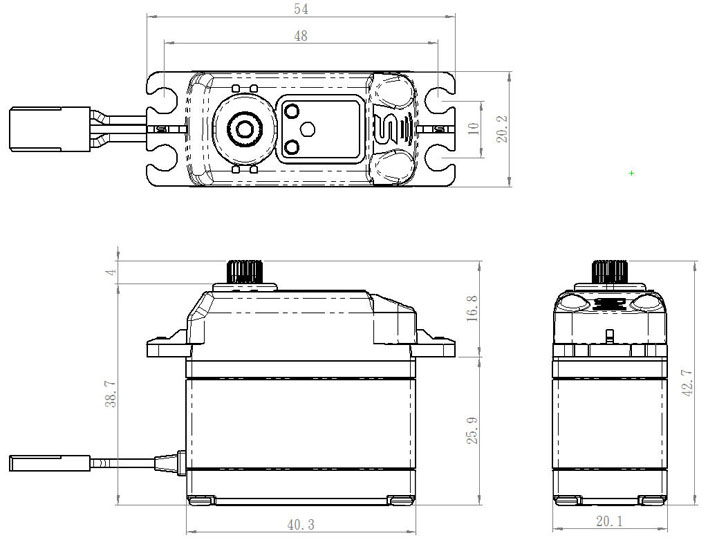

- Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
- Weight: 66g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 2200 µ second
- Maximum Travel: Appx 130° (900 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
- VarumärkeSavöx
