Savöx SB-2263MG Servo 10Kg 0,076s Alu Brushless Metalldrev Lågt
958 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: SAV-SB2263MG

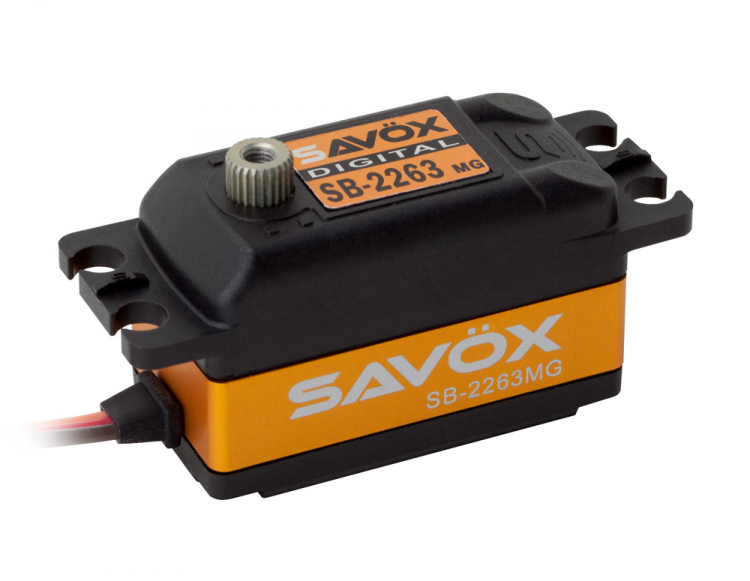

SAVÖX SB-2263MG - Brushless Metal-Geared High Speed Low-Profile Servo
The SB-2263MG is a high speed, brushless, low profile servo suitable for RC cars and boats where you want/need a fast and low servo that is not High Voltage.
Features:

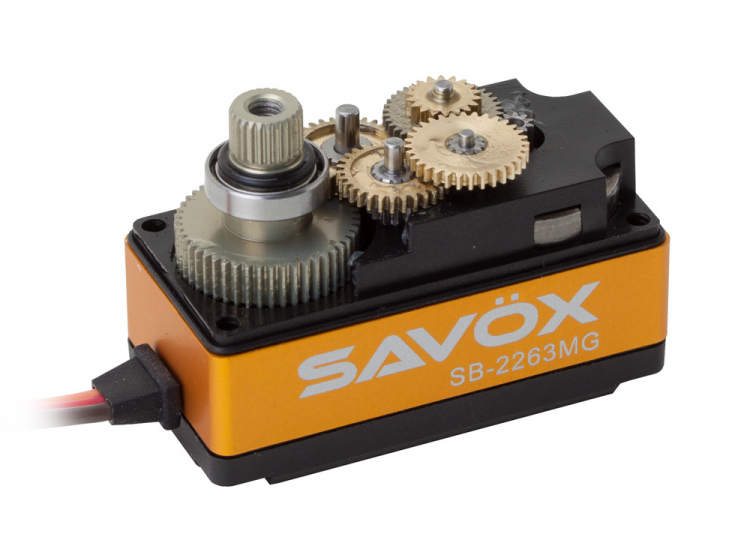

- Metal gear train ensures durability under harsh situations
- Original black/orange design
- Ideal for 1/10 on road cars requiring a high speed servo
Specifications:
- Torque @ 4.8V: 8kg/cm
- Torque @ 6V: 10kg/cm
- Speed @ 4.8V: 0.10 sec/60 deg
- Speed @ 6V: 0.076 sec/60 deg
- Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
- Weight: 48g
Technical Details:
- Operating Temperature: -10° - 50°C
- Running Current (no load): 180mA @4.8V, 220mA @6.0V
- Stall Current (at locked): 2900mA @4.8 V, 3700mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 50 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 2200 µ second
- Maximum Travel: Appx 130° (900 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
- VarumärkeSavöx
