Savöx SAV-SW0230MGPLUS SW-0230MG Plus Servo 8Kg 0,13s HV Metalldrev WP
578 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MC_SAV-SW0230MGPLUS

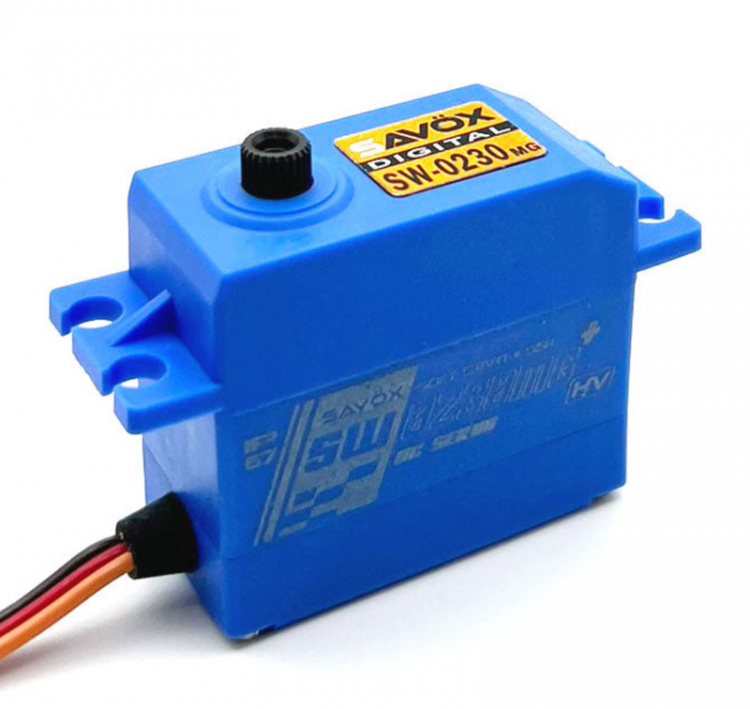

SAVÖX SW-0230MGPLUS - Water Proof High Voltage Metal-Geared Standard-Sized Servo
The SW-0230MG-PLUS is a budget friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if your looking to drive your RC vehicle in any condition - rain or snow.Features:
- New: Soft Start
- New: Sanwa SSR compatible
- Strong metal gear train for added durability
- Waterproof case design
- Capable of HV operation
- Ideal for cars, truck, and boats subject to water or snow
Specifications:
- Torque @ 6V: 6.5kg/cm
- Torque @ 7.4V: 8kg/cm
- Speed @ 6V: 0.16 sec/60 deg
- Speed @ 7.4V: 0.13 sec/60 deg

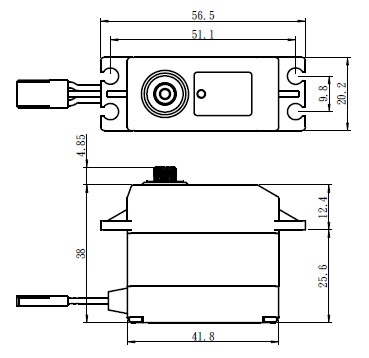

- Dimensions L x W x H: 41.8 x 20.2 x 38mm
- Weight: 60g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 100mA @6.0V, 120mA @7.4V
- Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
- VarumärkeSavöx
