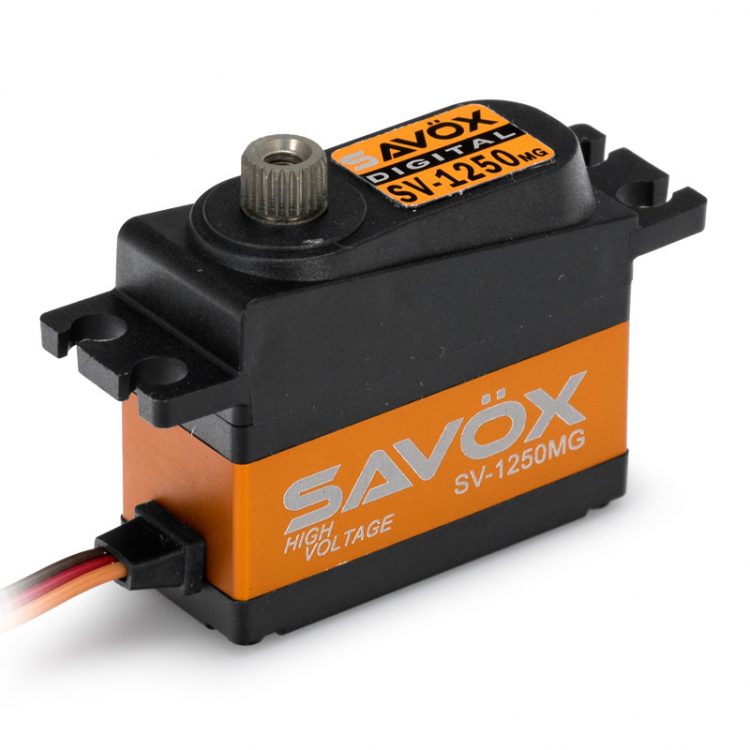

Savöx SAV-SV1250MG SV-1250MG Servo 8Kg 0,095s HV Alu Coreless Metalldrev Mini*
848 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MC_SAV-SV1250MG
- High Voltage

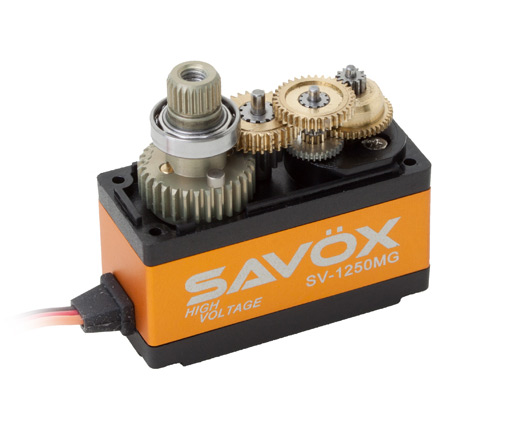

- Metal gear train provide durability against heavy use
- Aluminum middle case allows for cooler operating temperatures
- Ideal where torque is needed in a small mounting space
- Torque @6V: 4.6kg/cm
- Torque @7.4V: 8kg/cm
- Speed @6V: 0.11 sec/60 deg
- Speed @7.4V: 0.095 sec/60 deg

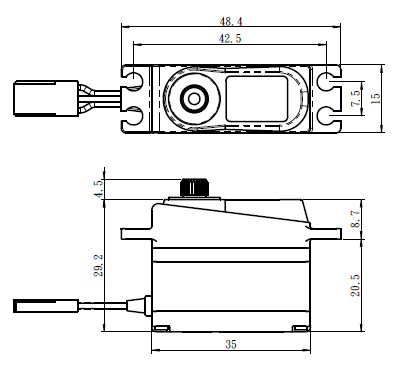

- Dimensions L x W x H: 35.0 x 15.0 x 29.2mm
- Weight: 29.6g
- Operating Temperature: -10° to 50°C
- Running Current (no load): 100mA @6.0V, 120mA @7.4V
- Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
- Idle Current: 6mA @4.8V, 6mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 110° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 154° (800 → 2200 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
SAVÖX SV-1250MG - Metal-Geared High Voltage Mini Servo
The SV-1250MG mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.Features:
Specifications:
Technical Details:
- VarumärkeSavöx
