Beskrivning
Art.nr: MC_SAV-SV0320

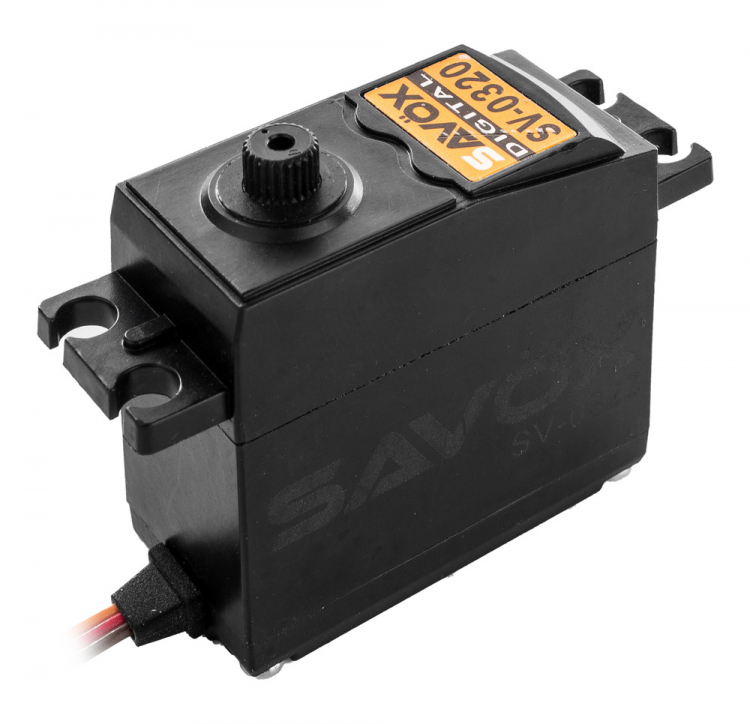

SAVÖX SV-0320 - High Voltage Standard-Sized Servo
The SV-0320 is a budget-friendly, standard digital servo which is capable of running on higher voltage than most standard servos.
Features:
- Capable of HV operation
- Industrial plastic gear allows for a smooth, quiet operation yet remains durable
Specifications:
- Torque @ 6V: 4.5kg/cm
- Torque @ 7.4V: 6kg/cm
- Speed @ 6V: 0.16 sec/60 deg
- Speed @ 7.4V: 0.13 sec/60 deg

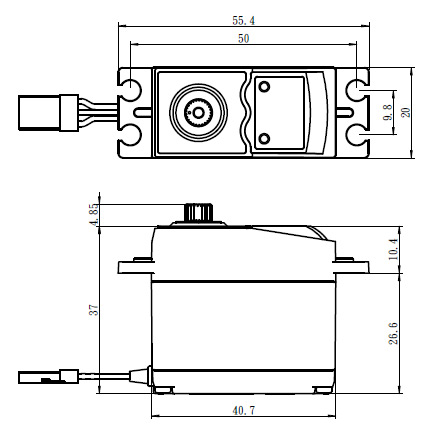

- Dimensions L x W x H: 40.7 x 20.0 x 37.0mm
- Weight: 46g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 180mA @6.0V, 240mA @7.4V
- Stall Current (at locked): 1300mA @6.0 V, 1600mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 1BB
- Operating Travel: 120° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 164° (800 → 2200 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
- VarumärkeSavöx
