Savöx SAV-SH1350 SH-1350 Servo 4,6Kg 0,11s Alu Coreless Mini*
678 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MC_SAV-SH1350
- Aluminum middle case allows for cooler operating temperatures
- Industrial plastic gear allows for a smmoth and quiet operation yet remains durable
- Dual ball bearing support
- Torque @4.8V: 3.7kg/cm
- Torque @6V: 4.6kg/cm
- Speed @4.8V: 0.13 sec/60 deg
- Speed @6V: 0.11 sec/60 deg

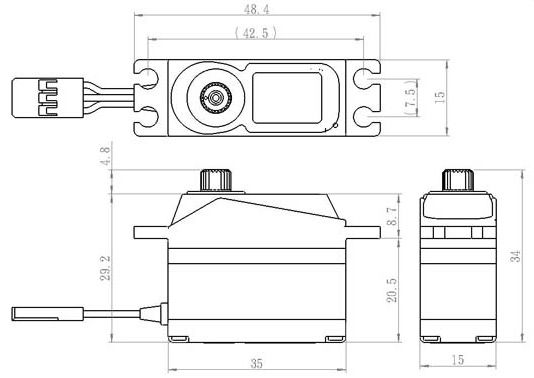

- Dimensions L x W x H: 35.0 x 15.0 x 29.2mm
- Weight: 26g
- Operating Temperature: -10° to 50°C
- Running Current (no load): 80mA @4.8V, 100mA @6.0V
- Stall Current (at locked): 800mA @4.8V, 1000mA @6.0V
- Idle Current: 6mA @4.8V, 6mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 110° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 154° (800 → 2200 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless

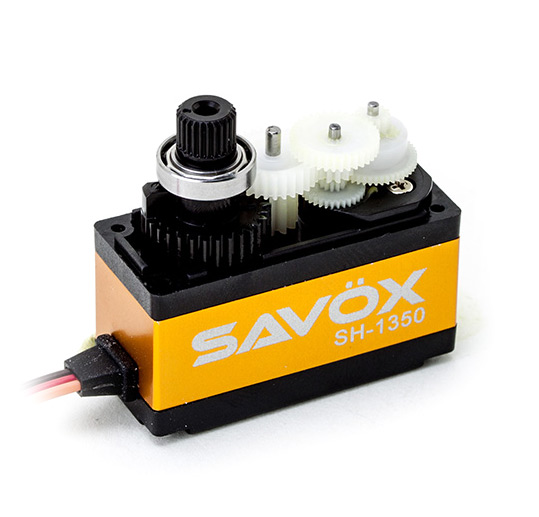

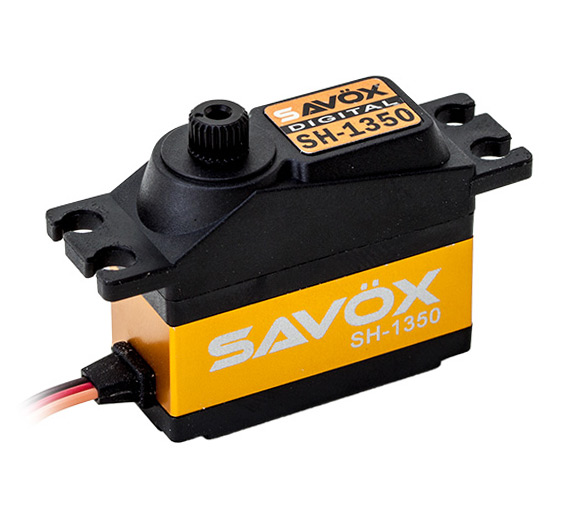

SAVÖX SH-1350 - Coreless High-Torque Micro Servo
The Savox SH-1350 is a micro sized, digital servo that is extremely strong for its size without having ot use higher voltage batteries which makes it great for a number of applications.Features:
Specifications:
Technical Details:
