Savöx SAV-SH1290MGPLUS SH-1290MG Plus Servo 5Kg 0,05s Alu Coreless Metalldrev
748 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MC_SAV-SH1290MGPLUS

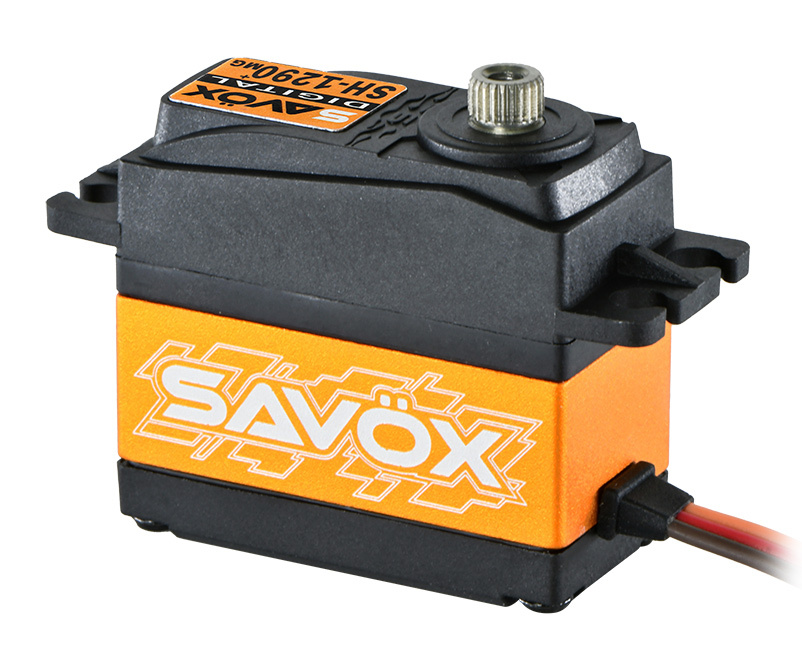

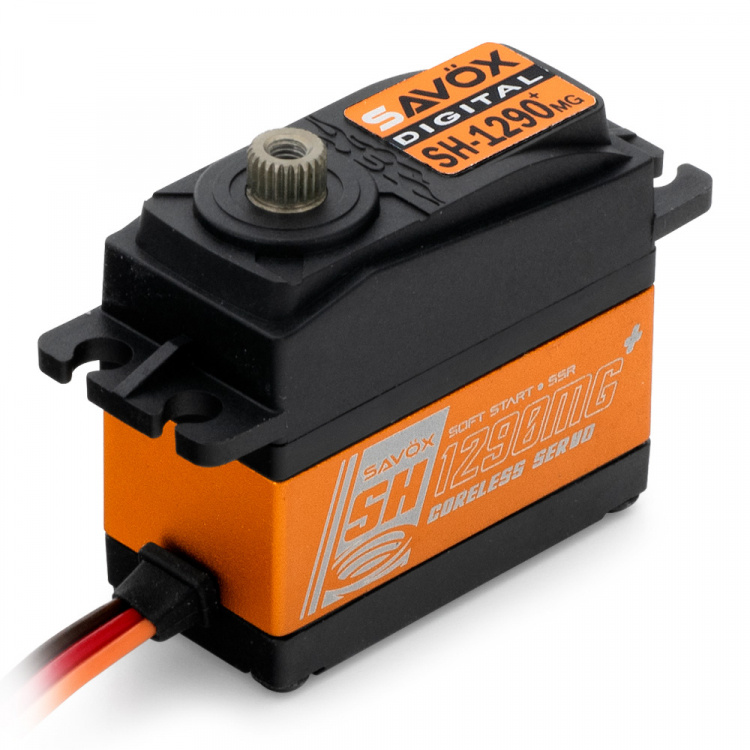

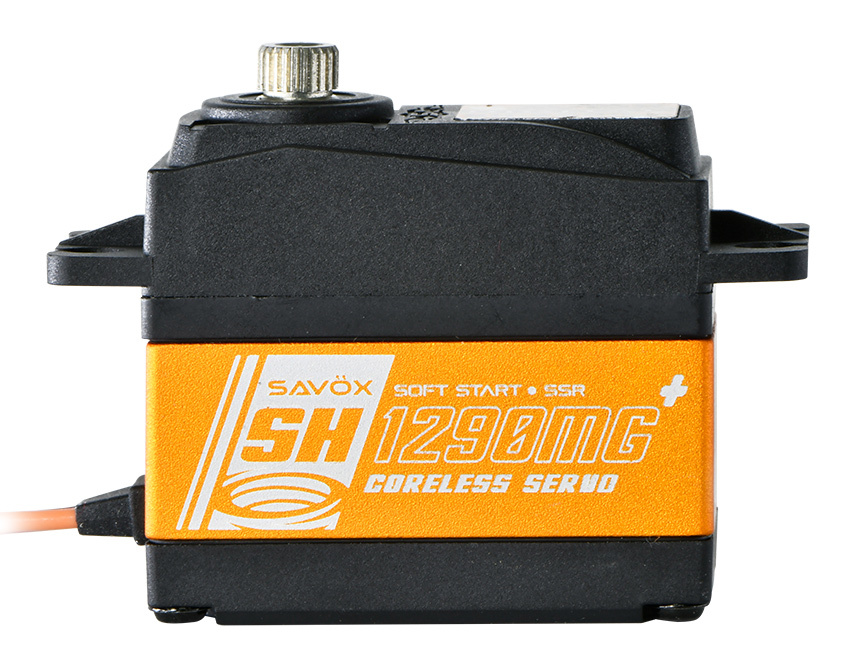

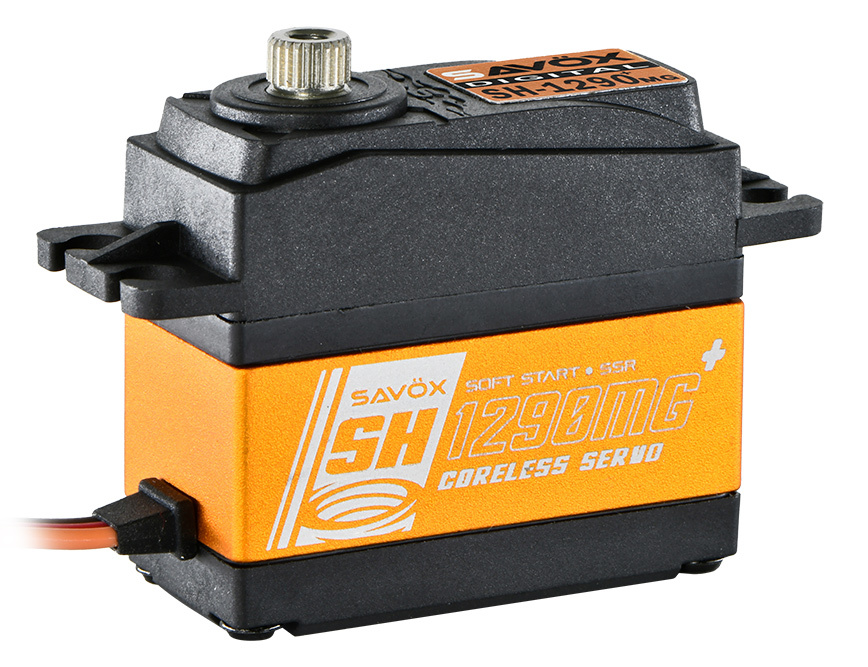

SAVÖX SH-1290MGPLUS - Metal-Geared Super-Fast Standard-Sized Servo
The Savox SH-1290MG Plus is a super-speed, metal-gear, digital servo that is extremely fast.Features:
- Soft Start
- SSR compatible
- Coreless motor

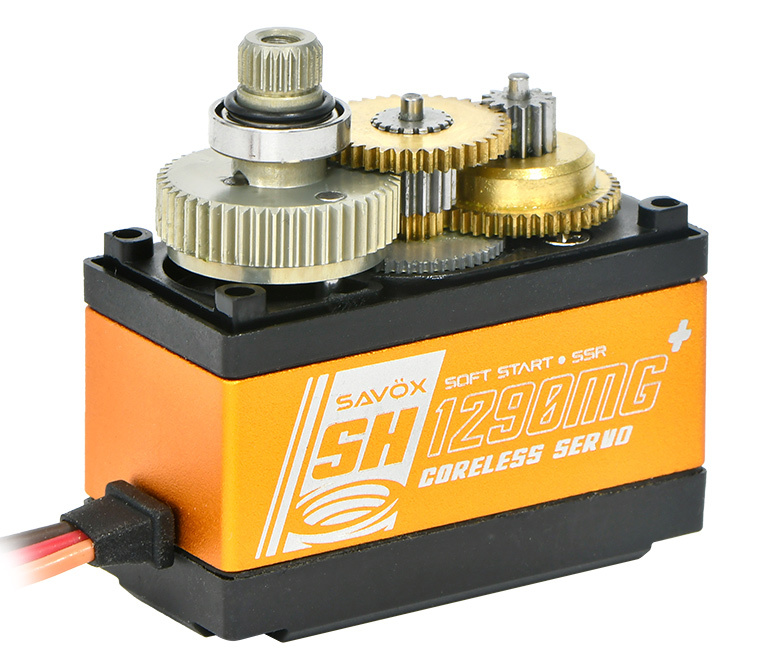

- Metal gear train ensures durability and longevity
- Extremely fast for quick response
- Aluminum middle case allows for cooler operating temperatures
- Ideal as a rudder servo on 500, 600, and 700 class helicopters
- Dual ball bearing support
Specifications:
- Line: ORIGINAL LINE
- Application: CAR/HELI/AIRPLANE
- Servo Size: Standard
- Operating Voltage: 4.8V-6.0V
- Speed @ 4.8V: 0.06s/60°
- Torque @ 4.8V: 4.0kg/cm
- Speed @ 6.0V: 0.05s/60°
- Torque @ 6.0V: 5.0kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Hybrid (Aluminum/Composite)
- Protection: Dust Resistant

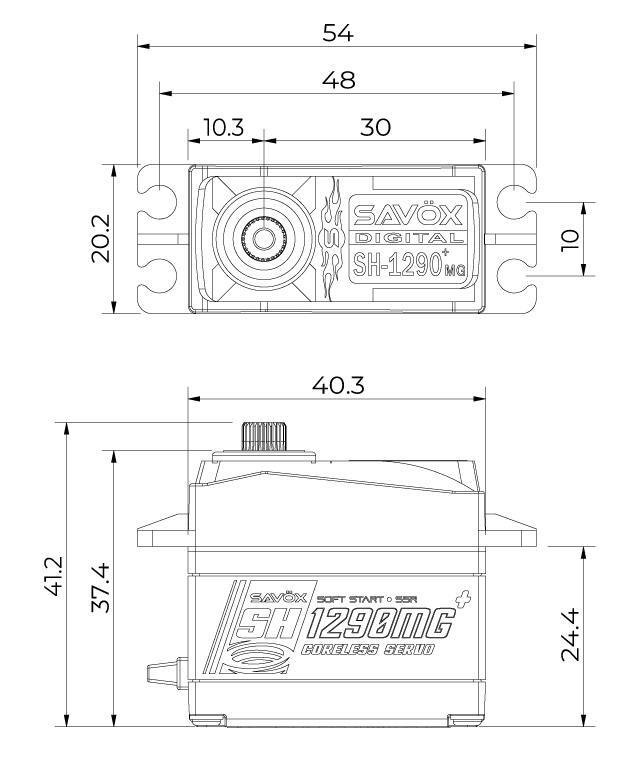

- Dimensions (LxWxH): 40.3x20.2x37.2mm
- Weight: 56.4g
- Gear Type: Heavy-Duty Metal
- Compatibility: Sanwa SSR
- PCB Board: 12bit 4096, Softstart, Lock protection

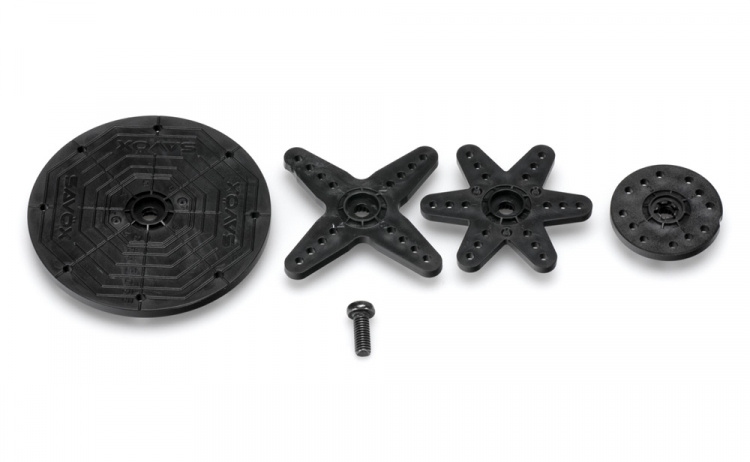

- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000μsec)
- Max Travel: ~154° (when 800→2200μsec)
- Operating Travel: 100° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 300 ±5mm
- Connector: JR
- Stall Current @ 4.8V: 2400mA
- Operating Current @ 4.8V: 180mA
- Stall Current @ 6.0V: 3000mA
- Operating Current @ 6.0V: 180mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
- VarumärkeSavöx
