Savöx SAV-SH0253PLUS SH-0253 Plus Servo 2,2Kg 0,09s Alu Mikro
249 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MC_SAV-SH0253PLUS

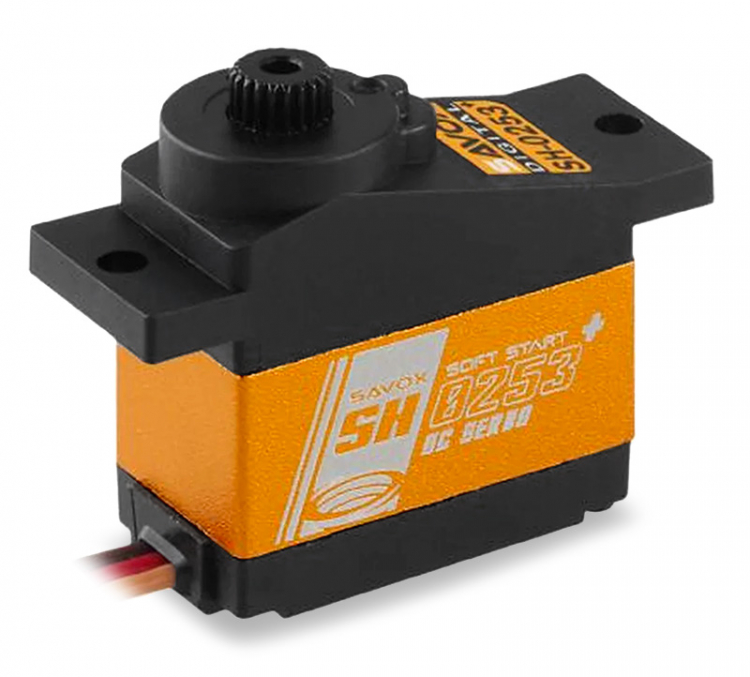

Savöx SH0253PLUS - Micro Digital Servo with Soft Start, 0.09s/2.2kg/cm @6V
The Savox SH-0253 Plus micro, digital servo has a nice balance of torque and speed in addition to using a combination of industrial plastic and metal gears for added durabilty and smoothness.Features:
- Soft Start
- Sanwa SSR compatibility
- Aluminum middle case allows for cooler operating temperatures
- Industrial plastic and metal gear train ensures durability and longevity
- Ideal for small planes, and 450 size helicopters
Specifications:
- Torque @ 4.8v - 1.8kg/cm
- Torque @ 6v - 2.2kg/cm
- Speed @ 4.8v - 0.13 sec/60 deg
- Speed @ 6v - 0.09 sec/60 deg

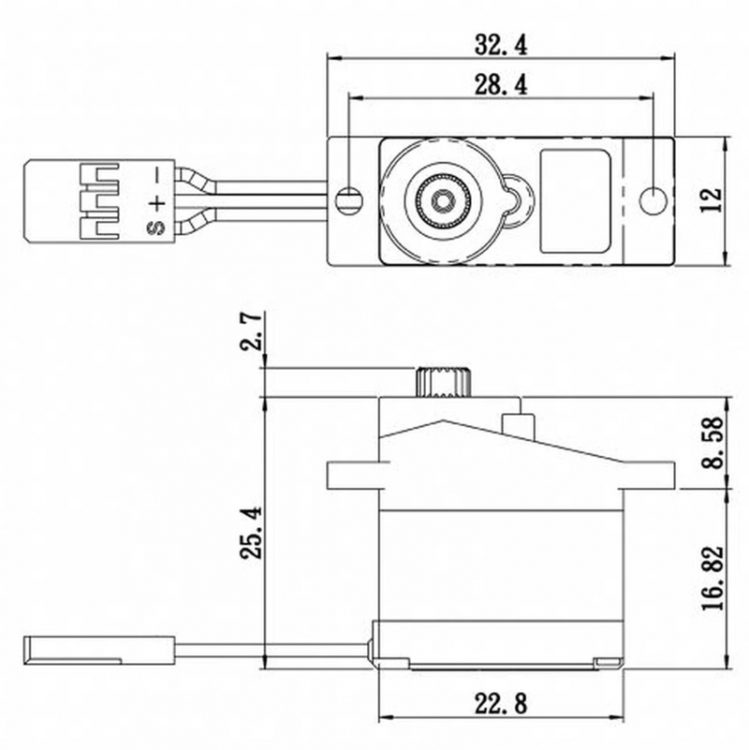

- Dimensions: L22.8 x W12 x H25.4mm
- Weight: 13.6g
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 150mA @4.8V, 180mA @6.0V
- Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 ± 5mm
- Output Gear Spline: 21 Tooth
- Bearings: 1BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 700 → 2300 µ second
- Maximum Travel: Appx 150° (700 → 2300 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
- VarumärkeSavöx
