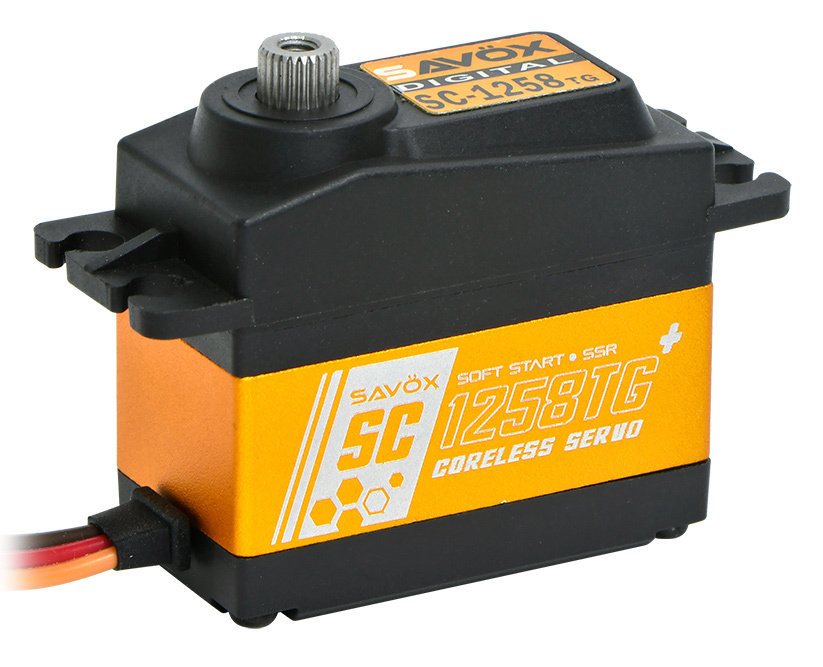

Savöx SAV-SC1258TGPLUS SC-1258TG Plus Servo 12Kg 0,08s Alu Coreless Titandrev
888 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MC_SAV-SC1258TGPLUS

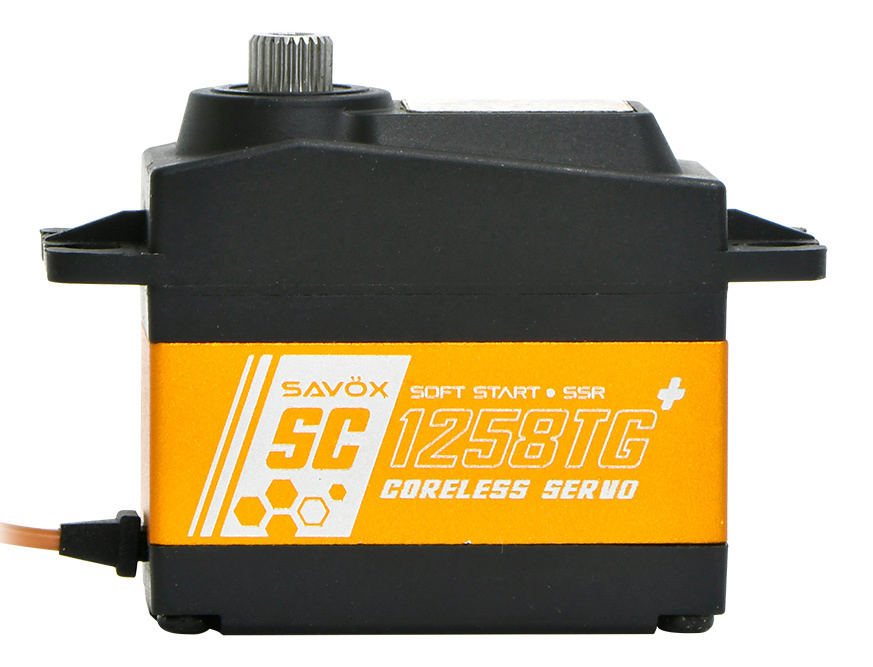

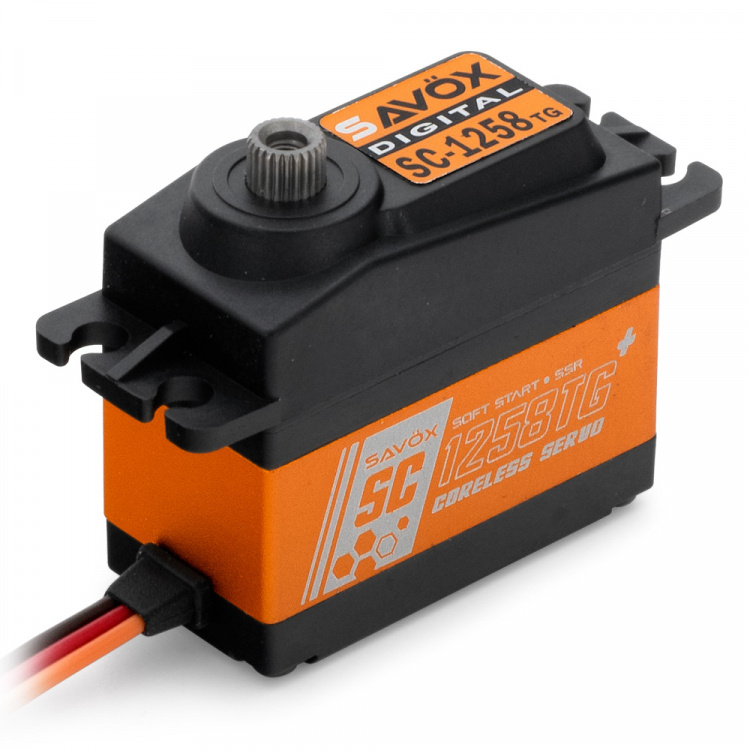

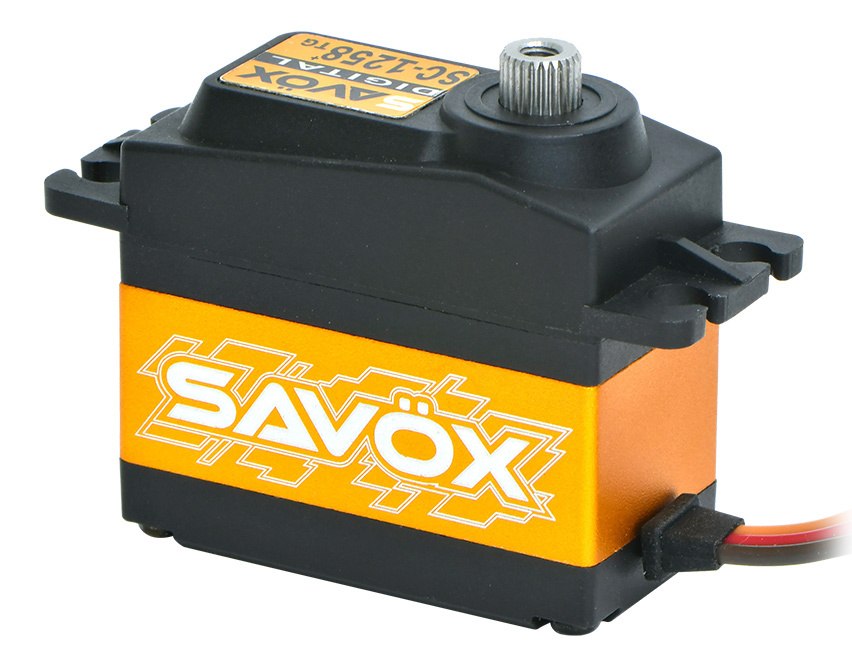

SAVÖX SC-1258TGPLUS - Titanium-Geared High-Speed Digital Standard-Sized Servo
Newly updated Savöx SC-1258TG Plus high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.Features:
- Softstart Function
- Sanwa SSR compatible
- Coreless motor

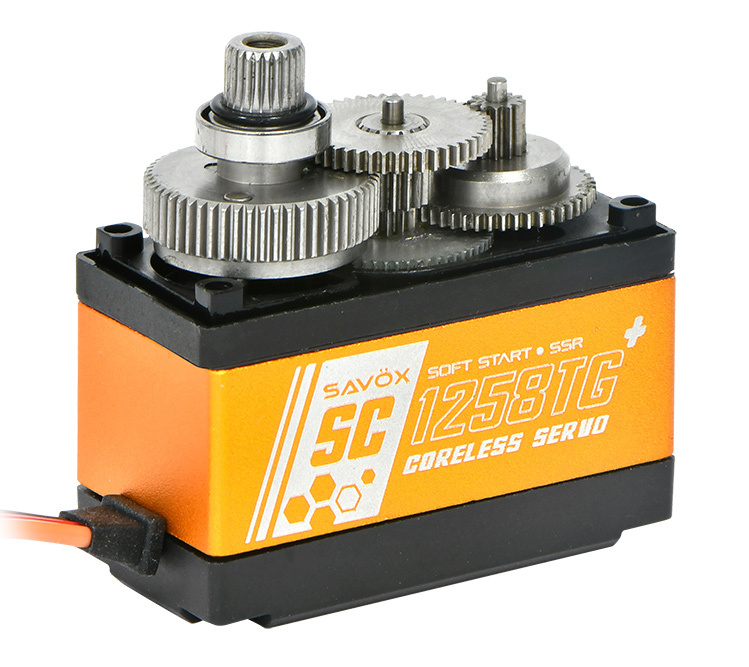

- Extremely strong titanium gears ensure long-life, durability and light weight
- Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
- Aluminum middle case allows for cooler operating temperatures
Specifications:
- Line: ORIGINAL LINE
- Application: CAR/HELI
- Servo Size: Standard
- Operating Voltage: 4.8V-6.0V
- Speed @ 4.8V: 0.1s/60°
- Torque @ 4.8V: 9.6kg/cm
- Speed @ 6.0V: 0.08s/60°
- Torque @ 6.0V: 12.0kg/cm
- Amplifier Type: Digital Controller
- Motor Type: Coreless
- Case Type: Hybrid (Aluminum/Composite)
- Protection: Dust Resistant

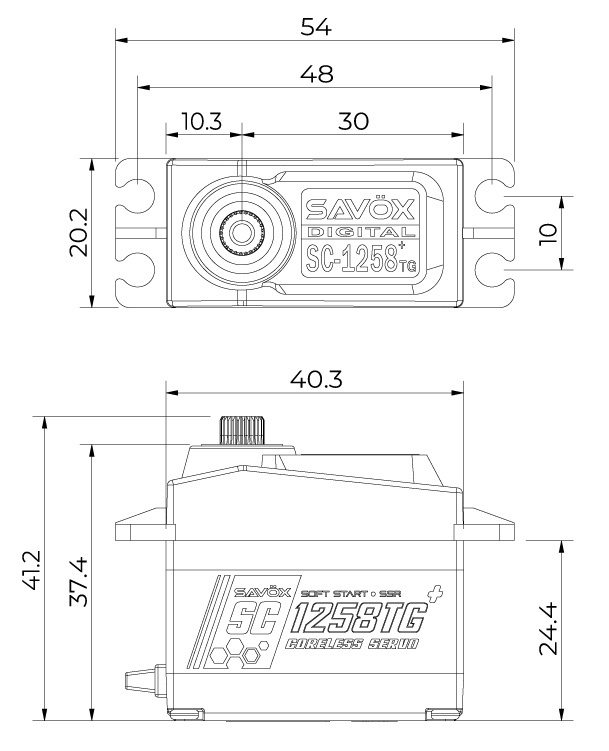

- Dimensions (LxWxH): 40.3x20.2x37.2mm
- Weight: 64g
- Gear Type: Titanium
- Compatibility: Sanwa SSR
- PCB Board: 12bit 4096, Softstart, Lock protection
- Horn Gear Spline: 25T (Φ6)
- Rotating Direction: Counterclockwise (when 1000→2000μsec)
- Max Travel: ~130° (when 900→2100μsec)
- Operating Travel: 100° (when 1000→2000μsec)
- Neutral Position: 1500μsec
- Bearing: 2x Ball Bearings
- Potentiometer: VR
- Cable Diameter: 22AWG
- Cable Length: 300 ±5mm
- Connector: JR
- Stall Current @ 4.8V: 4000mA
- Operating Current @ 4.8V: 100mA
- Stall Current @ 6.0V: 5000mA
- Operating Current @ 6.0V: 120mA
- Idle Current: 5mA
- Dead Band Width: 3-5μsec
- Frequency Range: 50-360Hz
- Control System: Pulse Width Modification
- Operating Temperature: -10°C to 50°C
- VarumärkeSavöx
