Beskrivning
Art.nr: MC_SAV-SB2271SGBE

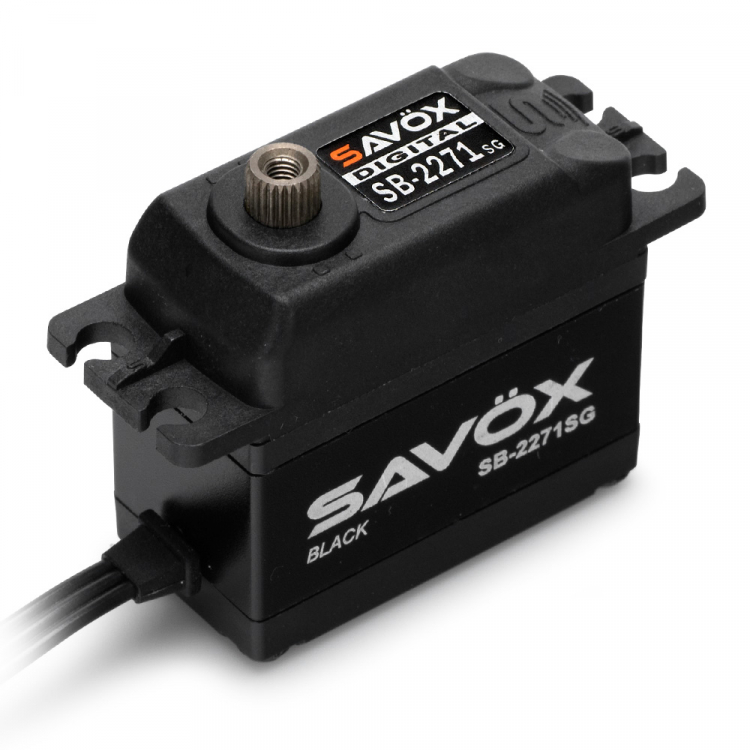

SAVÖX SB-2271SGBE - High Voltage Brushless Metal-Geared High Speed/Torque Servo
The Savox SB-2271SGBE High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.Features:
- Unique steel gear train
- Capable of HV operation
- Brushless motor for smooth operation and efficiency
- Ideal for 1/10 buggies and trucks, and some heli applications
- Sanwa SSR Mode Compatible
Specifications:
- Torque @ 6V: 15kg/cm
- Torque @ 7.4V: 20kg/cm
- Speed @ 6V: 0.085 sec/60 deg
- Speed @ 7.4V: 0.065 sec/60 deg

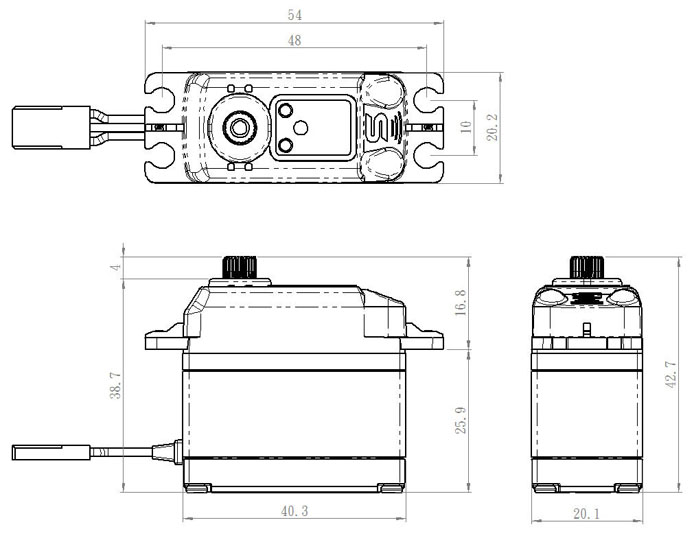

- Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
- Weight: 69g
Technical Details:
- Operating Temperature: -10° - 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
- VarumärkeSavöx
