Beskrivning
Art.nr: HS-765HB

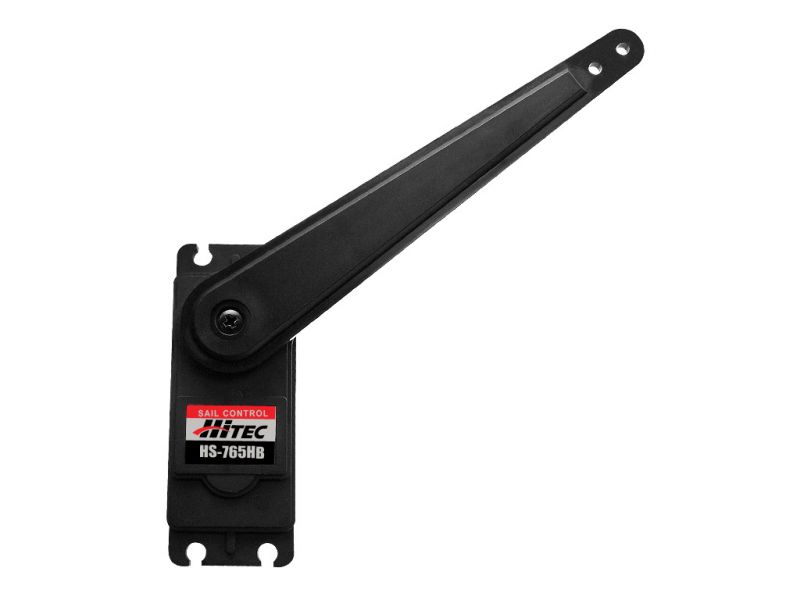

Hitec HS-765HB 13.2kg 0.23s
The HS-765HB sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.5 inch arm. With its dual ball bearing supported output shaft the HS-765HB will provide years of reliable service for your R/C sailing applications to 2 meters.
Features
- 4.9 inch Sail Arm with 140* Movement
- Strong Karbonite Gear Train
- Dual Ball Bearing-Supported Output Shaft
- Water and Dust-Resistant Case
Accessories
- Karbonite Gear Set
- Plastic Case Set
- Applicable Horns
HS-765HB Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.28 ~ 0.23
Maximum Torque Range oz. / in. 153 ~ 183
Maximum Torque Range kg. / cm. 11.0 ~ 13.2
Current Draw at Idle 8 mA
No Load Operating Current Draw 250 mA
Stall Current Draw 1,800 mA
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 2.32 x 1.14 x 1.96
Dimensions (Metric) 59.0 x 29.0 x 50.0
Weight (Ounces) 3.88
Weight (Gram) 110.0
Circuit Type HT7003 Analog MosFet
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Karbonite
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
The HS-765HB sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.5 inch arm. With its dual ball bearing supported output shaft the HS-765HB will provide years of reliable service for your R/C sailing applications to 2 meters.
