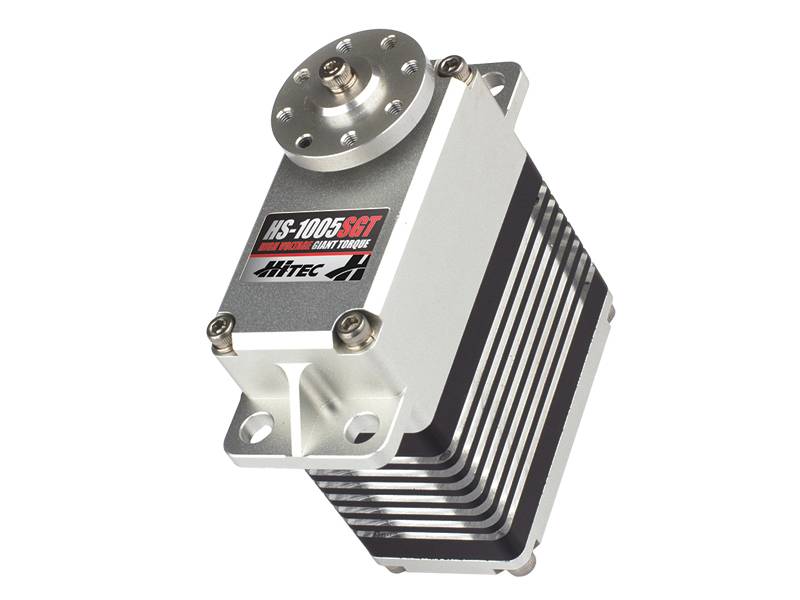

Hitec HS-1005SGT 110kg 0.19s
5 095 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: HS-1005SGT
Product Description
The ultra heavy duty, giant scale HS-1005SGT delivers digital precision and high voltage punch to your most demanding projects. Designed with an all-aluminum, EMI-shielded case, solid steel gears and non-programmable digital circuitry, this powerhouse servo can tackle the most extreme 1/5th scale vehicle stunts and giant scale aerobatic maneuvers in addition to the industrial applications that inspired its original design. Capable of operating on 14.8 volts, the HS-1005SGT is the ultimate in power and durability.
Features
- High Response Digital MOSFET Amplifier
- Hardened Steel Gears with MPD First Gear
- Long Life Potentiometer
HS-1005SGT Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 11.1V ~ 14.8V |
| Speed (Second @ 60°) | 0.26 ~ 0.19 |
| Maximum Torque Range oz. / in. | 1167 ~ 1528 |
| Maximum Torque Range kg. / cm. | 84 ~ 110 |
| Current Draw at Idle | 130 mAh |
| No Load Operating Current Draw | 1,300 mAh |
| Stall Current Draw | 6,500 mAh |
| Dead Band Width | 2 µs |
| Physical Specifications | |
| Dimensions (Inches) | 2.52 x 1.30 x 2.87 |
| Dimensions (Metric) | 64.0 x 33.0 x 73.0 |
| Weight (Ounces) | 12.80 |
| Weight (Gram) | 363.0 |
| Circuit Type | Digital Amplifier with Mosfet Drive |
| Motor Type | 5 Poles Cored Carbon Brushless |
| Gear Material | Steel |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Mega 15 |
| Case Material | CNC Aluminum |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 20 / 80 |
- VarumärkeHitec
