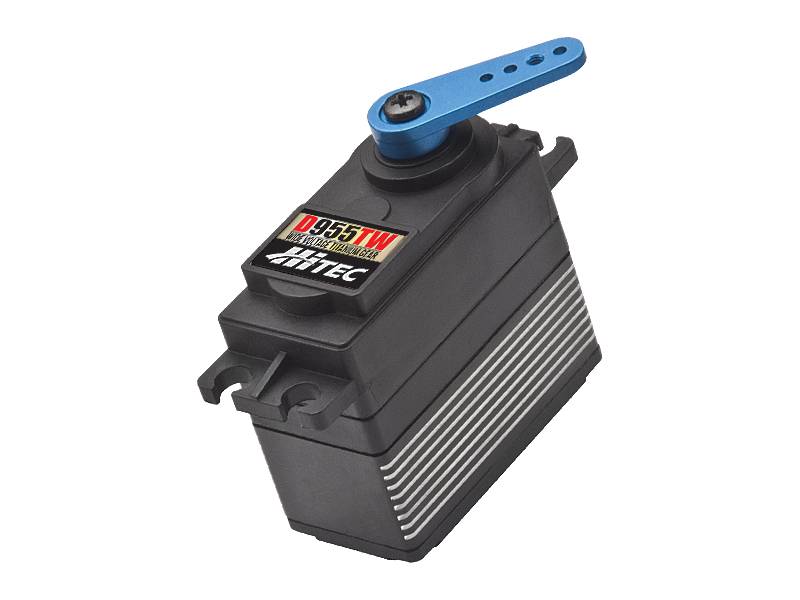

Hitec D955TW 29kg 0.12s
1 096 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: HS-D955TW
Features
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Accessories
- 3 Titanium Gears Set
- Metal / Karbonite 1st Gear Set
- Plastic / Aluminum Alloy Case Set | Link |
- Applicable Horns & Screws
D955TW Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 7.4V |
| Speed (Second @ 60°) | 0.19 ~ 0.12 |
| Maximum Torque Range oz. / in. | 251 ~ 404 |
| Maximum Torque Range kg. / cm. | 18.0 ~ 29.0 |
| Current Draw at Idle | 30 mA |
| No Load Operating Current Draw | 500 mA |
| Stall Current Draw | 5,200 mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.57 x 0.78 x 1.46 |
| Dimensions (Metric) | 40.0 x 20.0 x 37.0 |
| Weight (Ounces) | 2.33 |
| Weight (Gram) | 66.0 |
| Circuit Type | 32bit Programable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | MK 1st Gear & 3 Titanium Gears |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | H25T |
| Case Material | Plastic / Aluminum |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 20 / 80 |
- VarumärkeHitec
