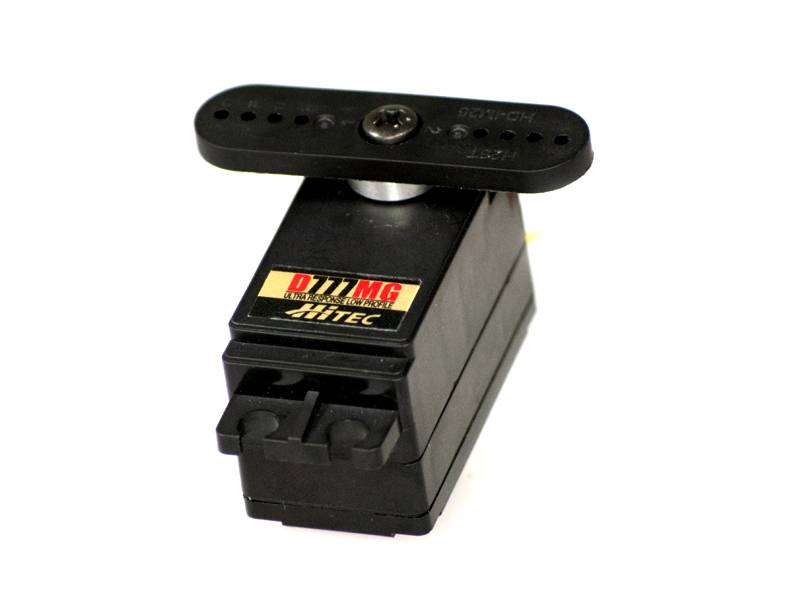

Hitec D777MG 6.5kg 0.07s Lowprofile
849 SEK/styck
- Populärt styrservo 1/10
- Nya 32 bitars processorn
-
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: HS-D777MG
Product Description
Our low profile D777MG servo has evolved directly from our popular metal gear HS-7775MG and HS-8775MG. With 32-bit high resolution, ultra-response technology and wide voltage operation, the D777MG is the perfect solution for hobbyists requiring a low profile servo with an efficient coreless metal brushed motor.
D777MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.09 ~ 0.07 |
| Maximum Torque Range oz. / in. | 72 ~ 90 |
| Maximum Torque Range kg. / cm. | 5.2 ~ 6.5 |
| Current Draw at Idle | 30mA |
| No Load Operating Current Draw | 200mA |
| Stall Current Draw | 3,000mA |
| Dead Band Width | N / A |
| Physical Specifications | |
| Dimensions (Inches) | 1.59 x 0.82 x 1.01 |
| Dimensions (Metric) | 40.4 x 21.0 x 25.4 |
| Weight (Ounces) | 1.80 |
| Weight (Gram) | 45.0 |
| Circuit Type | 32 bit Programable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | MP 1st Gear & 3 Metal Gears |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | 25 / 6 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | N / A |
- VarumärkeHitec
