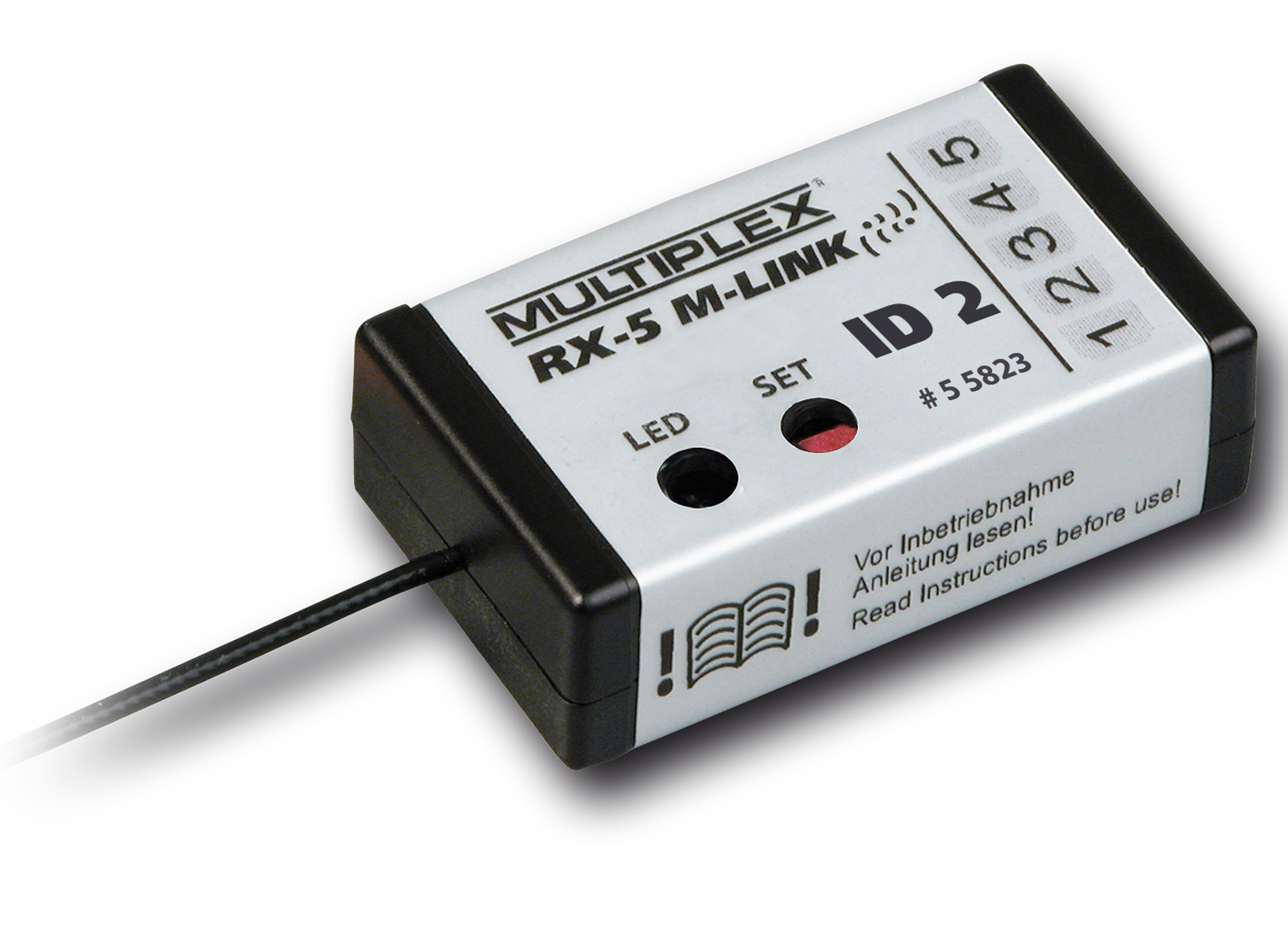

Multiplex RX-5 M-LINK ID 2, 2.4 GHz
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MPX-55823
5-channel receiver ID
compact and inexpensive 5-channel 2.4 GHz M-LINK receiver with UNI-plug system. Particularly suitable by the compact case and small dimensions in connection with the line connector arrangement for smaller models.
This M-LINK receiver is designed and built in Germany. Quality Made in Germany!
Typical applications:
- Model helicopters up to about 80 cm rotor diameter
- Electric and power models up to about 1.3 m wingspan
- Sailing and electric gliders up to about 2 m wingspan
- RC cars
- RC Boats
By Model recognition will change our newcomer stations SMART SX independently the respective model memory using the ID of the receiver. In a model change the data stored in the transmitter SMART SX model-specific options (such as trimming, servo directions, dual-rate) are thus always automatically available. The required in typical, simple entry transmitters Checking the servo directions or readjustment of the trims is thus eliminated.
The following receiver / IDs are available:
ID1 (activated SMART SX model storage 1)
ID2 (activated SMART SX model memory 2 II for EasyStar)
ID3 (activated SMART SX model memory 3 for EasyGlider PRO)
ID5 (activated SMART SX model memory 5 for Razzor)
ID6 (activated SMART SX model memory 6 for FunCopter)
ID7 (activated SMART SX model memory 7 for Funman)
ID9 (activated SMART SX model memory 9 for Shark)
ID10 (activated SMART SX model memory 10 for Panda)
ID21 (activated SMART SX model memory 21)
ID22 (activated SMART SX model storage 22)
The model data sets may transmitter side (SMART SX6) overwritten, or be aligned so that the receiver can be used universally.
The RX-5 ID-receivers can be operated without a remote control ID recognition with any other M-LINK and then correspond to a receiver RX-5 light M-LINK 2.4 Ghz.
Features:
- HOLD / FAIL-SAFE function
- Integral button and LED for: Binding, FAIL-SAFE programming, RESET Operating status information
- ID function for automatic switch model memories for SMART SX6
- VarumärkeMultiplex
