Castle Creations CASTLE-LINK Quick Connect
279 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: CC010-0079-00

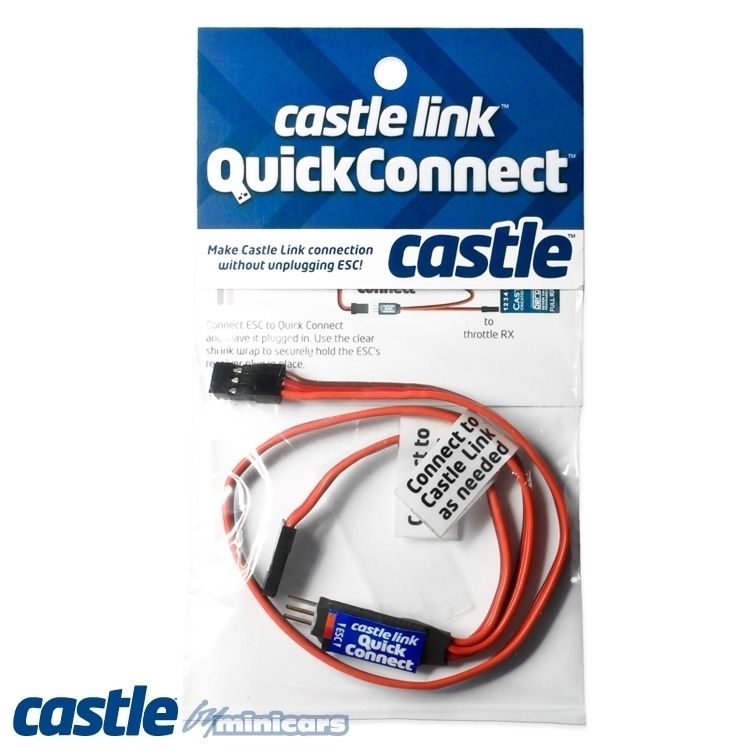

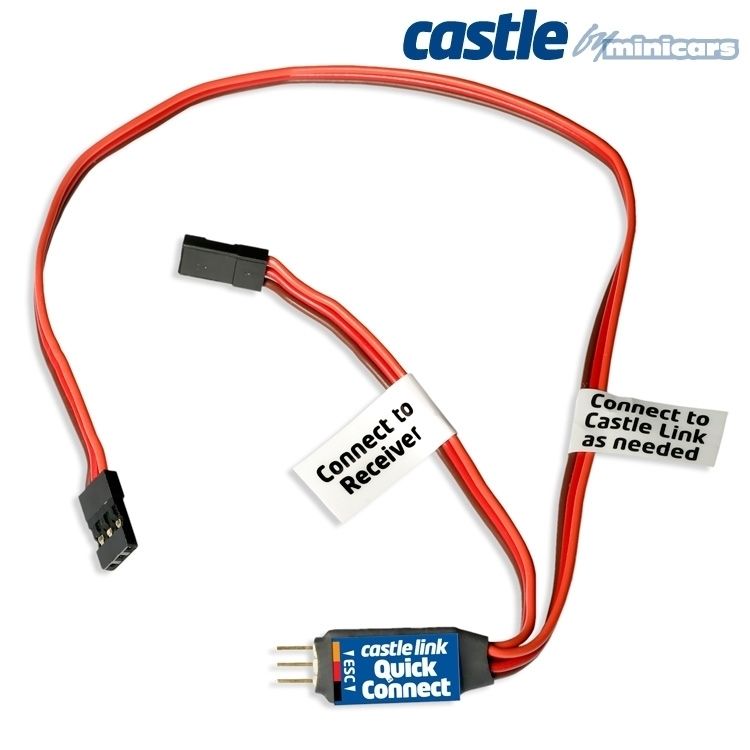

Castle Link Quick Connect
Experienced modelers go to great pains to tie down their servo and throttle leads, and some find unplugging a Castle controller from the receiver disrupts all their work. Many have asked for something like a Y connector that gives an open lead for easy Castle linking, but a traditional Y harness doesn't work when the other branch of the Y is connected to a receiver, the signal line must be disconnected from the receiver.Castle Quick Connect do just that. It detect the presence of a Castle Link adapter on the free lead and switch the controller's signal line from the receiver to the Castle Link. Easy as that.

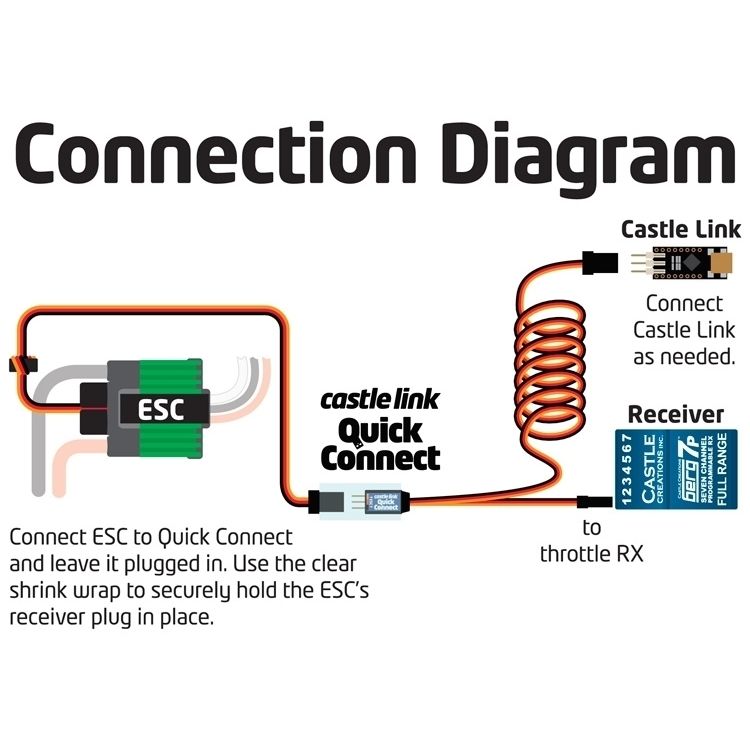

Follow the applicable Connection Diagram (found on the inside of the package or the link below) when connecting the Quick Connect. Don't forget to use the included piece of heat shrink tube to secure the ESC lead to the Quick Connect.
Note: Quick Connect will not work with the Field Programming Cards when used as a standalone programmer. It will ONLY work when using the Field Programming Card as a Castle Link adapter.
Quick_Connect_wiring.pdf
- VarumärkeCastle Creations
