DPSI Nano magnetic switch Cable 3.94in (AWG24)
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: A11090/1145

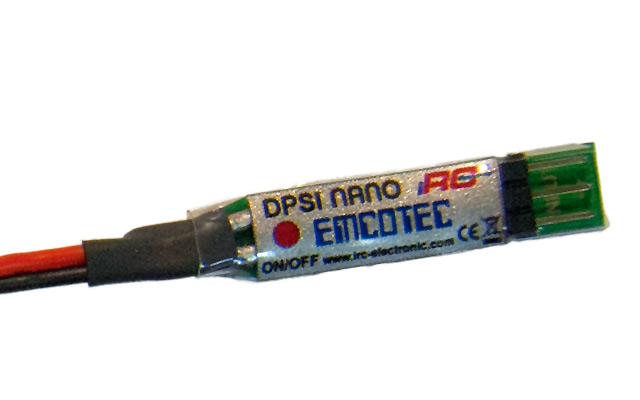

DPSI Nano magnetic switch
Product description and features
Compact and lightweight magnetic switch suitable for 7 amps permanent current. The switch can be turned on/off from the outside of the RC model using a magnet, so it is not necessary to drill any holes into the fuselage.
Due to its high current rating, its low weight and its compact dimensions, the DPSI Nano is also suitable for narrow fuselages as well as R/C cars.
Cable options
The DPSI Nano is available with 3.94in (AWG24) or 7.87in (AWG21) receiver connection cables.
Delivery contents
1 DPSI Nano magnetic switch, 1 magnetic switch actuator with keyring pendant and 1 quick reference guide.
Documentation
See a detailed documentation of the DPSI Nano in the Hacker Motor Wiki.
Important hint: If possibe please grab the DPSI Nano magnetic switch only laterally during installation. There are sensitive components on the top and bottom sides which can be damaged when grabbed to harsh.
Notice: The switching off process of DPSI works with a hall effect sensor. Hall effect sensors can be influenced by magnet fields. It is possible that the DPSI switches off when exposed to a very strong magent field (i.g. electric drive). Current-carrying cables generate a magnet field. So please run all cables which are carrying a high current (>100A) with a distance of at least 3cm (1.18in) from the DPSI.
| Specifications | |
| Nominal input voltage | 3,5V ... 10V |
| Output voltage | ungeregelt |
| Quiescent current (switched off) | ca. 6µA |
| Quiescent current (switched on) | ca. 12mA |
| Zulässiger Temperaturbereich | -20°C ... +70°C |
| Dimensions | ca. 50mm x 9mm x 5mm |
| Weight | ca. 4g |
| Max. permanent current | 7A |
| Max. peak current | 20A / 10A (30 Sekunden) |
| Drop-Out-Verluste @ 7A | ca. 16mV |
