Beskrivning
Art.nr: A11055
DPSI Micro MPS magnetic switch
Product description and features

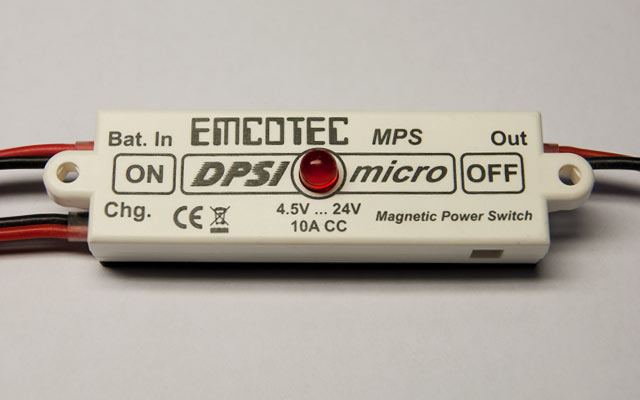

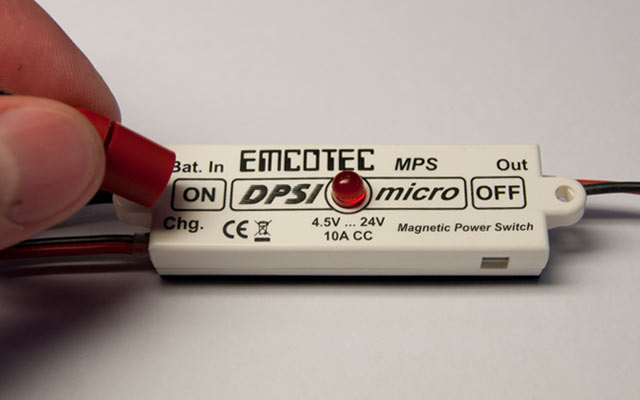

Compact and failsafe magnetic switch e. g. for the receiver system. Contactless switching with an external magnet through the aircraft fuselage wall. From the outside only the status LED is visible.
Features
| Feature | Implemented |
|---|---|
| Electronic switch | yes, magnetic switch |
| Dual power supply | no |
| Voltage regulator | no |
| Battery monitoring | no |
| Charging socket | yes |
Connections

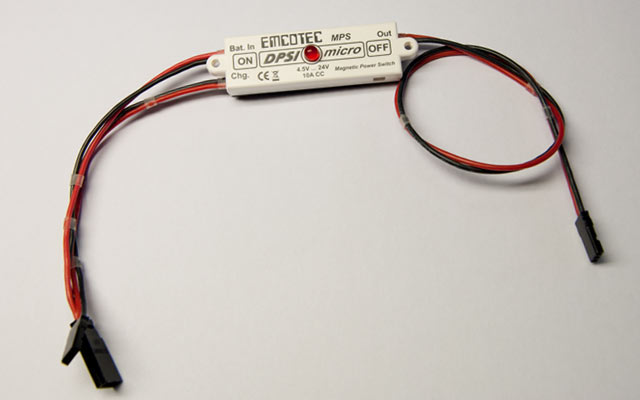

- Connection battery (Bat.In): JR plug, approx. 12cm (4.7in) cable
- Charging socket (Chg.) JR socket, approx. 12cm (4.7in) cable
- Receiver connection (Out): JR socket, approx. 28cm (11in) cable
Delivery contents

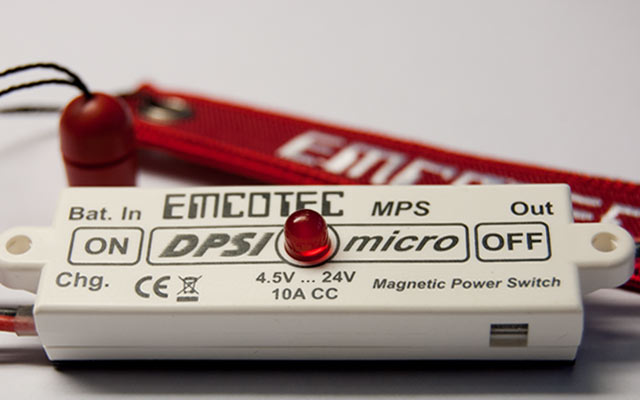

1 DPSI Micro MPS magnetic switch, 1 switching magnet with EMCOTEC label, 1 vibration insulator, 2 washers, 2 screws, 1 drilling template and 1 quick reference guide.
Documentation
See a detailed documentation of the DPSI Micro MPS magnetic switch in the Hacker Motor Wiki.
Hint: The switching off process of DPSI works with a hall effect sensor. Hall effect sensors can be influenced by magnet fields. It is possible that the DPSI switches off when exposed to a very strong magent field (i.g. electric drive). Current-carrying cables generate a magnet field. So please run all cables which are carrying a high current (>100A) with a distance of at least 3cm (1.18in) from the DPSI.
| Specifications | |
| Max. permanent current | 10A |
| Max. peak current | 25A |
