Beskrivning
Art.nr: A11059

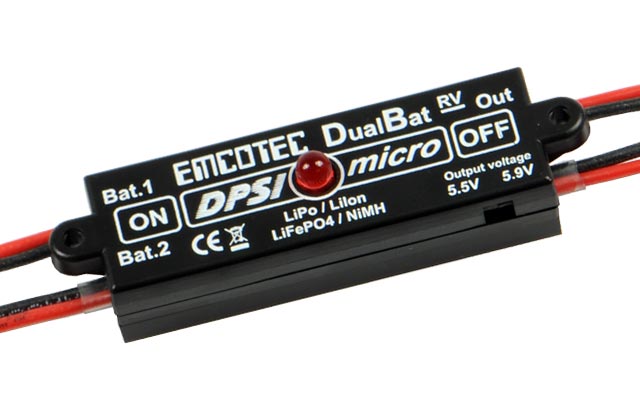

DPSI Micro DualBat 5.9V/7.2V MPX-2xMPX dual power supply
Product description and features
Dual power supply for 5/6cell NiCad/NiMH as well as LiIon/LiPo and LiFePo4 batteries. Regulated and stabilized output voltage 5.9 volts or 7.2 volts adjustable.
Dual electronically On/Off-switch for complete contact less switching operation with an external magnet from outside.
The used battery type and the low voltage detection can be programmed. Intelligent voltage monitoring with optical error indication.
Designed for 5 up to a max. of 10 servos. Supports 4A (@5.9V) continuous current and 25A peak current.
Information

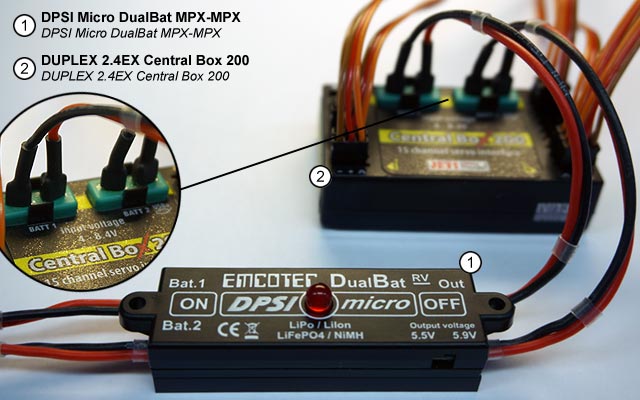

Suitable as voltage regulator for DUPLEX 2.4EX Central Box 200 by Jeti.

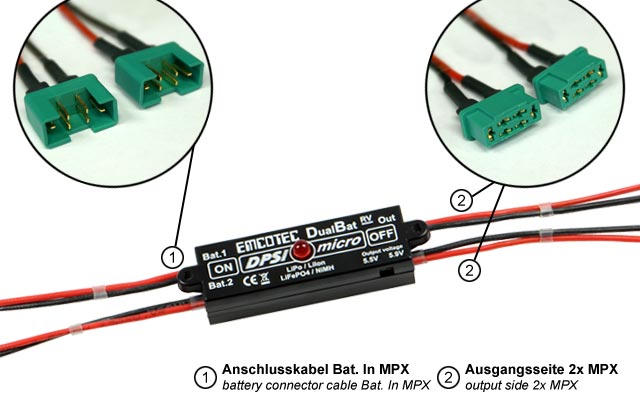

Connectors
- 2 MPX battery connector cables with flexible silicone strand 0.5 mm²/AWG21 cross section.
- Dual MPX connectors with high grade silicone strand 0.5 mm²/AWG21 cross section on output side.
- All connectors are gold plated (FCI contacts).
Delivery contents
1 DPSI Micro DualBat, switching magnet with EMCOTEC tag, screws, screwing collar, drilling template, vibration protection and quick reference guide.
Documentation
See a detailed documentation of the DPSI Micro DualBat in the Hacker Motor Wiki.
- VarumärkeEmcotec
