Beskrivning
Art.nr: A11052

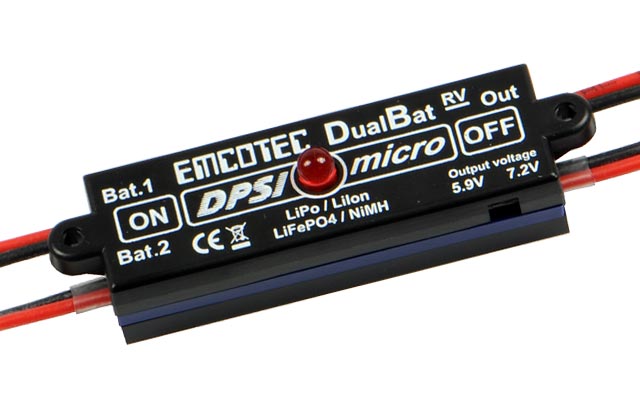

DPSI Micro DualBat 5.9V/7.2V JR dual power supply
Product description and features
Dual power supply for 5/6cell NiCad/NiMH as well as LiIon/LiPo and LiFePo4 batteries. Regulated and stabilized output voltage 5.9 volts or 7.2 volts adjustable.
Dual electronically On/Off-switch for complete contact less switching operation with an external magnet from outside.
The used battery type and the low voltage detection can be programmed. Intelligent voltage monitoring with optical error indication.
Designed for 5 up to a max. of 10 servos. Supports 4A (@5.9V), 6A (@7.2V) continuous current and 25A peak current.

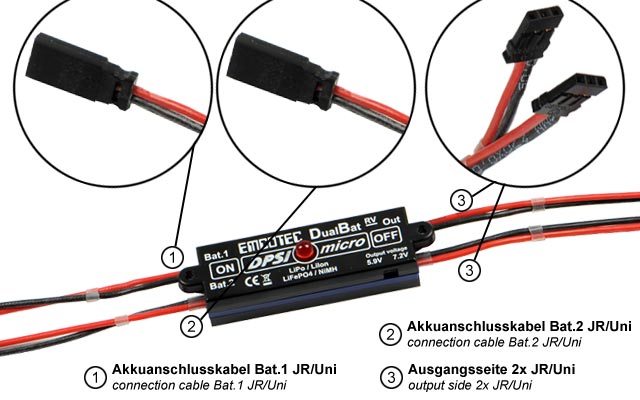

Connectors
- 2 battery connector cable JR/Uni with flexible silicone strand 0.5 mm²/AWG21 cross section.
- Dual JR/Uni connectors with high grade silicone strand 0.5 mm²/AWG21 cross section on output side.
- All connectors are gold plated (FCI contacts).
Delivery contents
1 DPSI Micro DualBat, switching magnet with EMCOTEC tag, screws, screwing collar, drilling template, vibration protection and quick reference guide.
Documentation
See a detailed documentation of the DPSI Micro DualBat in the Hacker Motor Wiki.
Hint: The switching off process of DPSI works with a hall effect sensor. Hall effect sensors can be influenced by magnet fields. It is possible that the DPSI switches off when exposed to a very strong magent field (i.g. electric drive). Current-carrying cables generate a magnet field. So please run all cables which are carrying a high current (>100A) with a distance of at least 3cm (1.18in) from the DPSI.
| Specifications | |
| Power sources | 5 bis 7-zellige NiCd / NiMH-Akkus, 2-zellige LiIon, LiPo, LiFePO4-Akkus |
| Operating voltage range | 4,8V bis 12V |
| Nominal input voltage | 6,0V bis 8,4V |
| Output voltage | 5,9V oder 7,2V per Schiebeschalter einstellbar |
| Quiescent current (switched off) | <1µA pro Akku |
| Quiescent current (switched on) | ca. 90mA gesamt (LED Ein) |
| Max. permanent current @ 5.9V | 4A |
| Max. peak current @ 5.9V | 10A |
| Maximale Verlustleistung (Dauer) | 8W |
| Umgebungsbedingungen | -10°C bis +50°C |
| Zulässiger Temperaturbereich | -25°C bis +85°C (Lagerung) |
| CE-Prüfung | gemäß 2004/108/EC |
| Max.peak current (20ms) | 25A |
| Drop-Out-Verluste @ 2A | 0,1V |
| Dimensions | 73,4mm x 19,4mm x 14,1mm |
| Weight | 34g |
| Max. Dauerstrom @ 7,2V (10 Minuten) | 6A |
- VarumärkeEmcotec
