Hobbywing UBEC 10A 2-6S
517 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: HW30603000

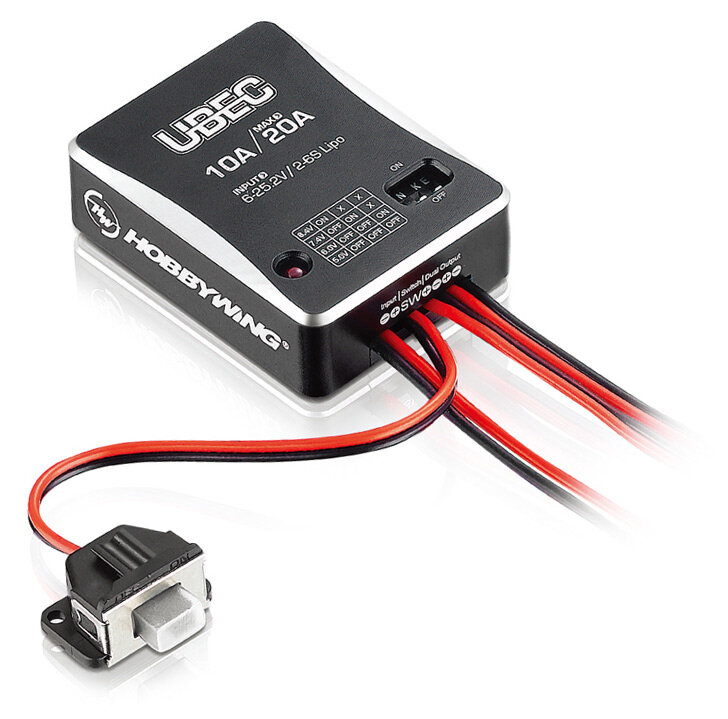

Hobbywing UBEC-10A (2-6S)
This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 2-6S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of up to 10Amp. As the UBEC has such a powerful output capability, so it's particularly applicable for large helicopters and fixed-wing aircraft.Features:
- It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%
- 4 options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc
- It owns BEC shoot-through protection, which prevent the input voltage from directly flowing to the output end and causing damages to receivers, servos and other electronic devices
- It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable
- 2 cables are connected in parallel at the output end of the UBEC, allow larger current to flow into the receiver
- It has one status LED, which lights up when the UBEC works normally
- The external switch can turn on/off the UBEC easily
- Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction
Specs:
- Input Voltage: 6V-25.2V (2-6S LiPo)
- Output Voltage: 5.0V/6.0V/7.4V/8.4V
- Continuous Current: 10A
- Peak Current: 20A
- Dimensions: 43.1 x 32.3 x 12.5mm
- Weight: 36g
- VarumärkeHobbywing
