Tamiya 1/14 MAN TGX 26.540 6x4 XLX 56325

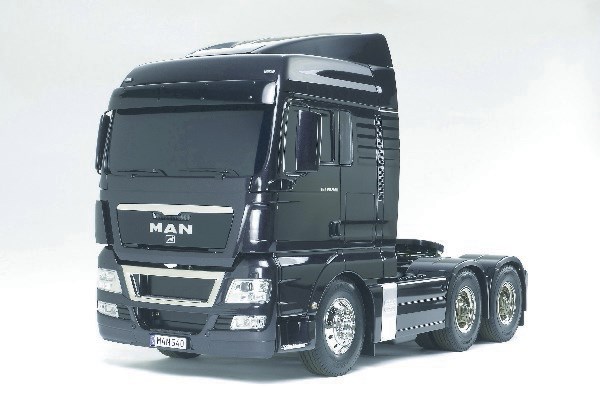

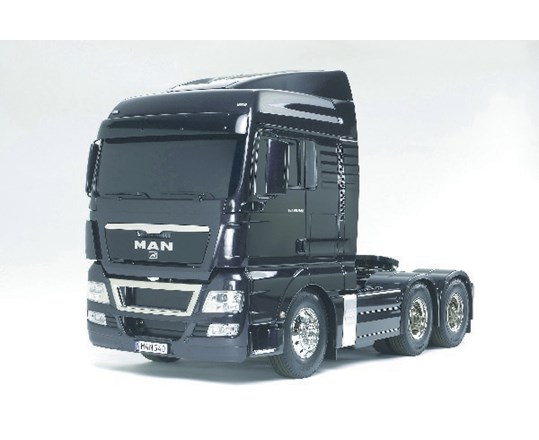

1/14 MAN TGX 26.540 6x4 XLX

Also known as transporters that are used by F1 teams today, MAN Company's tractor truck the TGX 26.540 6x4 XLX was awarded “The 2008 Truck of the Year.”

This award winning truck comes reproduced as a 1/14 scale electric R/C model. The model features a ladder frame chassis with aluminum channels, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials. Providing this truck with a realistic scale finish are parts which feature two kinds of metal-plating and metal transfers to beautifully depict details such as the front grille's emblem.

Furthermore, the chassis features a 3-speed transmission which allows gear shifting while driving via transmitter, with the sound and lighting actions reproduced by the separately available Multi Function Control (MFC-01) unit.

Specifications:

? Length: 526mm, Width: 193mm, Height: 301mm, Weight (without options): Approx. 3.8kg ? Wheelbase: 237+103mm ? Tread: 156mm (Front), 138mm (Rear, Double Tire) ? Chassis: Aluminum & Polycarbonate Resin Ladder Frame ? Suspension: Front/Rear Leaf Springs ? Caster Angle (Front/Rear): 0°/0° ? Camber Angle (Front/Rear): 0°? Toe Angle: 0°(Front & Rear) ? Dampers: Aluminum Dummy Dampers (Front & Rear) ? Drivetrain: Rear Double Axle Drive ? Transmission: 3-gear transmission (gear shifting operated via transmitter) ? Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1 ? Diff. Gear: 3-bevel diff ? Motor: Type RS540 ? Tire Width: 22mm (Front & Rear) ? Tire Diameter: 83mm (Front & Rear)
