Spektrum Firma 8A Sensored Brushless ESC / Motor Combo: 1/24 Rock Crawlers
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: SPMXSEMC18
Key Features
- Reliable 4500Kv Sensored Brushless Motor with excellent slow speed control
- Drop-in conversion to all Axial 1/24th Scale SCX24 and AX24 RTR vehicles*
- All included – includes motor, ESC, sensor wire and pinion gears
- Crawler Mode: Forward and instant reverse with drag brake

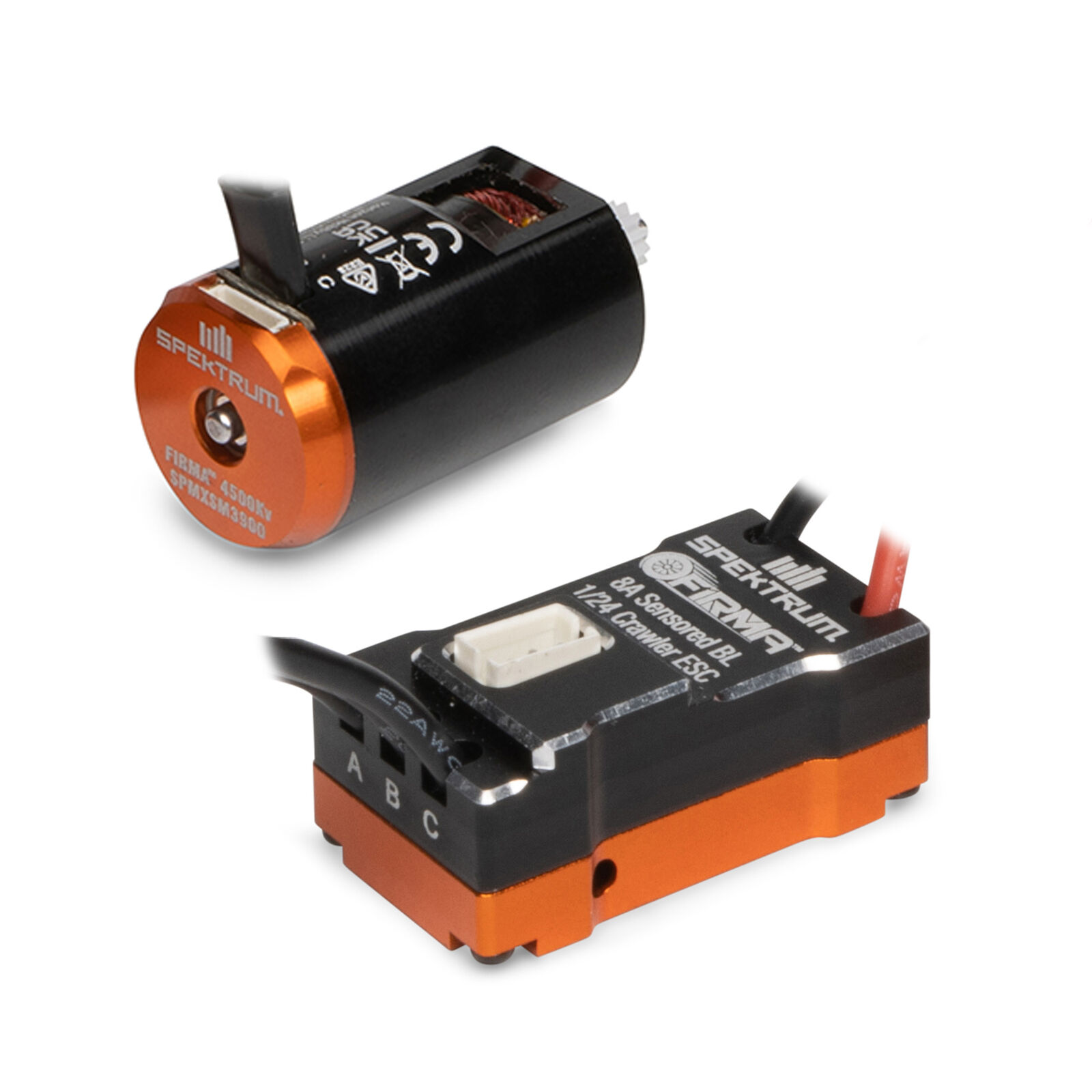

In The Box
- (1) 4500Kv Sensored Brushless Motor
- (1) 8 Amp (40 Amp Burst) 1-2S Compatible ESC
- (1) Firma SCX24/AX24 Brushless Sensored Combo Instruction Manual
Introduction
The Spektrum™ Firma™ 1/24th Brushless ESC + Motor Combo is a great choice for micro crawlers and more running on 2S LiPo power. It features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle. Perfectly suited for trail driving and rock crawling competitions. This advancement in sensored motor control allows the ESC to match the throttle input to the motors RPM with unmatched precision. This combo is specifically designed for the Axial® SCX24 & AX24 platform to provide the ultimate performance for maximum power and realism. Preinstalled with 2mm bullet connectors for easy installation.
Features
- Reliable 4500Kv Sensored Brushless Motor with excellent slow speed control and smooth operation
- Drop-in conversion to all Axial 1/24th Scale SCX24 & AX24 RTR vehicles.
- *Note: Axial SCX24 vehicles equipped with HRZ00014 2-in1 Receiver and HRZ00015 transmitter requires an SLT3 Transmitter and receiver upgrade for functionality. Please refer to the manual for more information. (2021 Ford Bronco, Jeep GT Gladiator, and Jeep Wrangler will require this upgrade)
- All included – includes motor, ESC, sensor wire and pinion gears
- Crawler Mode: Forward and instant reverse with drag brake
- 8 Amp (40 Amp Burst) 1-2S Compatible ESC
- Compact Size and Ready to Install
- JST PH 2.0 connector to fit the Dynamite 7.4V 350mAh 2S Lipo Battery
- Durable design and maintenance-free over brushed motors
- Optimized for efficiency and longer run times
Video Overview

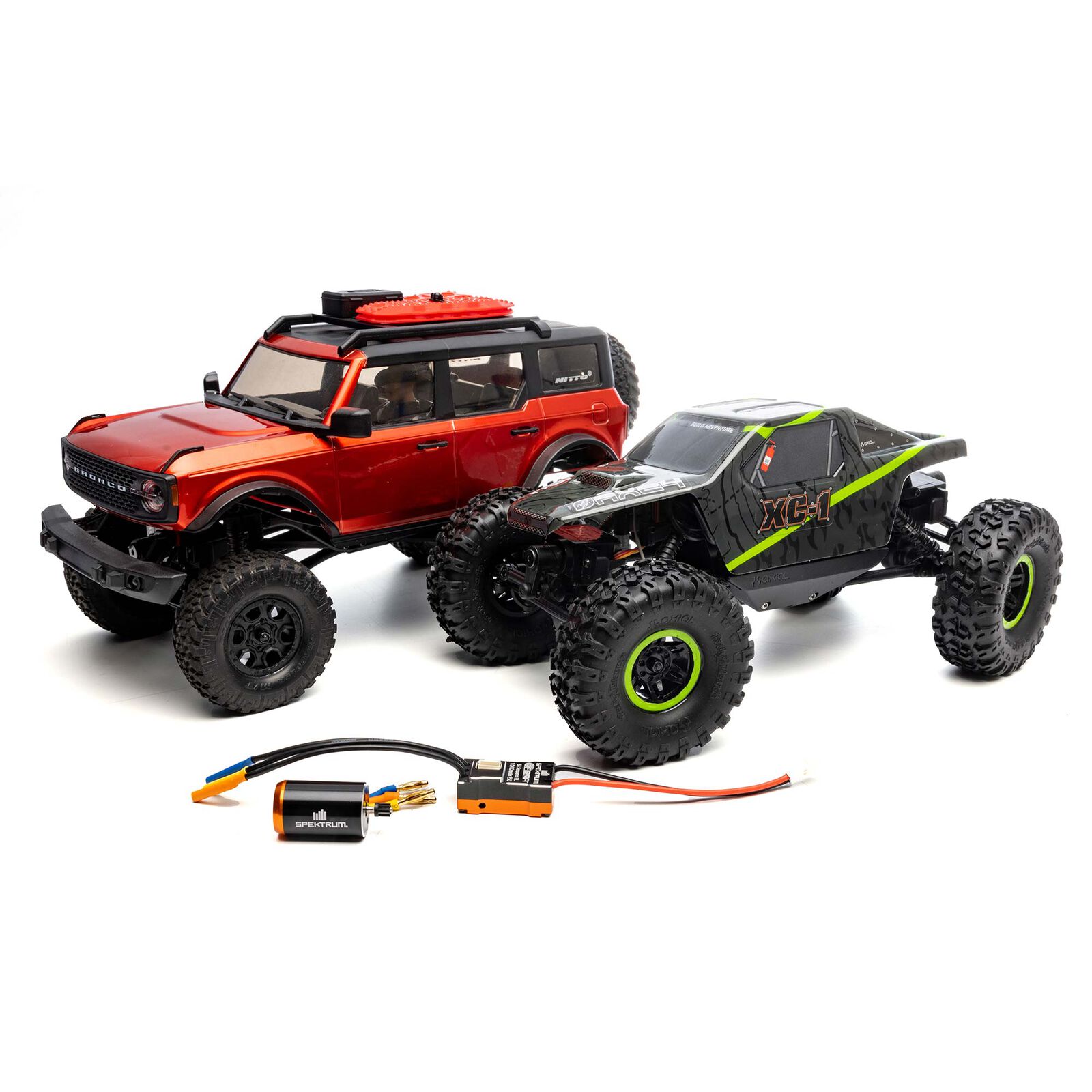

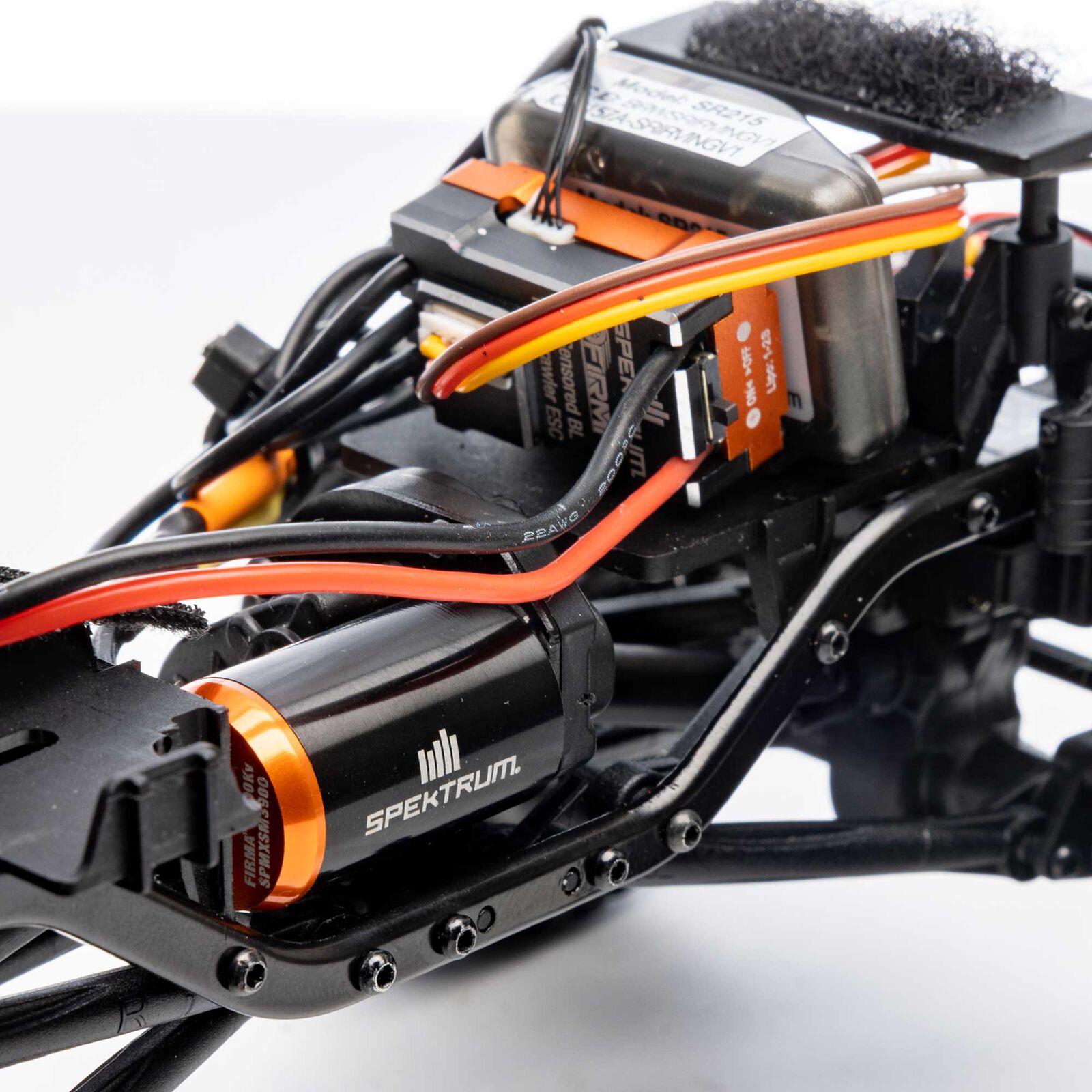

DROP-IN UPGRADE FOR AXIAL SCX24 & AX24 VEHICLES
The Spektrum Firma 1/24th Scale Sensored Brushless motor and ESC provides Axial SCX24 & AX24 enthusiast with a drop-in motor & ESC system to take their crawling to the next level.
ALL-INCLUDED
System includes motor, ESC, sensor wire and pinion gears and is preinstalled with 2mm bullet connectors and JST PH 2.0 battery connector to fit the Dynamite 7.4V 350mAh Lipo battery included with the Axial SCX24 & AX24 vehicles.
Product Specifications
| Auto Cutoff | Yes |
| BEC | Yes |
| BEC Continous Current | 0.3A |
| BEC Voltage | 5V |
| Brakes | Integral with ESC |
| Connector Type | PH 2.0 (High-Current Ultra Micro) |
| ESC Type | Brushless Sensored |
| Forward | Yes |
| Input Voltage | 1 - 2S LiPo |
| Low-Voltage Cutoff Programmable | No |
| Maximum Burst Current | 40A |
| Maximum Continuous Current | 8A |
| Motor Type | Brushless |
| Number of Poles | 2 |
| Outer Diameter | 0.6" (15 mm) |
| Output Connector | 2mm Bullet |
| Overload Protection | Yes |
| Product Height | 0.46" (12 mm) |
| Product Length | 1.05" (27 mm) |
| Product Weight | 10g ESC / 16g Motor |
| Product Width | 0.6" (15 mm) |
| Programmable | No |
| Reverse | Yes |
| RPM/Volt (Kv) | 4500 |
| Sensored | Yes |
| Water-Resistant | No |
- VarumärkeSpektrum
