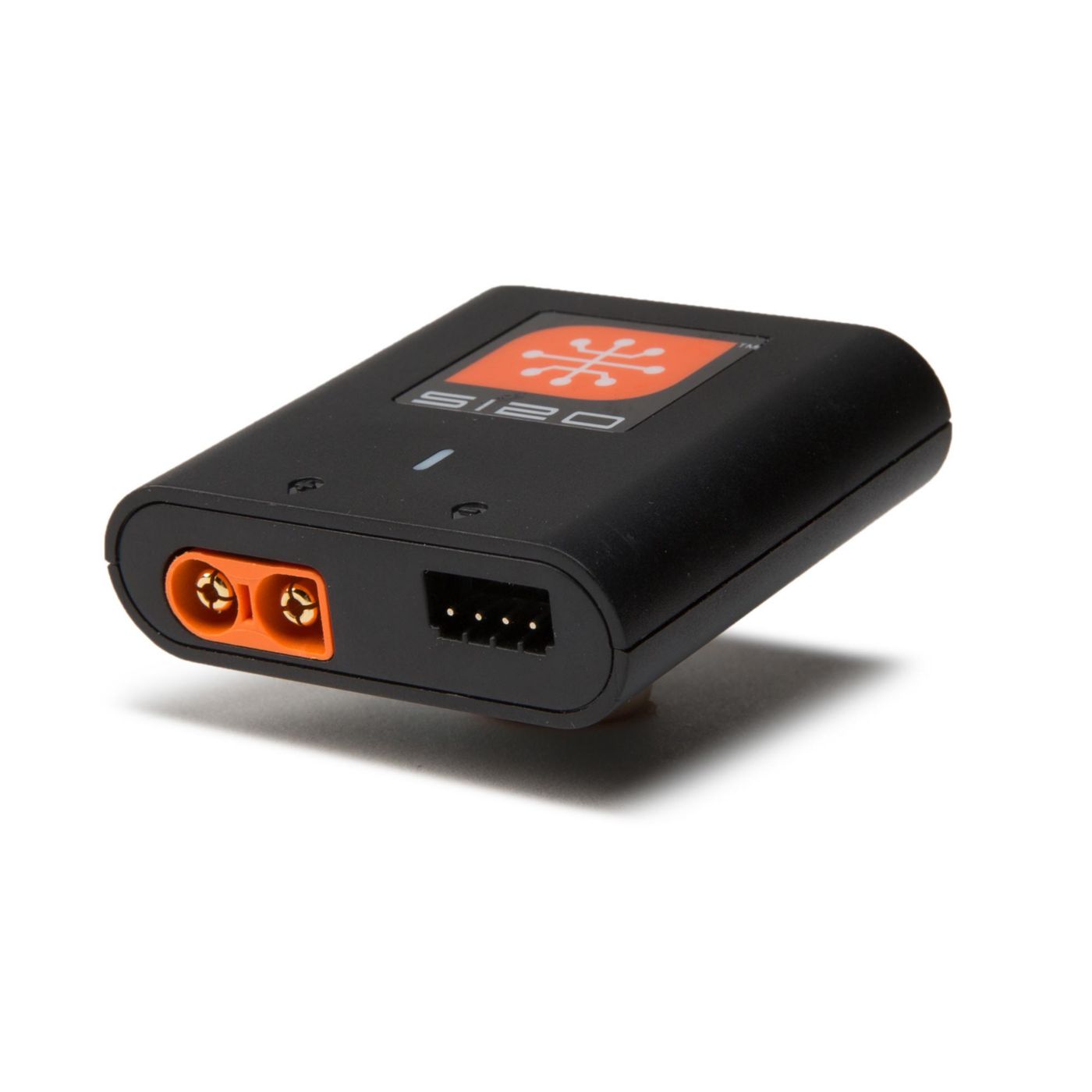

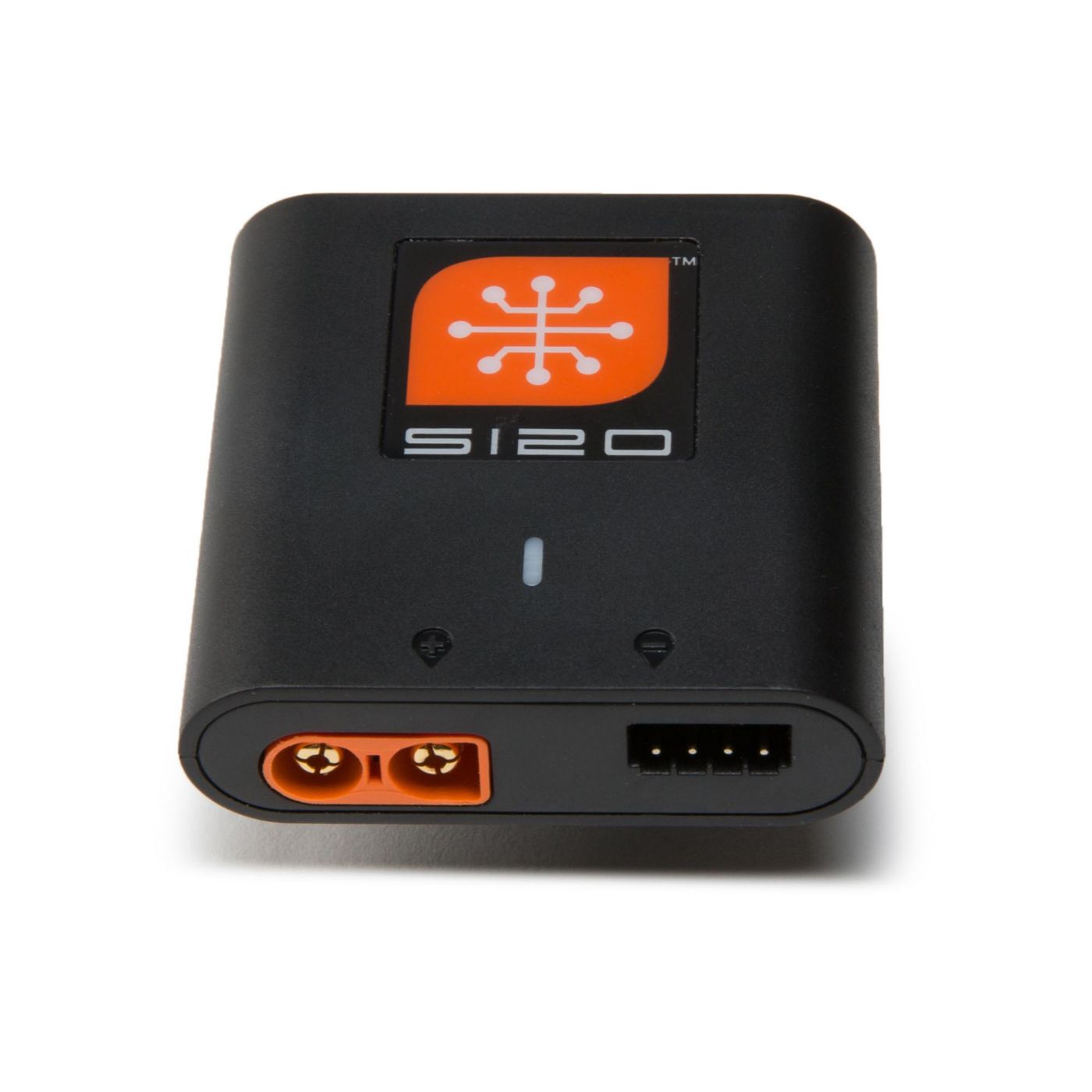

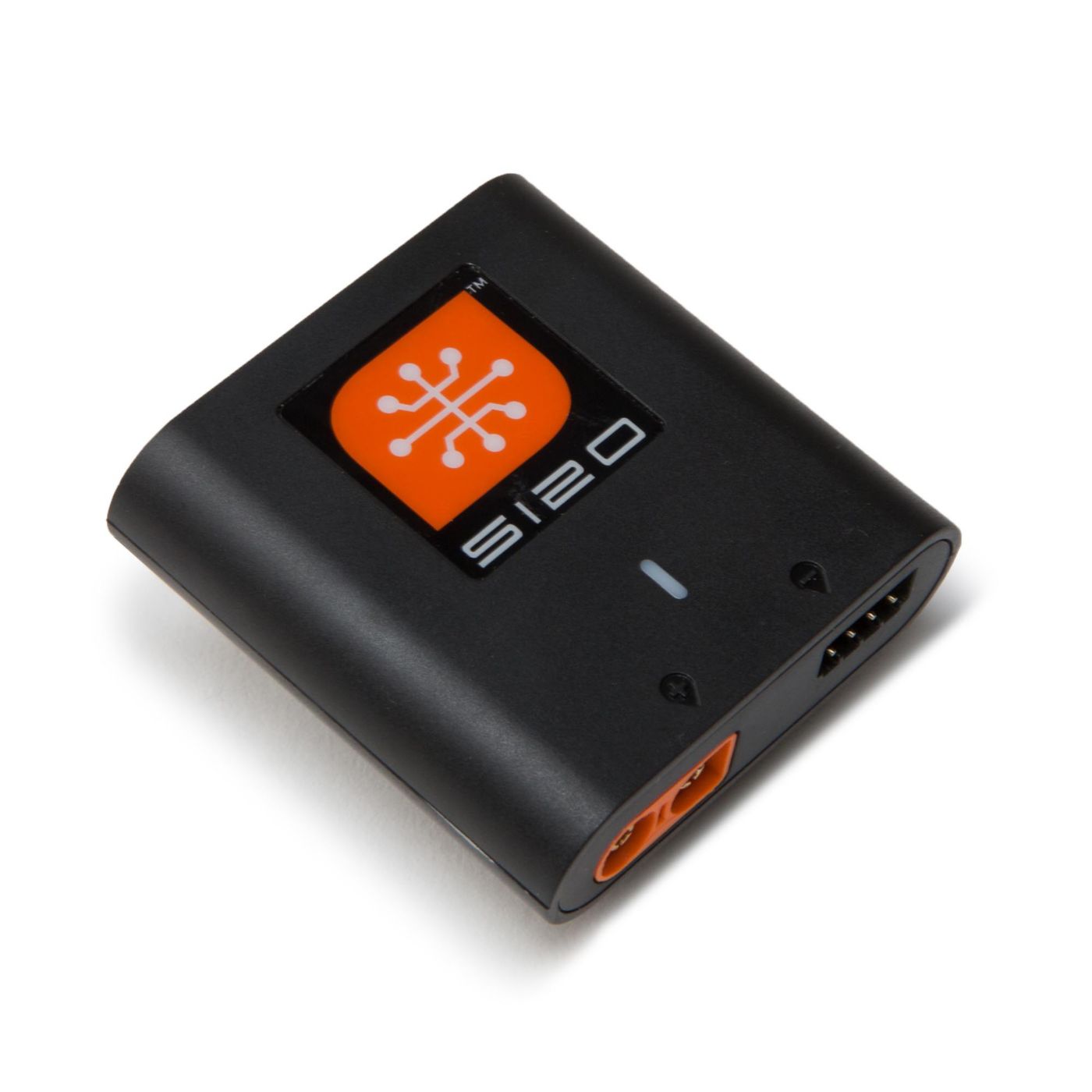

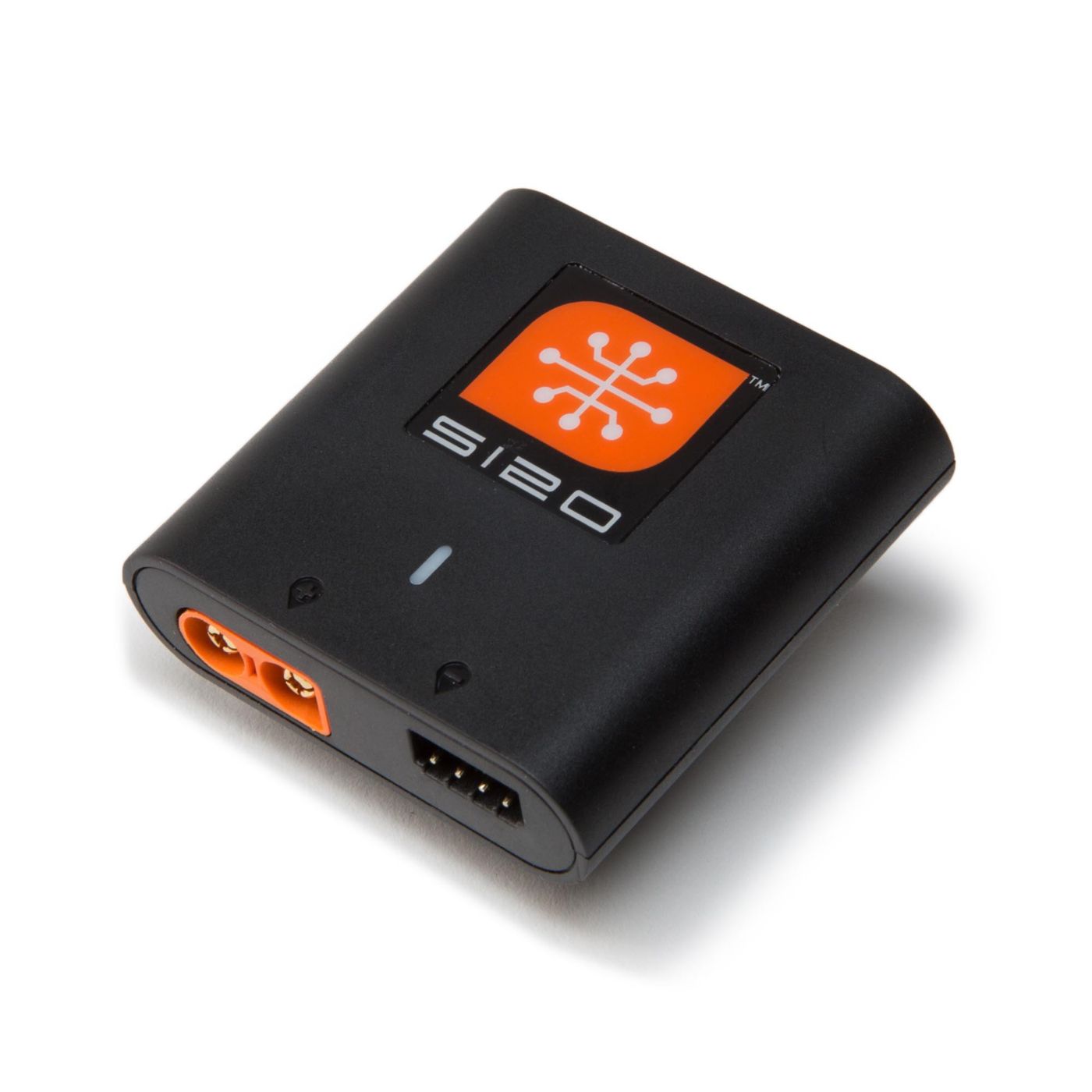

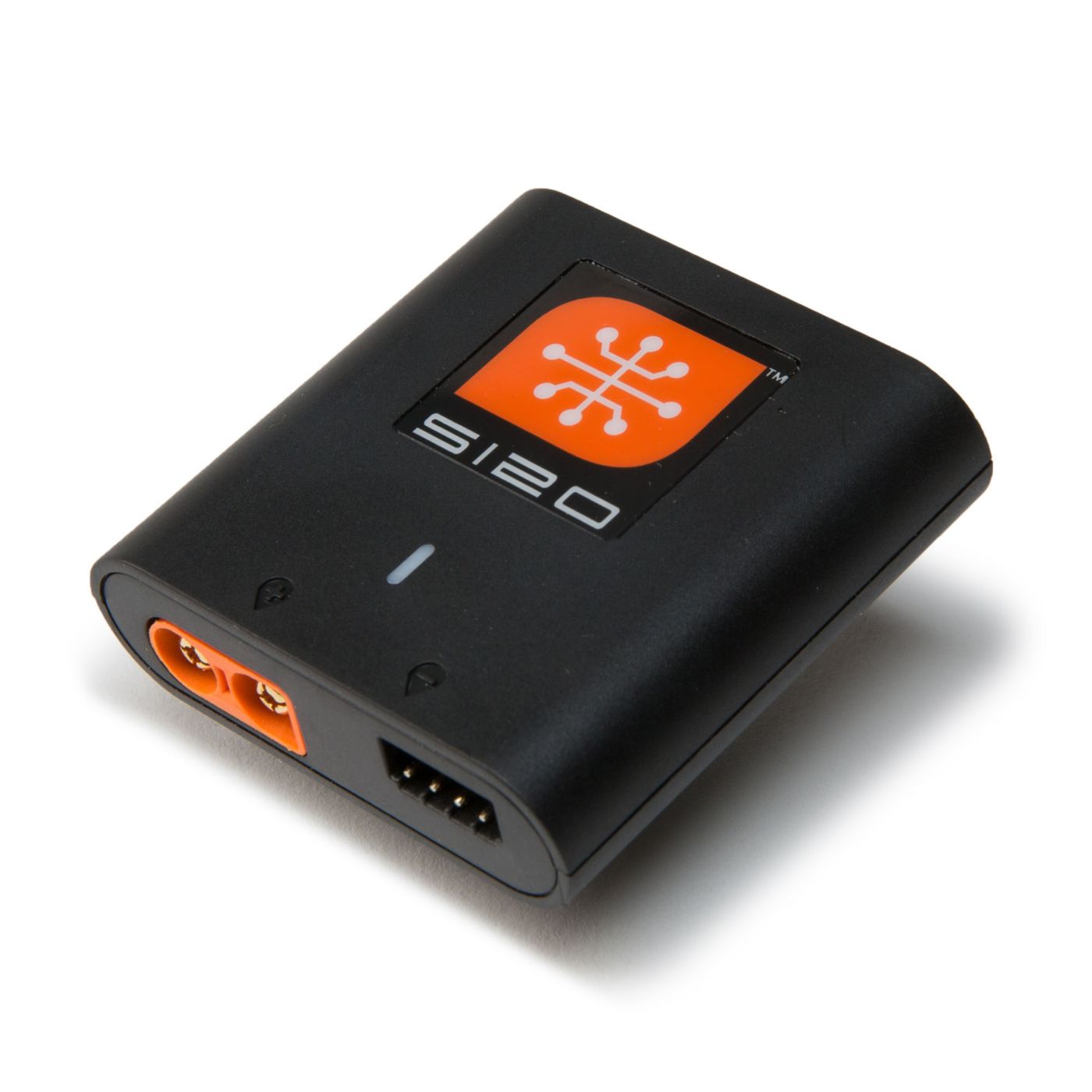

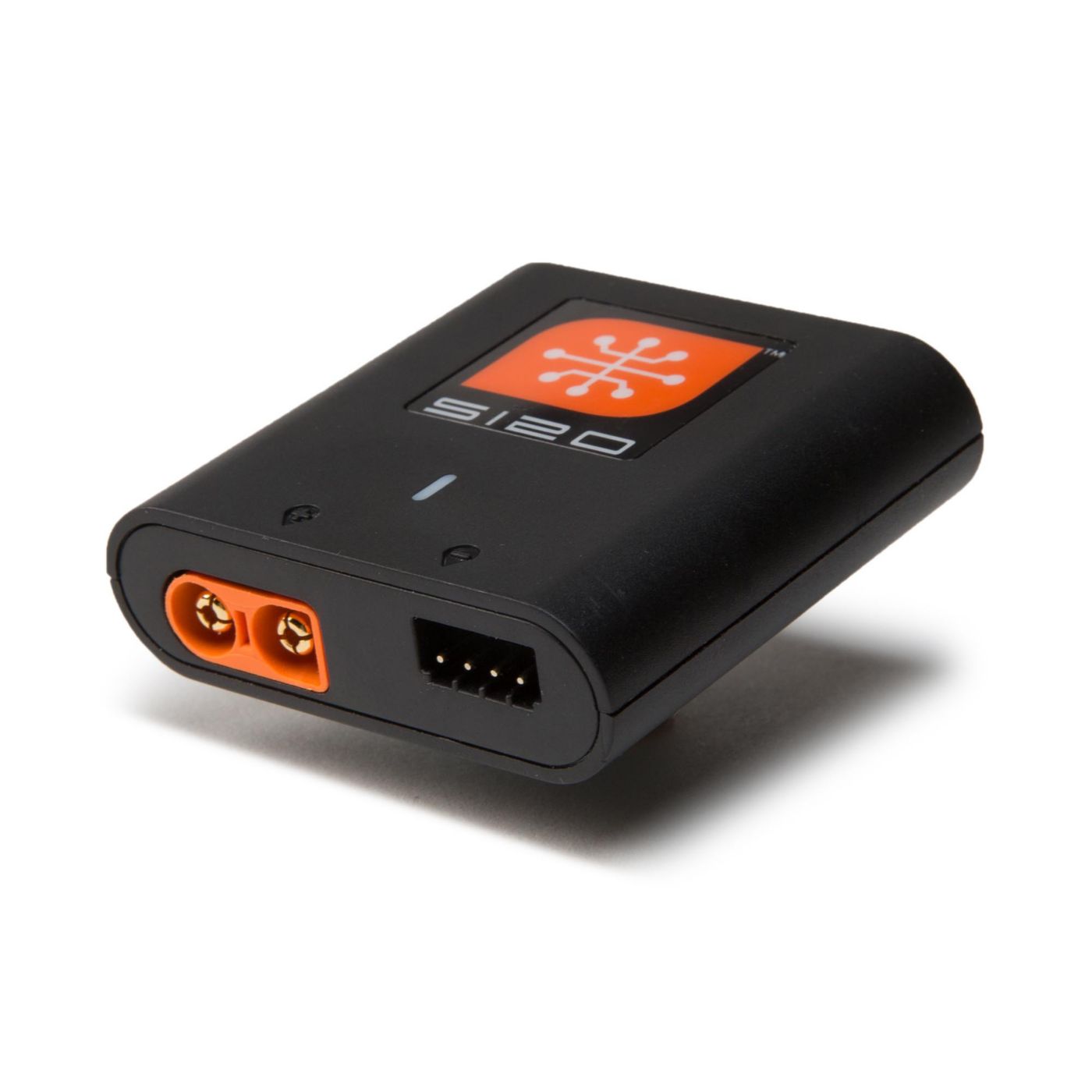

Spektrum S120 USB-C Smart Charger, 1x20W
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: SPMXC1020
Product Details
Key Features
- Easily charge compatible smart batteries from convenient USB power (power supply not included)
- Automatically detects smart battery information and begins charging when connected
- Compatible with 2-3 cell Smart LiPo Batteries
- Uses the Popular IC3™ Connector and Balance Port
- 2-3 Cell (LiPo), 6-7 Cell (NiMH) Smart Battery Compatible
In The Box
- (1) S120 USB-C Smart Charger
- (1) USB-C to USB Cable
- (1) Product Manual
Needed to Complete
- (1) USB Power Source
Key Features
- Easily charge compatible smart batteries from convenient USB power (power supply not included)
- Automatically detects smart battery information and begins charging when connected
- Compatible with 2-3 cell Smart LiPo Batteries
- Uses the Popular IC3™ Connector and Balance Port
- 2-3 Cell (LiPo), 6-7 Cell (NiMH) Smart Battery Compatible
How-To Video
Overview
The Spektrum™ S120 USB-C Smart Charger features Spektrum Smart Charging technology in a small and simple to use platform. This 20W charger easily charges compatible Spektrum Smart batteries conveniently from almost any USB power source. When a Spektrum Smart battery is connected, the S120 immediately detects the battery information and automatically begins to charge. Spektrum Smart charging is designed to be safe, intuitive and convenient so you can simply look forward to putting your batteries back to action!
Charging is easy with the Spektrum S120 USB-C Smart Charger. Simply use the included USB cable to supply power to the S120 Smart Charger from a USB power source (not included). Plug in your Spektrum Smart battery (Lipo versions require the balance lead to be connected as well as the main lead) and the charger will automatically start charging. Monitor your charging status via a blinking purple or yellow LED. Once your charging is complete the LED will glow green.
*Please note that the Spektrum S120 Charger will ONLY CHARGE 2-3 cell SPEKTRUM SMART LiPo/LiFe/LiHV and 6-7 cell SMART NiMh Batteries*
Product Specifications
| Battery Balance Connector | JST_XH |
| Charge Protection Circuitry | Yes |
| Number of Cells | 2-3 |
| Number of Output Ports | 1 |
| Power Source | USB |
| Selectable Charge Rate | No |
| LiPo Compatibility | 4S |
| Input Voltage | 5-12VDC USB charge port, USB type C cable included, power supply required |
| Power (watts) | 20 - 49W |
| Product Height | 0.55" (14mm) |
| Application | Only compatible with Spektrum SMART batteries |
| Output | Up to 2A (depending on Power Supply and Battery) |
| Output Connector | IC3 |
| USB Power out | No |
| Product Width | 2" (51mm) |
| Software Updates | Yes |
| Technology | Smart |
| Maximum Charge Rate | 1 to 2 Amps |
| Product Length | 2" (51mm) |
| Reverse Polarity Protection | Yes |
| Thermal Protection | Yes |
| Battery Type | Smart Only |
| Programmable | No |
- VarumärkeSpektrum
