Castle Creation Direct Sensorkabel 300mm

Castle - Direct Connect Sensor Wire 300mm

Clean Up Your Wiring

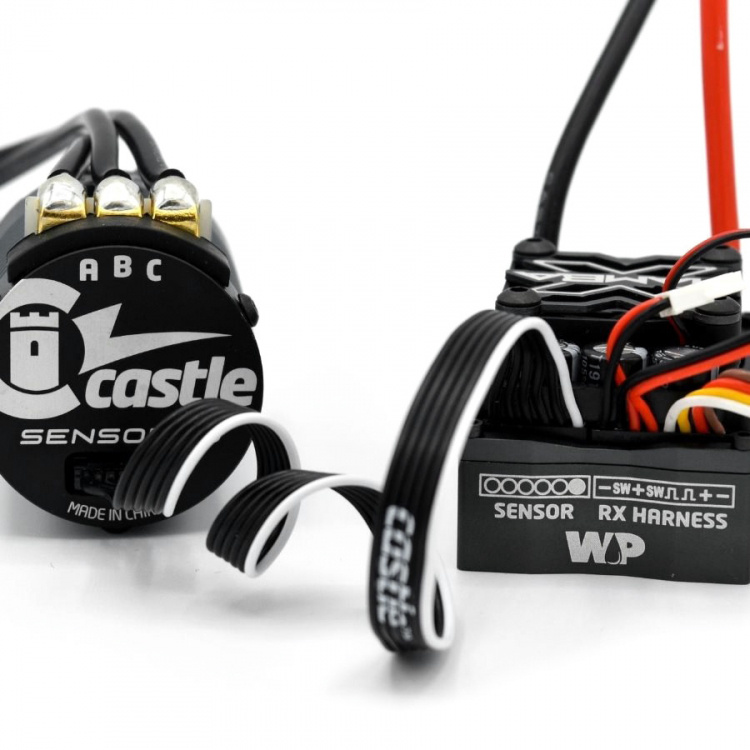

The Direct-Connect Sensor Wire eliminates the need for the Castle sensor harness adapter. This eliminates a connection point and makes your installation cleaner.

One end has the standard ROAR sensor plug that connects to the back of any sensored motor. The other end plugs directly into any sensored capable waterproof Castle ESC.

Compatible ESCs:

• Mamba Micro X
• Mamba X
• Mamba Monster X
• Mamba Monster X 8s
• Mamba XLX2

Available lengths:

• 200mm
• 250mm
• 300mm - Included with XLX2 ESC

Installation:
The Castle Creations Direct Sensor Wire helps clean up your wiring. It eliminates the need to use the Castle Sensor Harness that is included with Castle waterproof ESCs.

• Compatible with all sensored brushless motors.
• Compatible with all Castle waterproof sensored ESCs: Mamba Micro X, Mamba X, Mamba Monster X, Mamba Monster X 8s.

Motor Installation:
Plug new direct connect sensor wire into the back of the motor. The plug is keyed so it will only insert correctly one way.

Mamba Micro X Installation:

1. Unplug existing sensor harness (or dust cover) from ESC.
2. Plug in new direct connect sensor wire; mind the orientation by aligning the white wire to the corresponding whit dot on the side of the ESC.

Mamba X Installation:

1. Remove 2 screws beside capacitors, using 1.5mm hex.
2. Remove wire harness retainer.
3. Unplug existing sensor harness from ESC.
4. Plug in new direct connect sensor wire; mind the orientation by aligning the white wire to the corresponding whit dot on the side of the ESC.
5. Reinstall wire harness retainer and screws.

Mamba Monster X Installation:

• Coming soon!

Mamba Monster X 8s Installation:

• Coming soon!
