Savöx SB-2274SG Servo 25Kg 0,08s HV Alu Brushless Stäldrev
1 405 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MC_SAV-SB2274SG

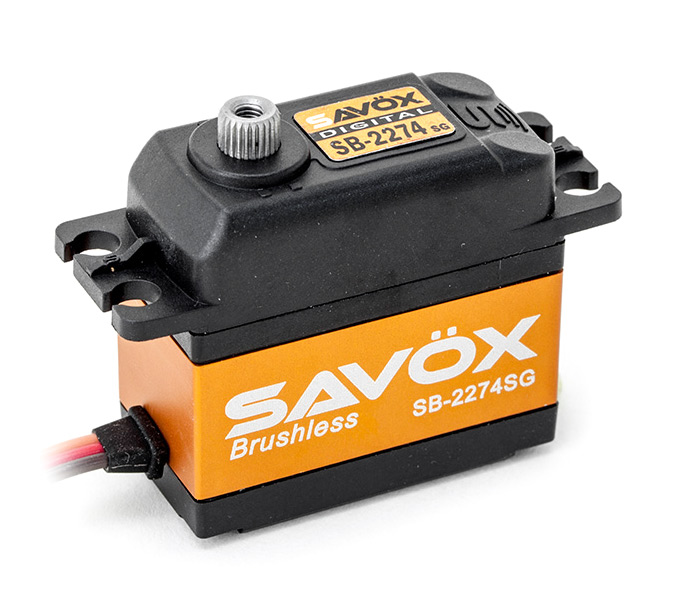

SAVÖX SB-2274SG - High Voltage Brushless Steel-Geared High Speed/Torque Servo
The Savox SB-2274SG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.Features:
- High Voltage

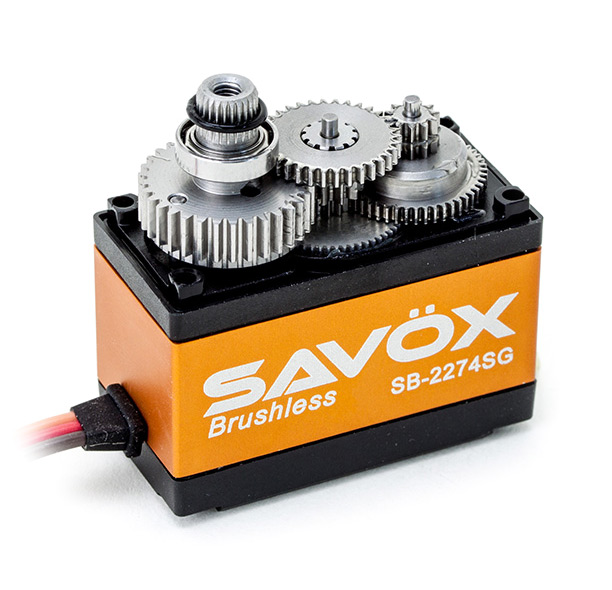

- Unique steel gear train
- Brushless motor for smooth operation and efficiency
- Ideal for 1/10, 1/8 buggies, and large scale aircraft
Specifications:
- Torque @ 6V: 20kg/cm
- Torque @ 7.4V: 25kg/cm
- Speed @ 6V: 0.105 sec/60 deg
- Speed @ 7.4V: 0.08 sec/60 deg

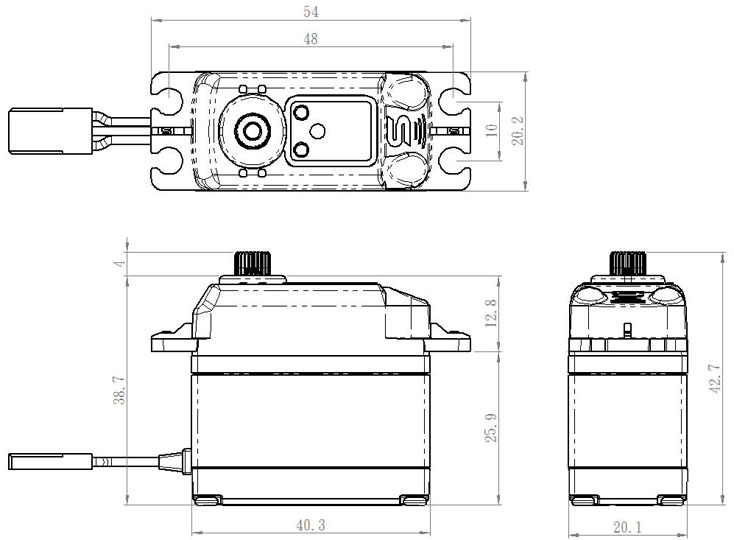

- Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
- Weight: 69g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
- FabrikatSavöx
- Servo TypeBrushless High Voltage
- Operating Voltage:7,4 V
- Operating Speed (6.0V):0,105 sek/60°
- Operating Speed (7,4V):0,08 sek/60°
- Stall Torque (6.0V):20,0 kg/cm
- Stall Torque (7,4V):25,0 kg/cm
- Motor Type:Borstlös
- Bearing Type:Dubbla Kullager
- Gear Type:Metall
- Case:Metal
- Dimensions:40,3 x 20,2 x 38,7 mm (L x B x H)
- Vikt:69 g
- VarumärkeSavöx
