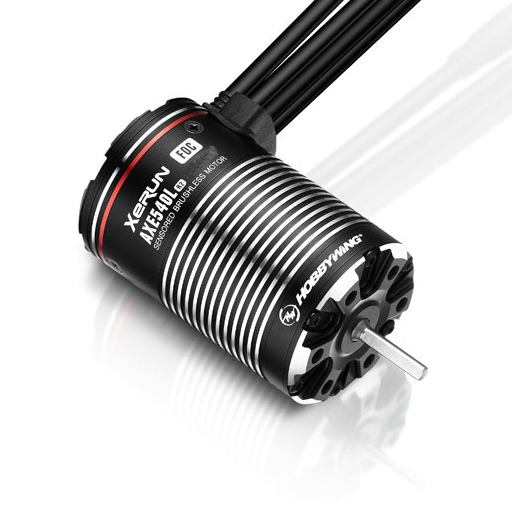

Hobbywing 30401253 Motor XeRun AXE540L R2 1400kV FOC

Hobbywing XeRun AXE540L R2 Sensored Crawler Motor 1400KV

Applicable to All Weather & Track Conditions
Waterproof has been taken to a new level with the Axe System. Completely sealed ESC design with robust heatsink case design ensure the ESC is ready for anything you throw at it. The motor as well, is sealed, and combines a completely new sensor harness. No messy extra steps to make your system water proof. (Note: please dismantle and clean the motor and put some lubricant onto the bearings after using it in some harsh conditions.)

Built-in High-precision Magnetic Encoder
A high precision magnetic encoder is used in the motor to ensure precision and consistent information is provided to the ESC. This allows the ESC to have more information from the motor than standard “hall” type sensors and provides improved performance and efficiency.

Low Cogging Torque
The AXE R2 Motors have the extremely low cogging effect and torque pulsation.

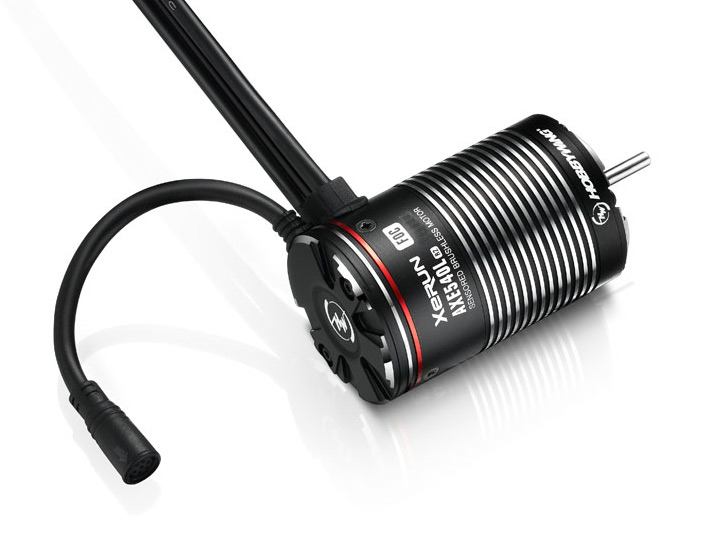

New Waterproof Sensor Port
The brand new design of new waterproof sensor port has smaller size. Its wiring is simpler and more beautiful than AXR R1 system.

Specs:

• Applications: 1/10 Crawlers
• Type: Brushless/Sensored
• Compatibility: Use only with the AXE R2 ESC
• Pole Count: 4
• KV Rating: 1400
• LiPo cells: 2-3S
• No Load: 1.7A
• Diameter: 36mm
• Length: 57.8mm
• Shaft Diameter: 3.175mm
• Weight: 232g
