Saito FG-30B 30cc 4-takts Bensinmotor
8 795 SEK/styck
- Står det "Beställningsvara", maila oss så kollar vi upp leveranstiden!
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
Beskrivning
Art.nr: MC_SAFG-30B

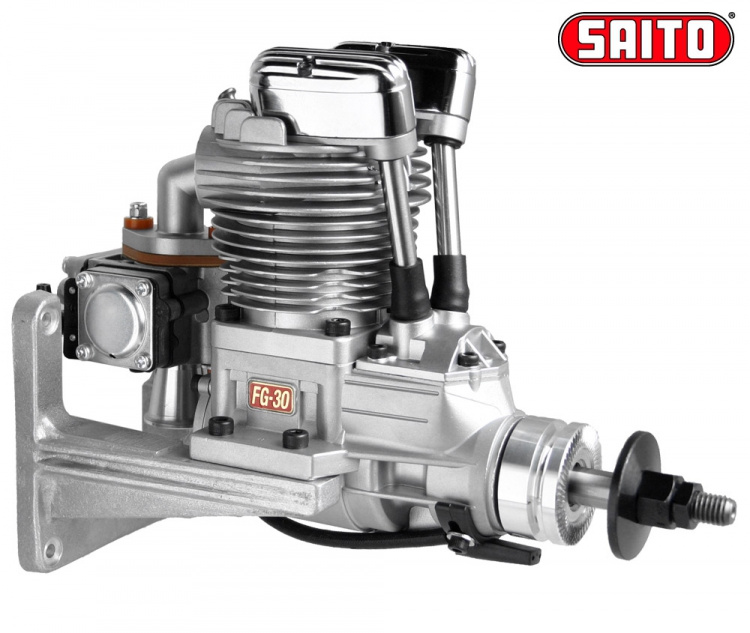

Saito FG-30B - 30cc 4-Stroke Gas Engine
SAITO FG-30B is the new model modified from FG-30 with new ignition system, crank case, and drive flange. The dimensional drawing is just the same as FG-30.Specs:
- Displacement: 29.11 cc
- Applications: 4-stroke glow 1.20-1.80 class
- Bore: 36.0 mm
- Stroke: 28.0 mm
- Motor weight: 1055 g
- Muffler weight: 85 g
- Ignition system weight: 158 g
- Engine mount weight: 190 g
- Practical RPM: 1700-9000
- (Max RPM on Ground (stationary): 9000-10.000)
- Propeller: APC 16x8" - 18x8"
- Static thrust: with APC 18x8" = 5 kg, APC 16x10" = 5.3 kg, APC 17x6 = 5.8 kg & APC 17x8" = 5.3 kg
- Fuel: Regular gasoline & oil = 20:1-30:1 (volume ratio)
- Fuel consumption: aprox 25 cc/min (@ full throttle 8500 rpm)
- Battery for ignition system: 4.8-6V with more than 1Ah is recommended
Recommended gasoline fuel oil:
- Klotz Original TechniPlate®
- Klotz R/C Modelube®
Thrust info:
- Engine: FG-30B
- Propeller: 18x8
- Static Thrust: 5.8kg
- Max weight for hover capability: 5.8kg
- Rec. Max weight for sportsman flying: 8.28kg
- Max weight for possible take-off: 11.6kg
- VarumärkeSaito
