RB Products 02013-008 Automatic Damping System set compatible XRAY XB9 SP

Front:
Height: 38.50mm
Outer tube diameter: 15.95mm

Rear:
Height: 43.60mm
Outer tube diameter: 15.95mm

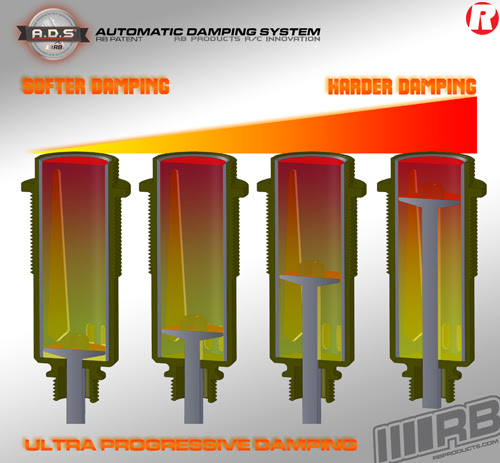

Developed in close collaboration with Italian company Fioroni for two years, RB are proud to release a new innovated shock system that makes your shock absorber ultra progressive with automatic harder damping. ADS uses a special V design sleeve combined with a CNC piston without holes that allows the oil goes up and down with an ultra progressive oil flow. This is how it works:

Compression – the piston is at the bottom position. At the beginning, the V shape is big and the damping is soft. When the piston goes up into the shock body, the V shape becomes smaller and the damping becomes harder. The damping is ideal during the piston travel.

Extension – the piston is at the upper position (small V size area) and the damping is hard. When the piston goes down, the V shape becomes larger and the oil flow is increased which lets the piston return quicker to its bottom position.

The actual big bore shock absorbers are better for damping, but become less reactive because of the diameter of the pistons and large amount of oil flow. With ADS, the sleeve reduces the inside diameter and it makes the piston travel becomes more reactive too.
