Savöx SW-0230MG Servo 8Kg 0,13s HV Metalldrev WP

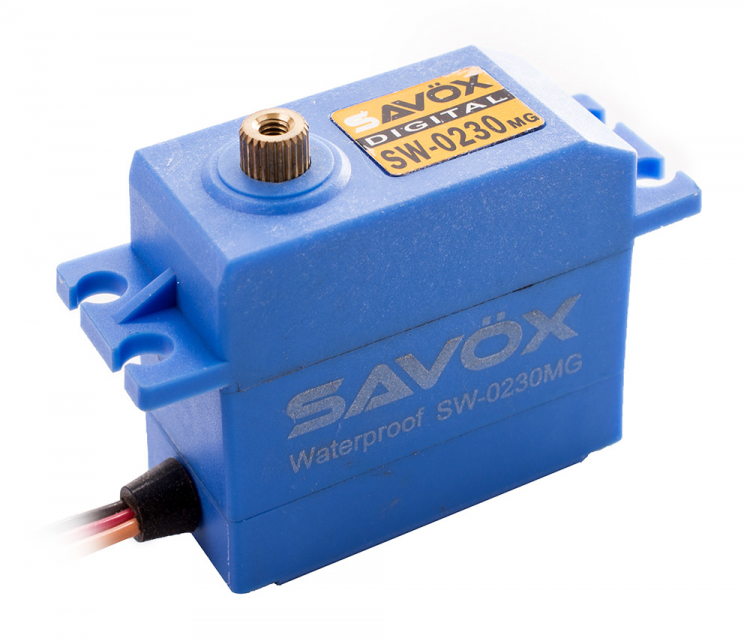

SAVÖX SW-0230MG - Water Proof High Voltage Metal-Geared Standard-Sized Servo

The SW-0230MG is a budget friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if your looking to drive your RC vehicle in any condition - rain or snow.

Features:

• Strong metal gear train for added durability
• Waterproof case design
• Capable of HV operation
• Ideal for cars, truck, and boats subject to water or snow

Specifications:

• Torque @ 6V: 6.5kg/cm
• Torque @ 7.4V: 8kg/cm
• Speed @ 6V: 0.16 sec/60 deg
• Speed @ 7.4V: 0.13 sec/60 deg

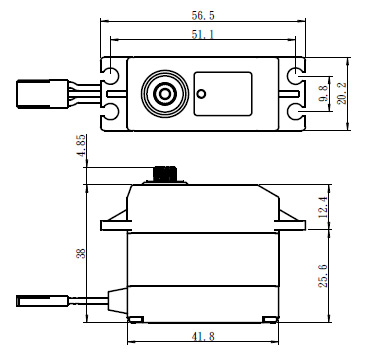

• Dimensions L x W x H: 41.8 x 20.2 x 38mm
• Weight: 60g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 100mA @6.0V, 120mA @7.4V
• Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
